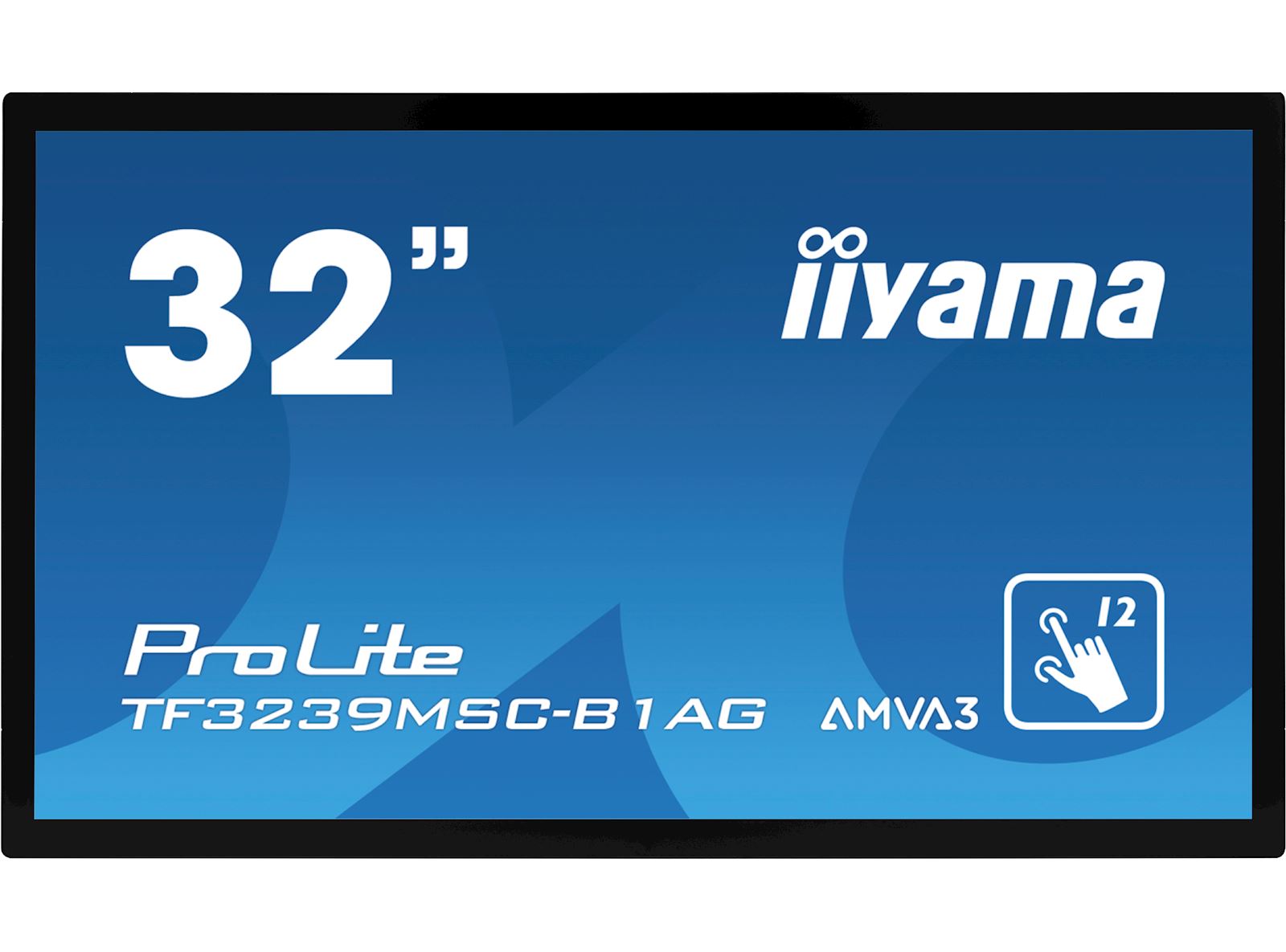

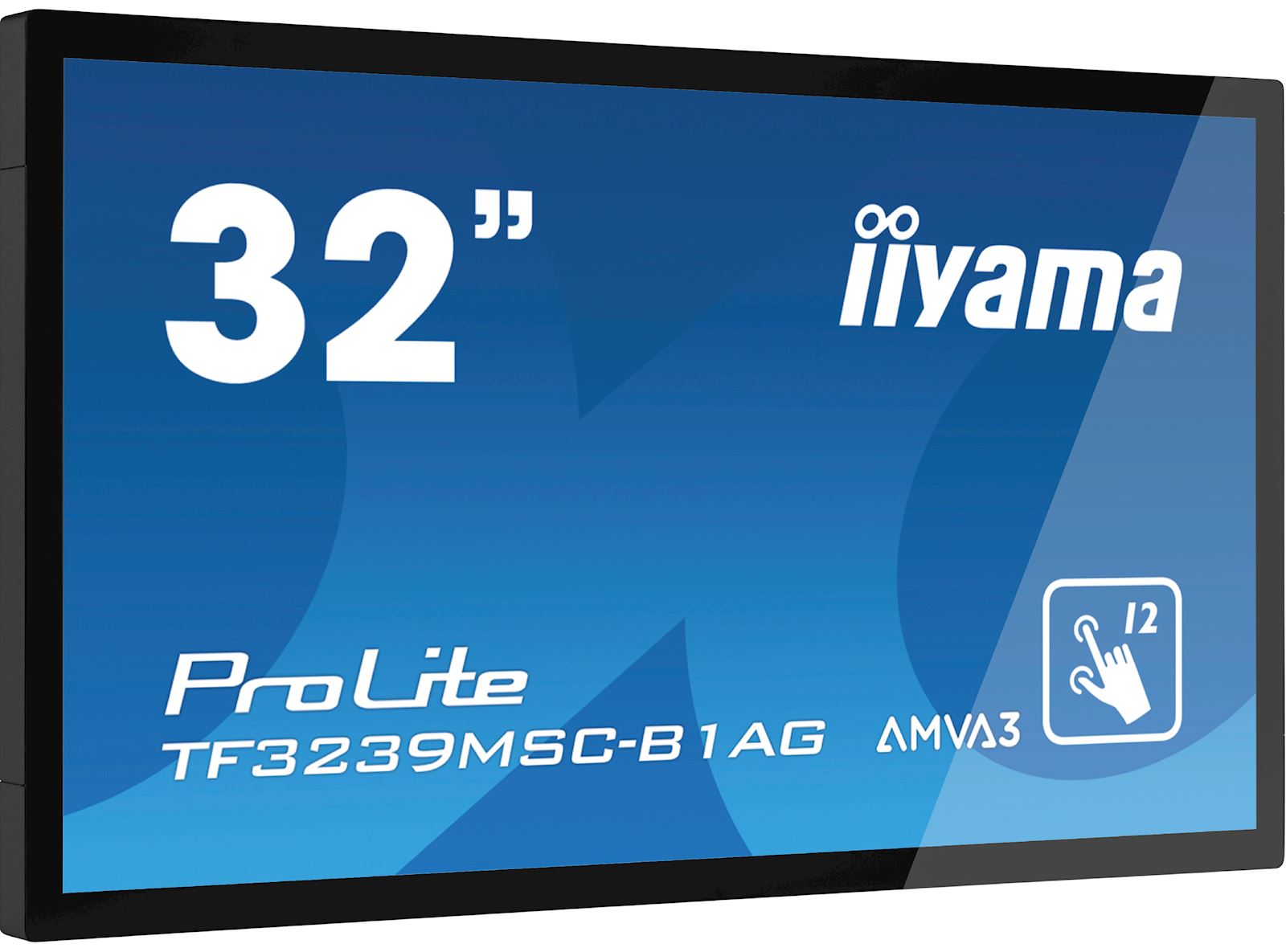

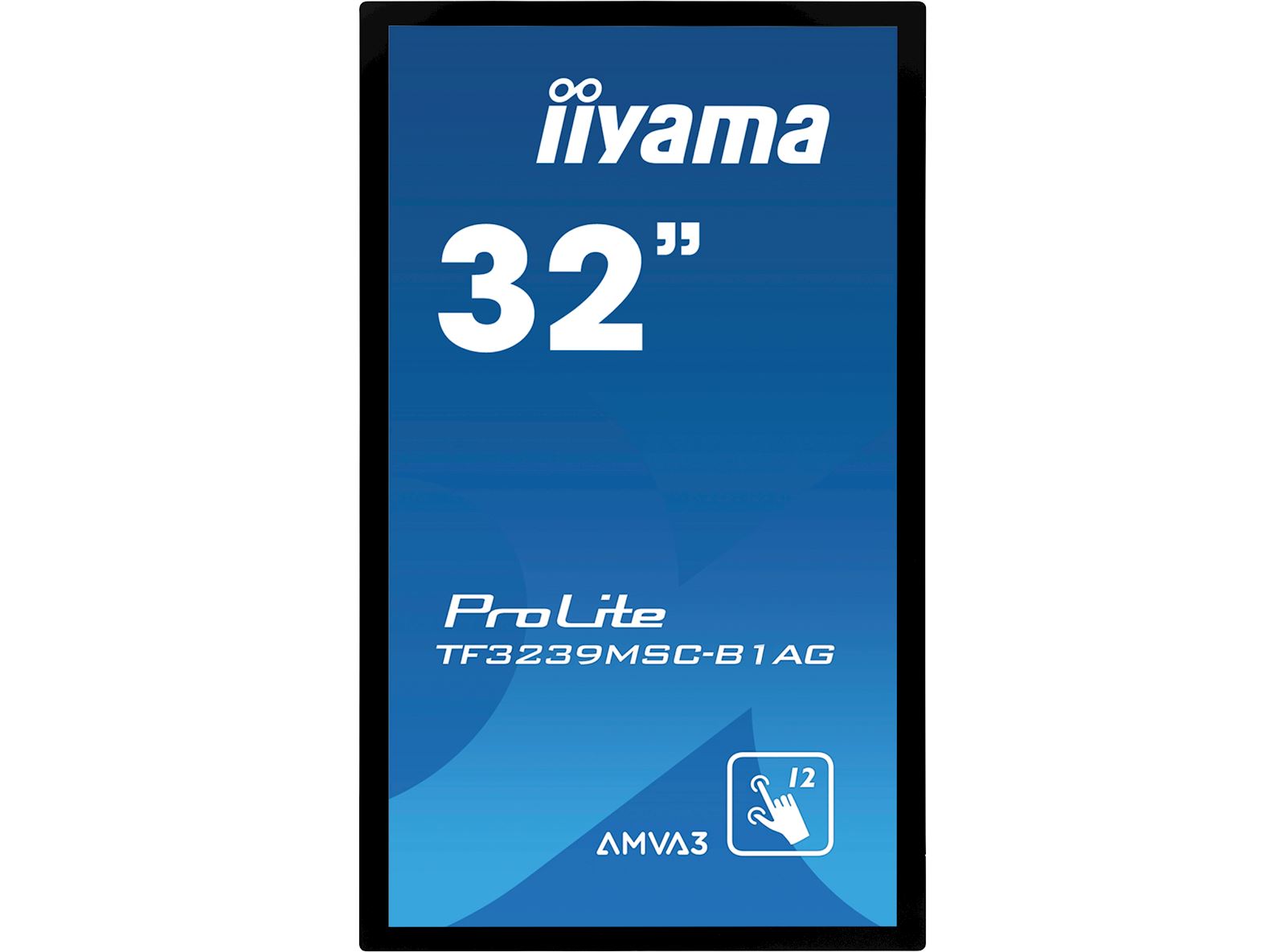

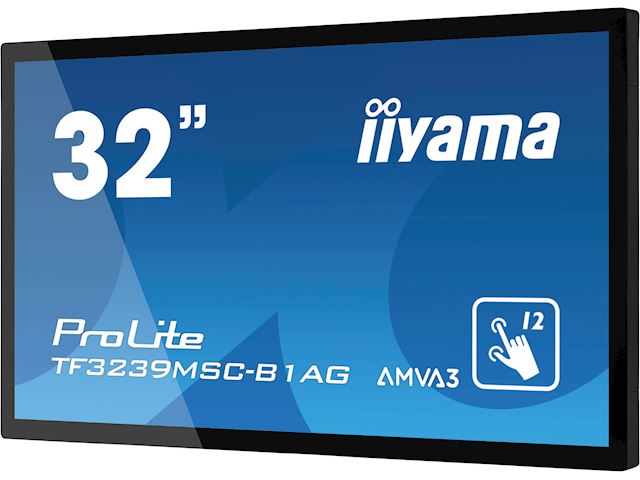

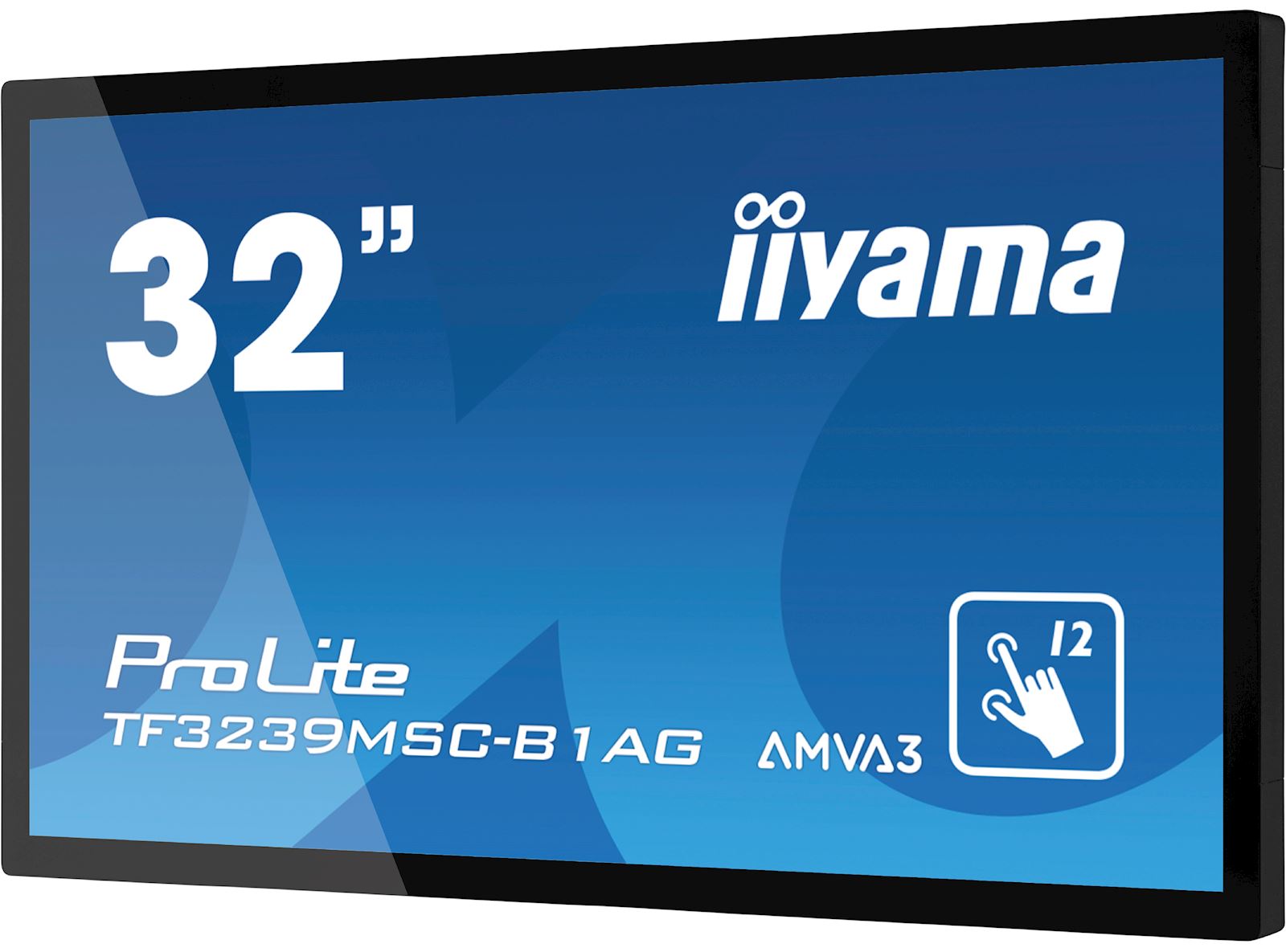

iiyama Prolite monitor TF3239MSC-B1AG 32" Black, AMVA, Anti Glare, Full HD, Projective Capacitive 12pt Touch, 24/7, Landscape/Portrait/Face-up, Open Frame.

£863.90 exc. VAT
£1,036.68 inc. VAT

Brand: iiyama

Manufacturer Code: TF3239MSC-B1AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

32" 12pt Open Frame PCAP interactive large format display

The Full HD (1920x1080) TF3239MSC Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. The Projective Capacitive (PCAP) touch technology with 12 touch points ensures a seamless and accurate touch response. Thanks to the touch-through-glass technology it’s possible to turn glass surfaces into touchscreens. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets (OMK4-4) making it an ideal solution for kiosk integrators and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

Design Edge to edge glass, Open Frame
Diagonal 31.5", 80cm
Panel AMVA3 LED, Anti-glare coated glass
Native resolution 1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 500 cd/m² typical
Brightness 420 cd/m² with touch
Static contrast 3000:1 typical
Light transmittance 84%
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 83kHz
Viewable area W x H 698.4 x 392.8mm, 27.5 x 15.5"
Pixel pitch 0.3637mm
Bezel colour and finish black, matte
Reommended usage retail, education

TOUCH

Touch technology projective capacitive
Touch points 12 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

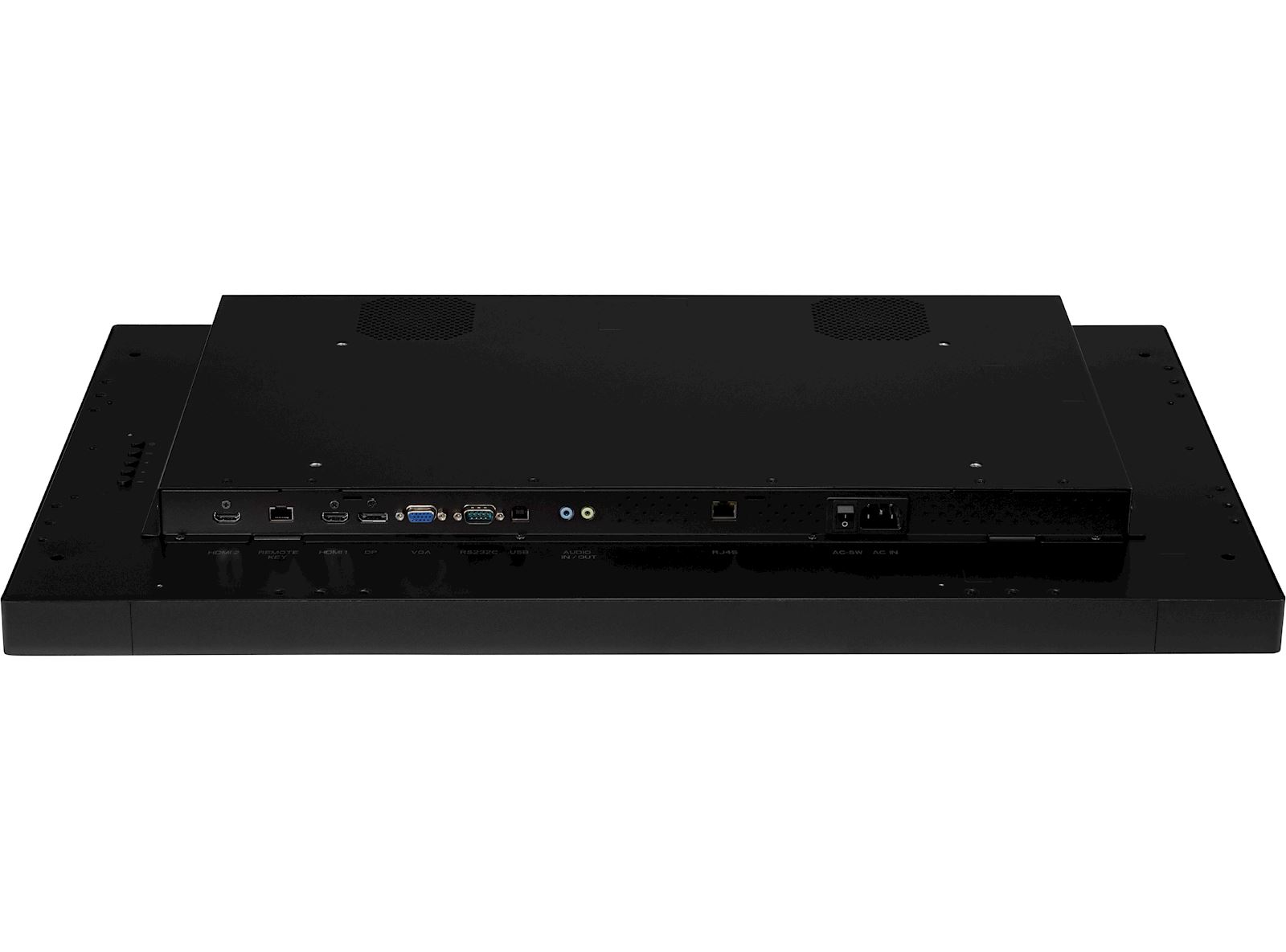

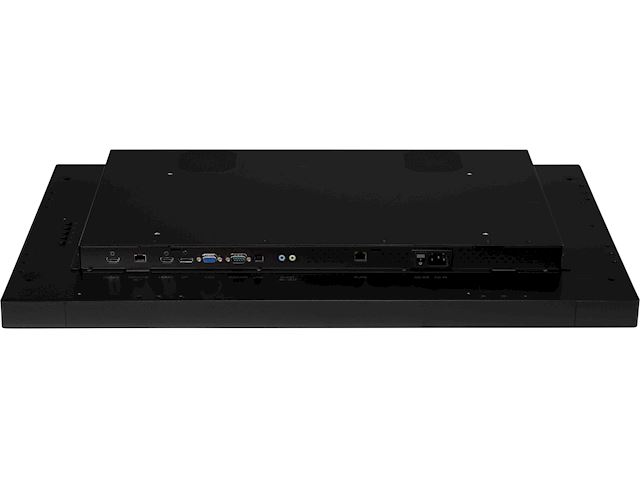

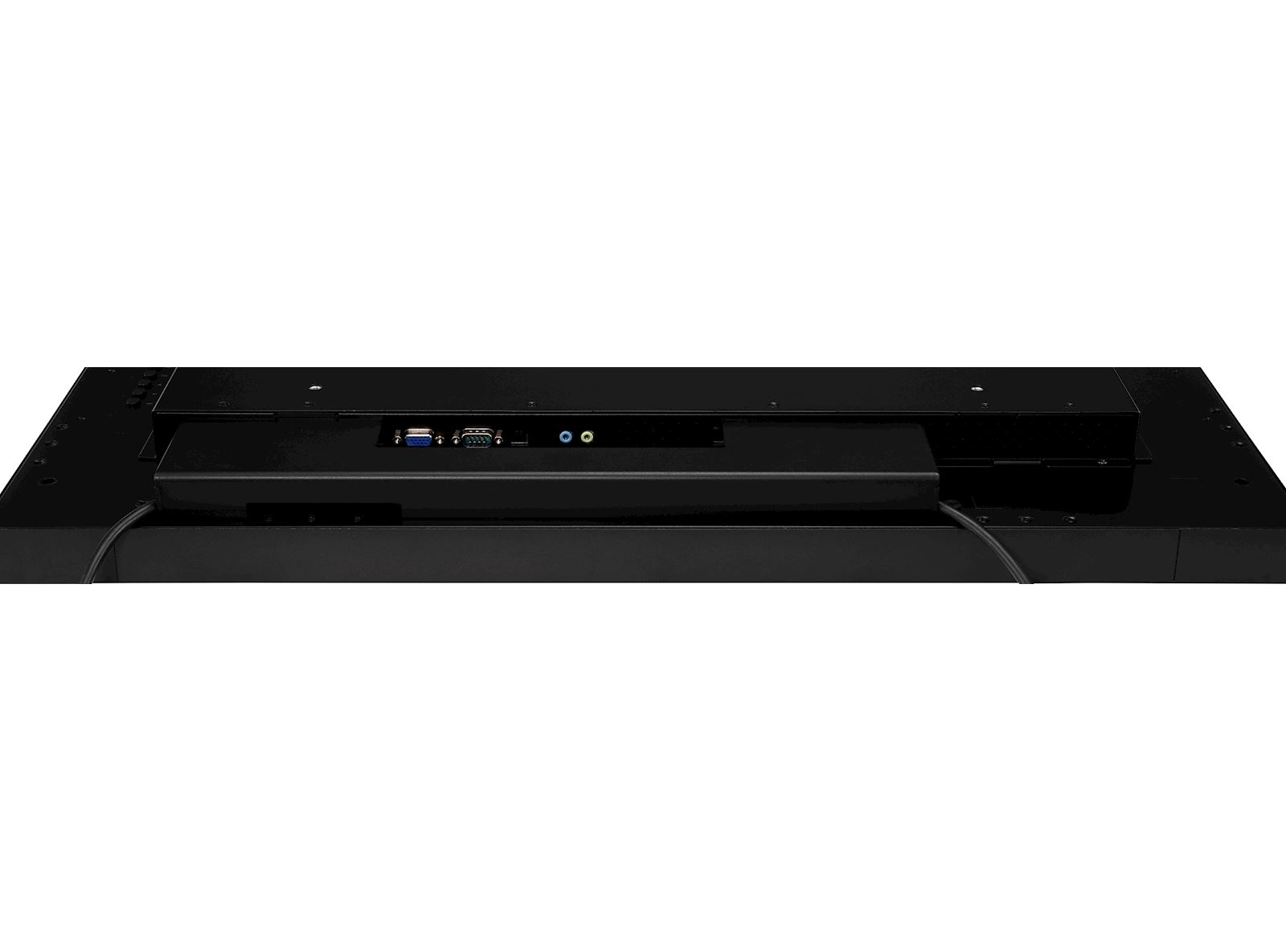

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x2
DisplayPort x1
Audio input Mini jack x1
Monitor control input

RS-232c x1
RJ45 (LAN) x1

USB x 1

Audio output Mini jack x1
Speakers 2 x 8W
HDCP yes

FEATURES

Extra touch through-glass, temperature sensor with fan control
Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 2mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP54 (front)
Housing (bezel) metal
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, NL, PL

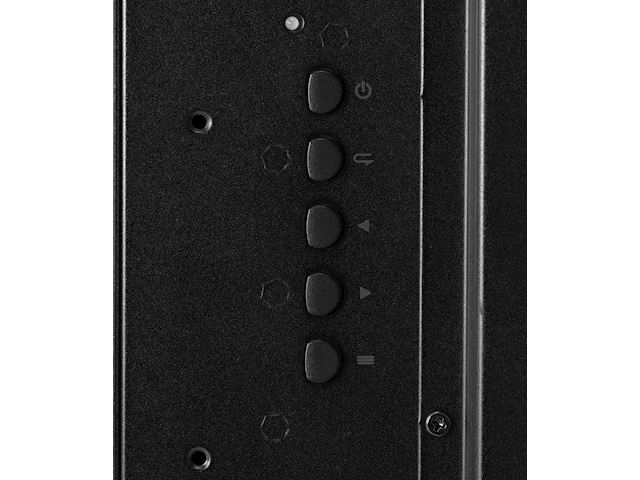

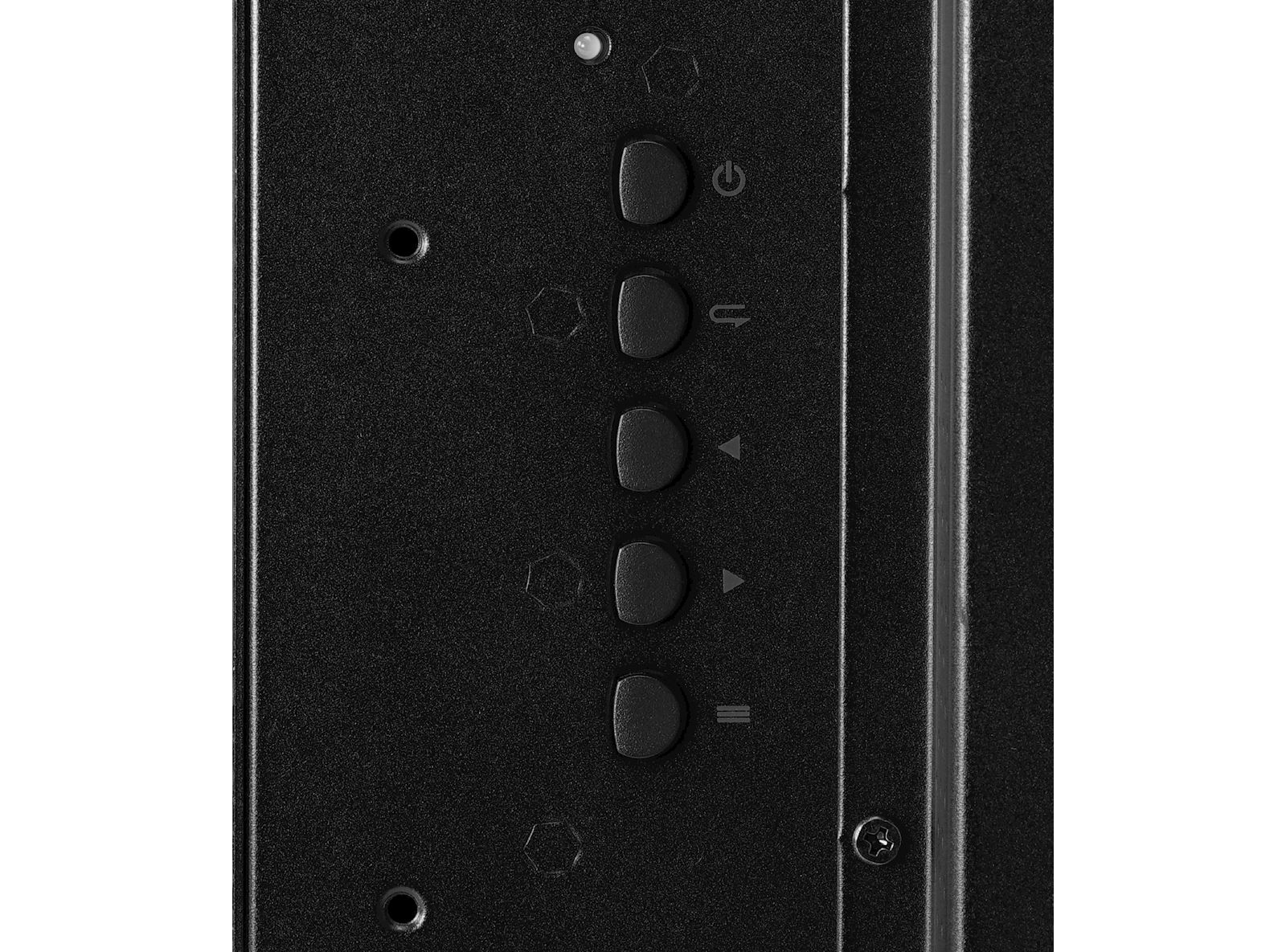

Control buttons Power, menu, exit, up, down
User controls picture (picture mode, backlight, contrast, brightness, chroma, phase, sharpness, color temperature, reset), sound (treble, bass, balance, volume, mute, speaker, audio source, reset), screen (aspect, adjust screen, touch feature, touch switch), setting (language, schedule, power save, control settings, network settings, advanced), setting (advanced, information, all reset)
Plug&Play DDC2B

MECHANICAL

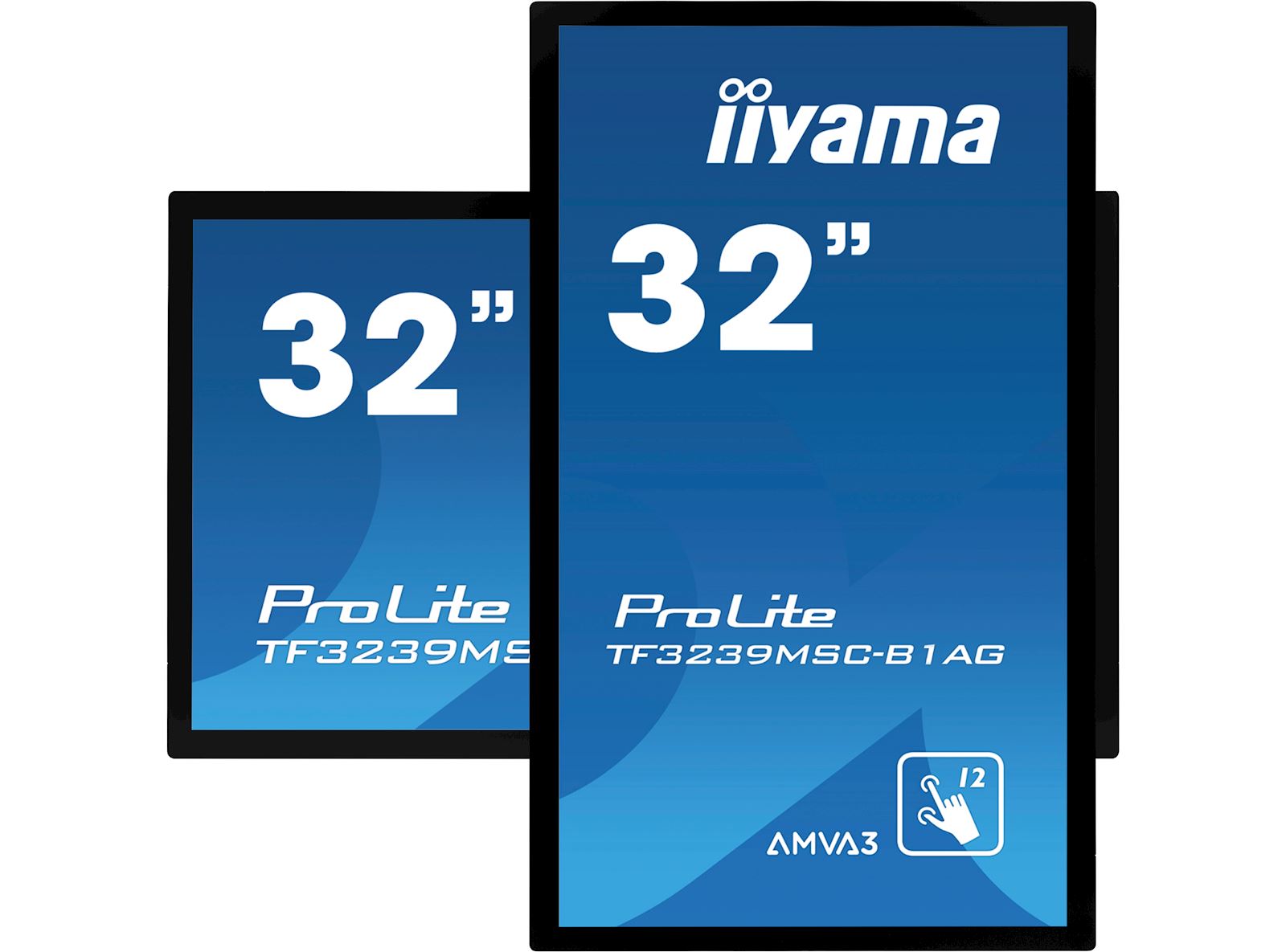

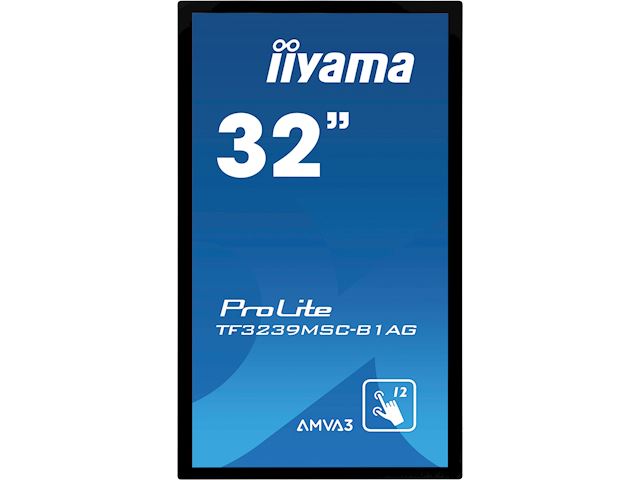

Orientation landscape, portrait, face-up

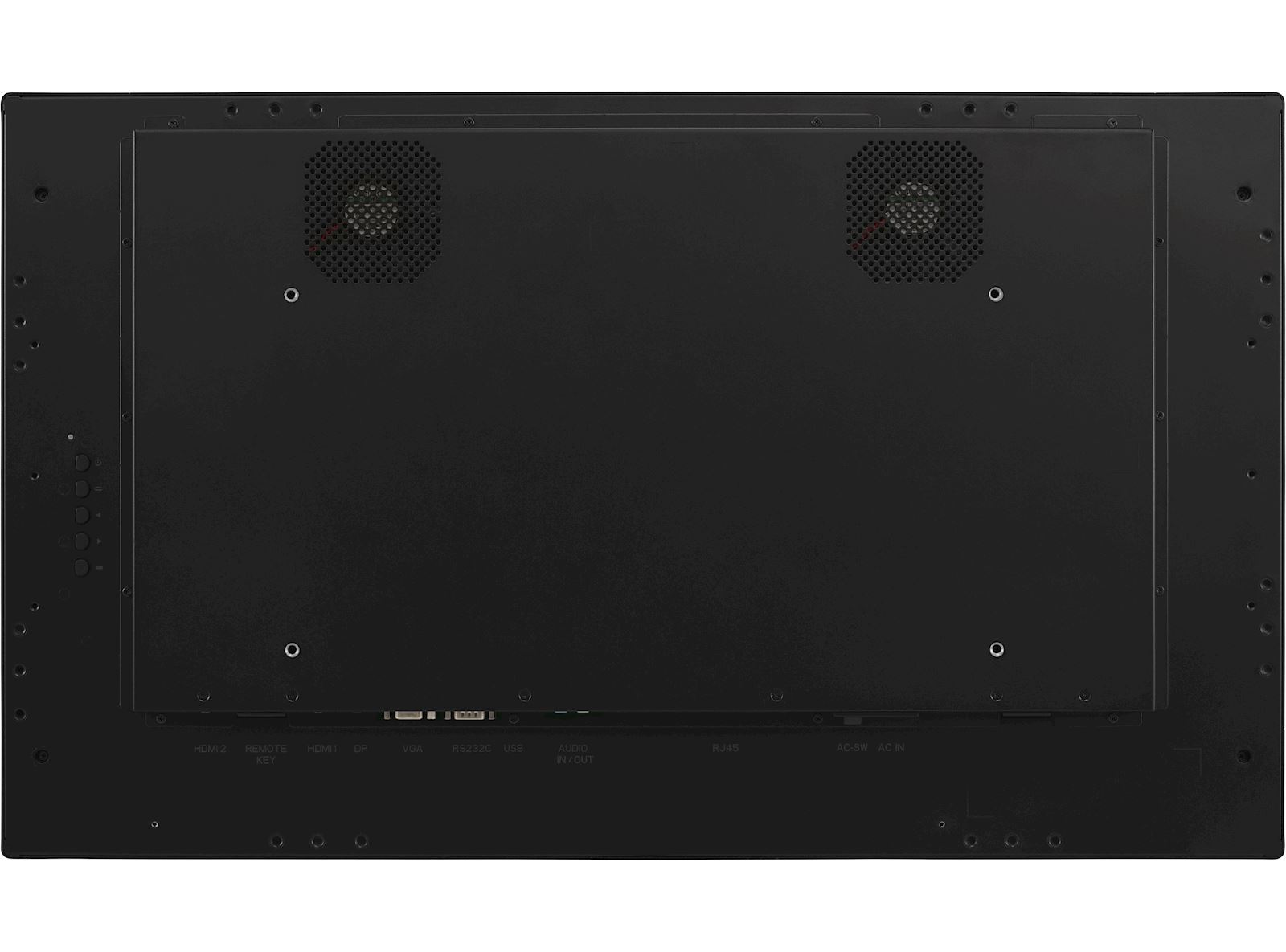

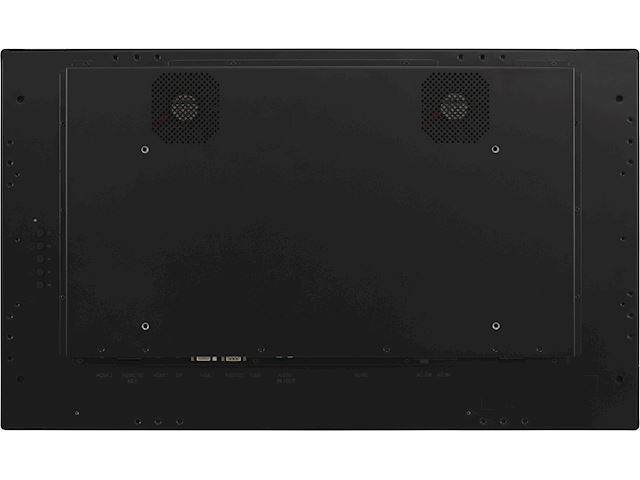

VESA mounting 400 x 200mm
Mini PC mount NUC INTEL
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50000 hours

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide

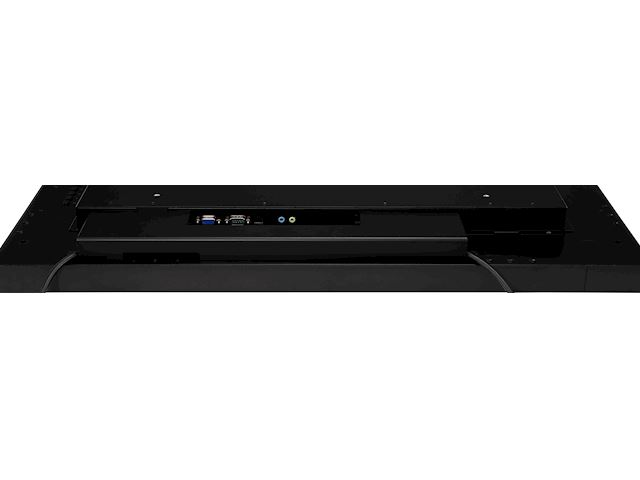

Cable cover yes

POWER MANAGEMENT

Power supply unit internal
Power supply AC AC - 100V, 240/V, 50Hz
Power usage 60W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

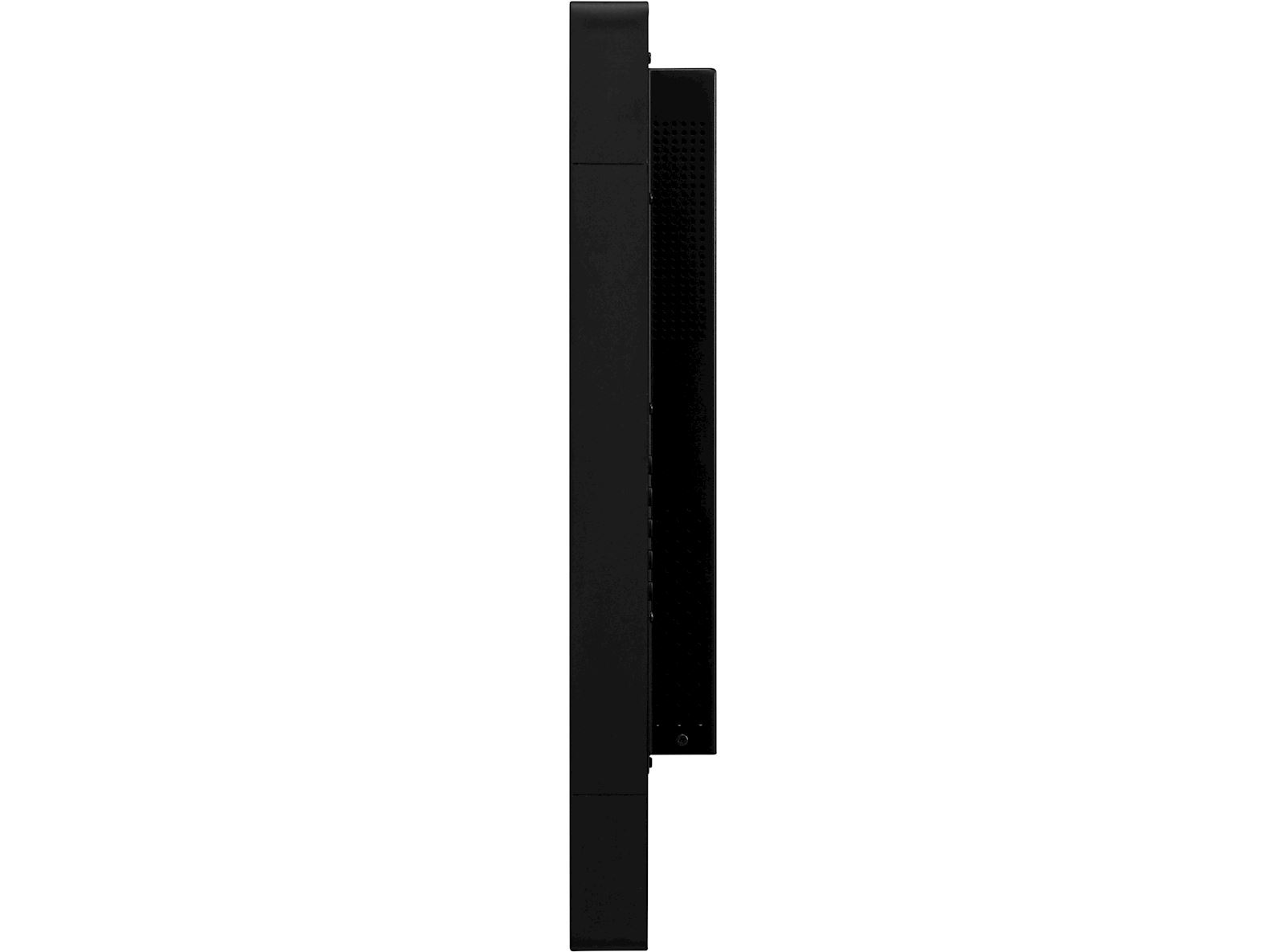

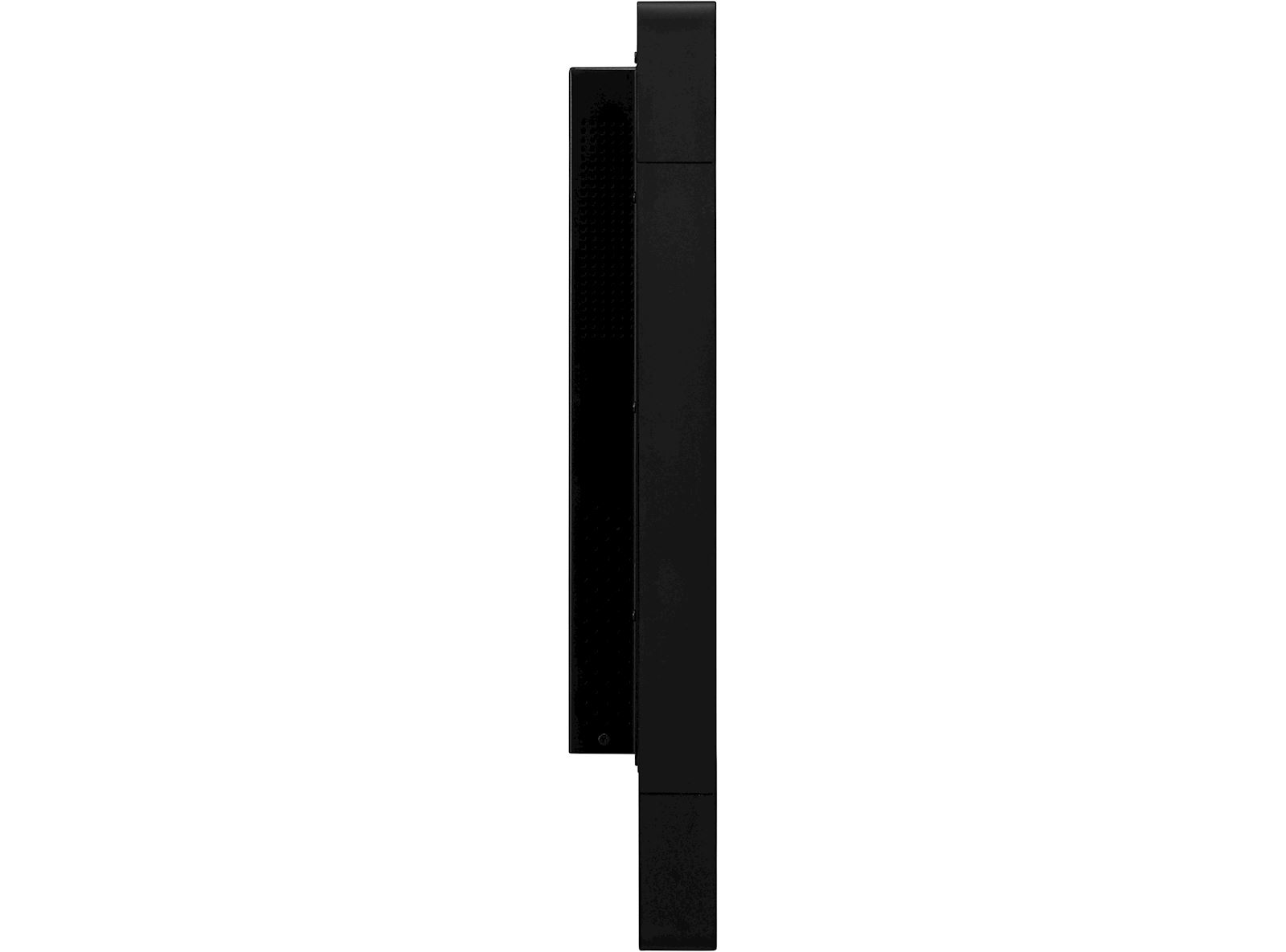

Product dimensions W x H x D 738.7 x 439,9 x x 67mm
Box dimensions W x H x D 187 x 590 x 900mm
Pallet volume 18pcs
Weight (without box) 13.4kg
Weight (with box) 17.2kg
EAN code 4948570118021
Features

FULL HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.


FULL HD

24/7

24/7 displays are designed for a continuous operation.



24/7

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

OPEN FRAME LFD

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME LFD
