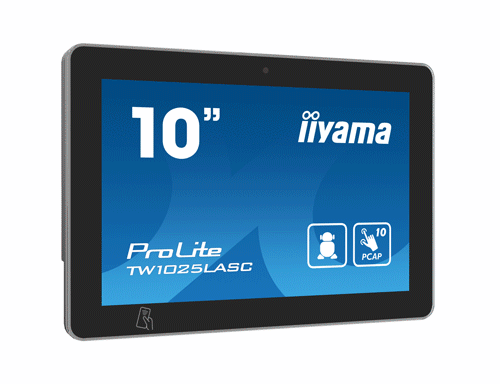

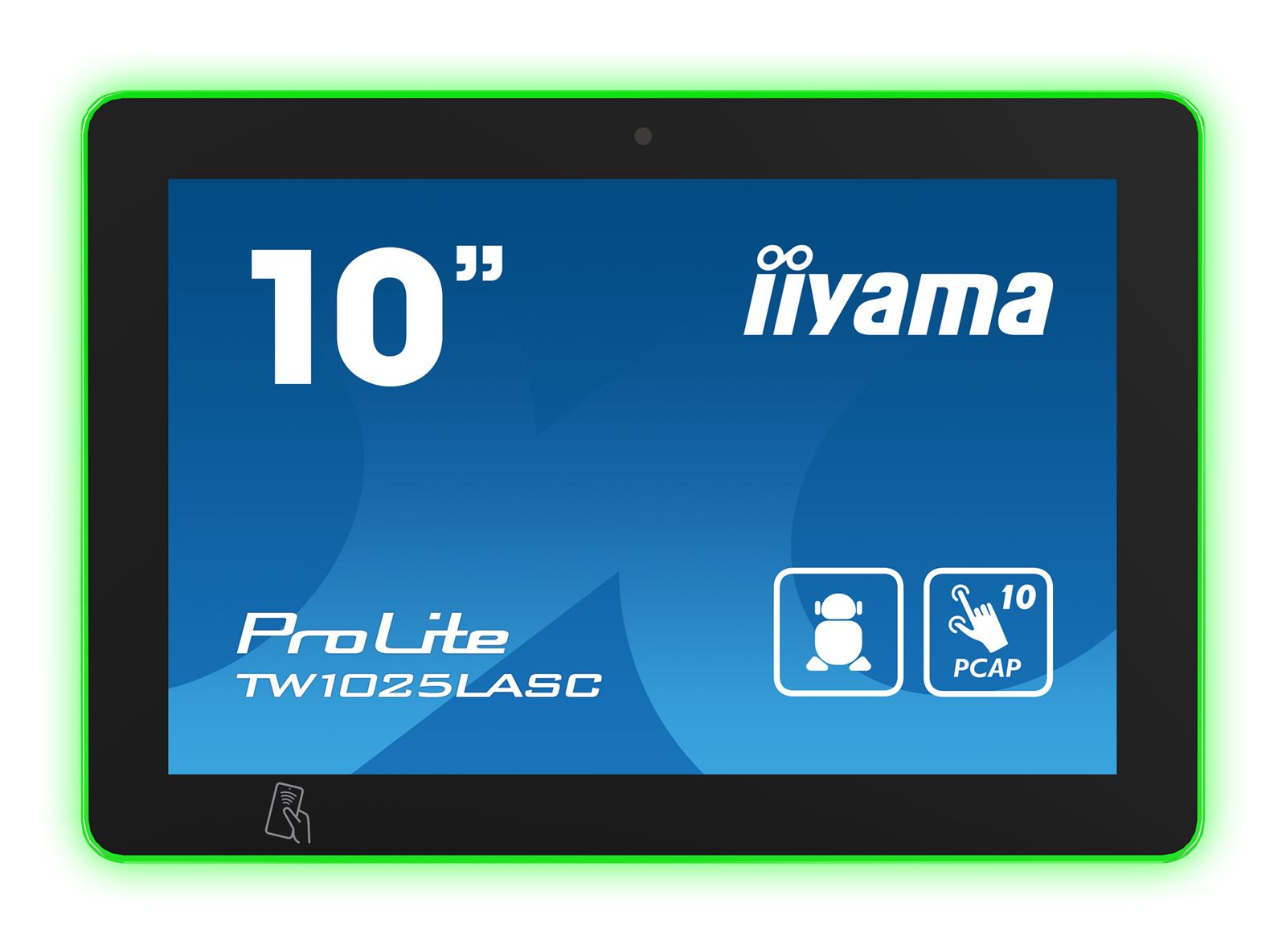

iiyama ProLite TW1025LASC-B1PNR, 10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology, Webcam/Mic, NFC/RFID reader and RGB LED bar

Name: iiyama ProLite TW1025LASC-B1PNR, 10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology, Webcam/Mic, NFC/RFID reader and RGB LED bar
Brand: iiyama
SKU: TW1025LASC-B1PNR
Price: 242.88 GBP
Availability: InStock

iiyama ProLite TW1025LASC-B1PNR, 10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology, Webcam/Mic, NFC/RFID reader and RGB LED bar image 0

£202.40 exc. VAT

£242.88 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TW1025LASC-B1PNR

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

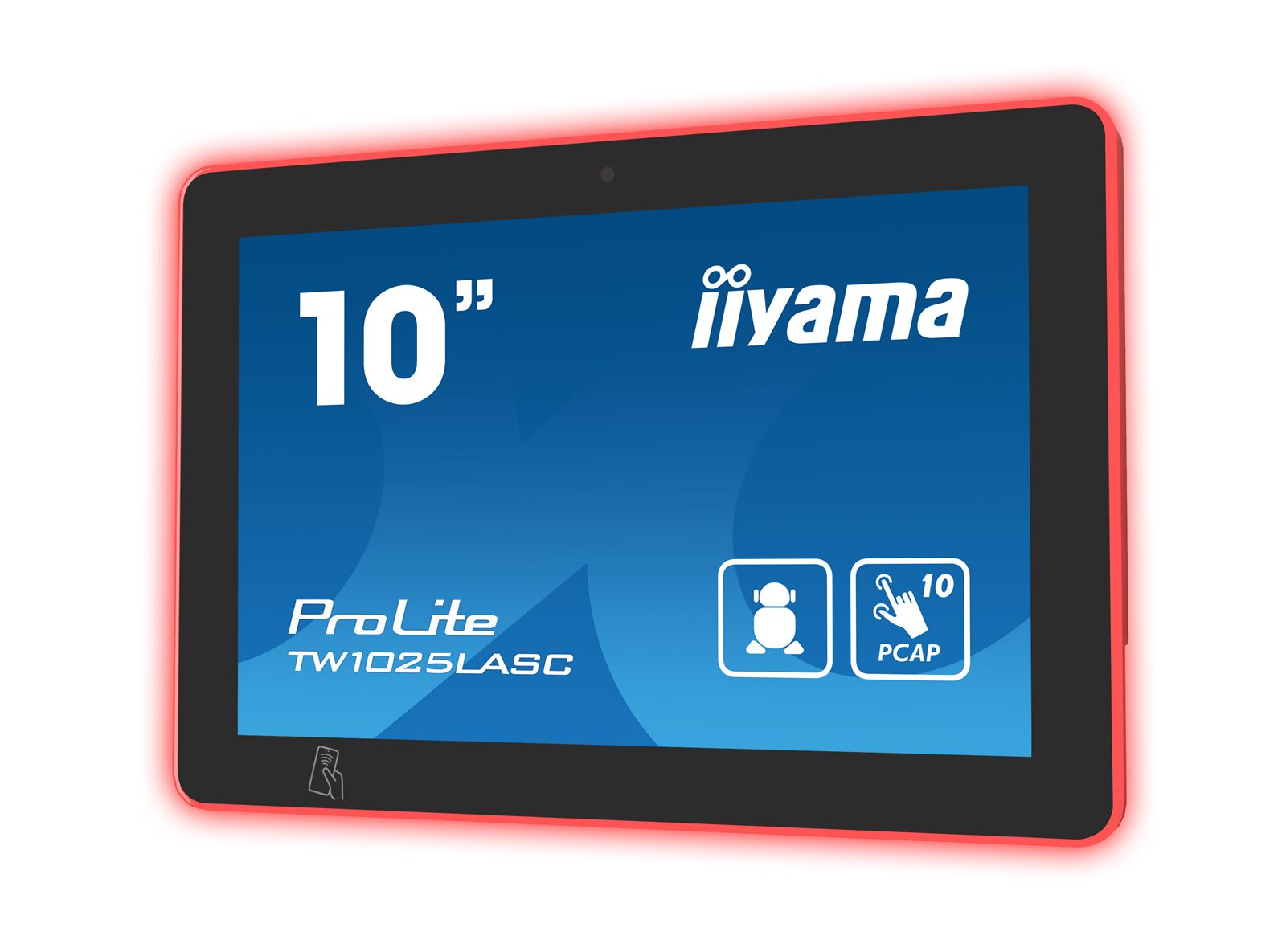

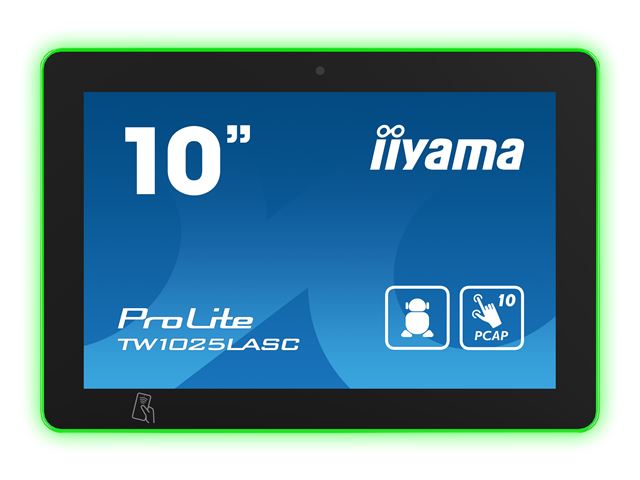

10.1” PCAP 10pt touch screen with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen

The ProLite TW1025LASC-B1PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations.

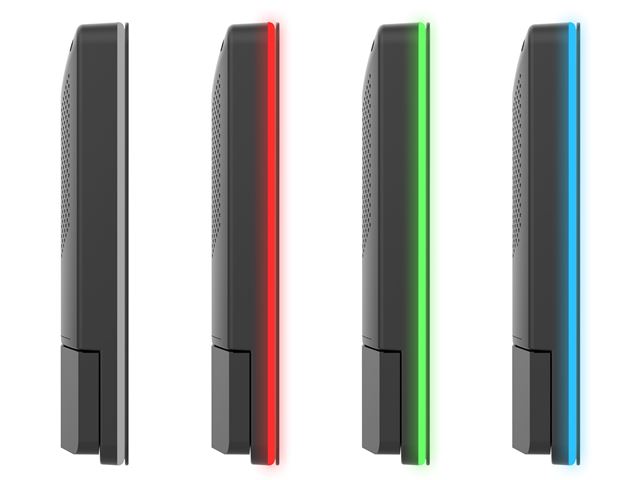

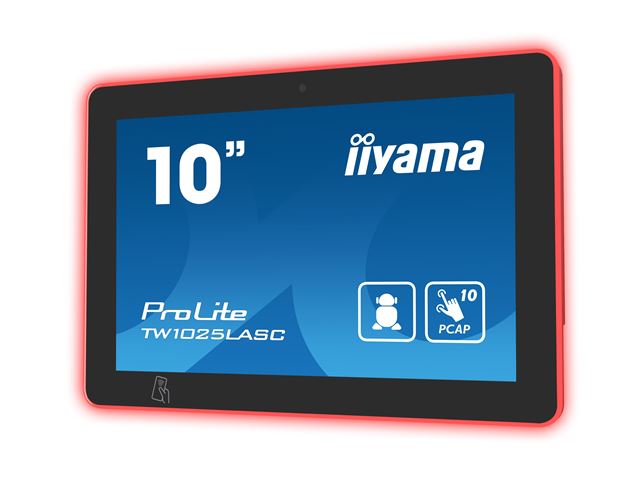

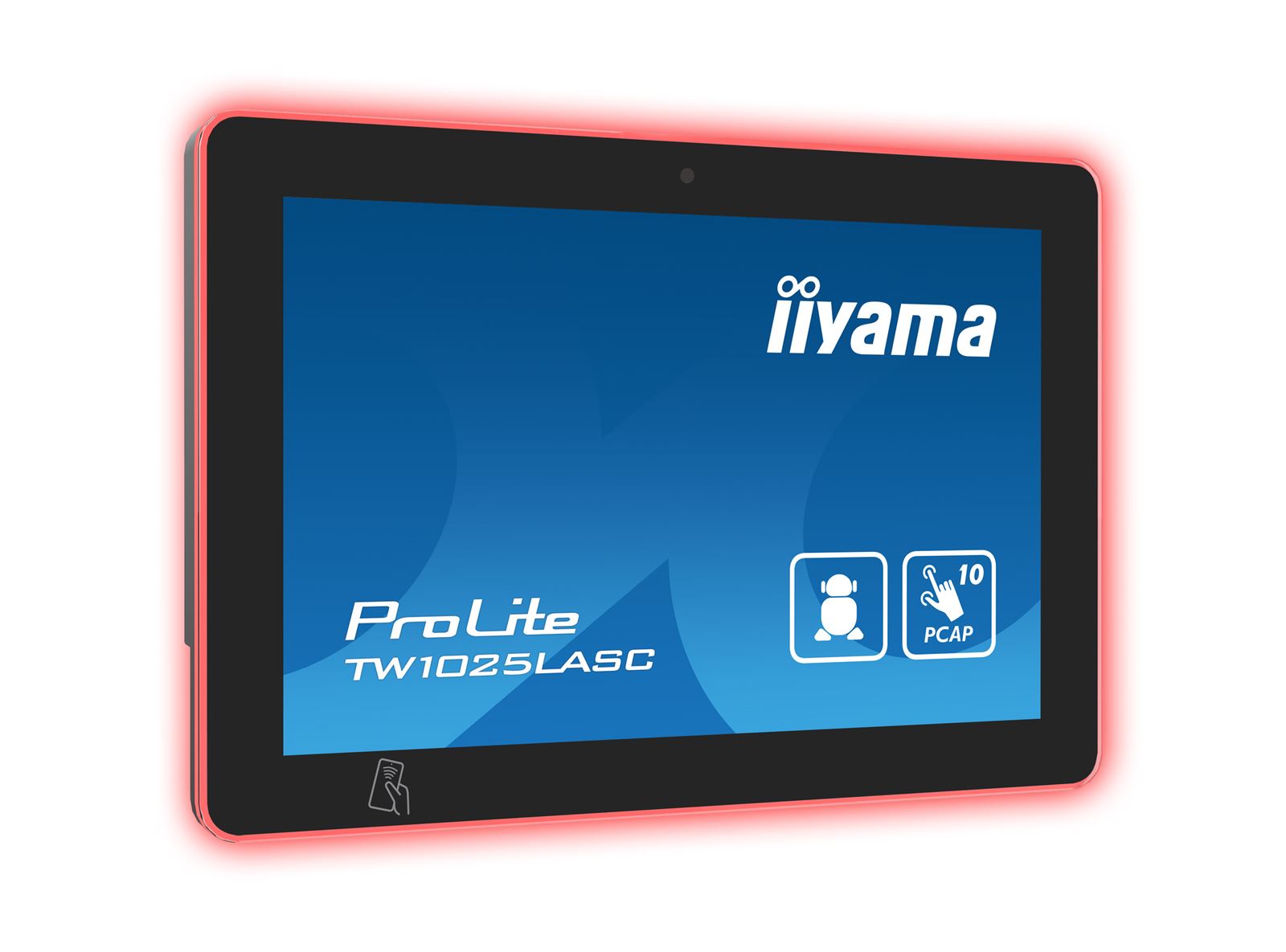

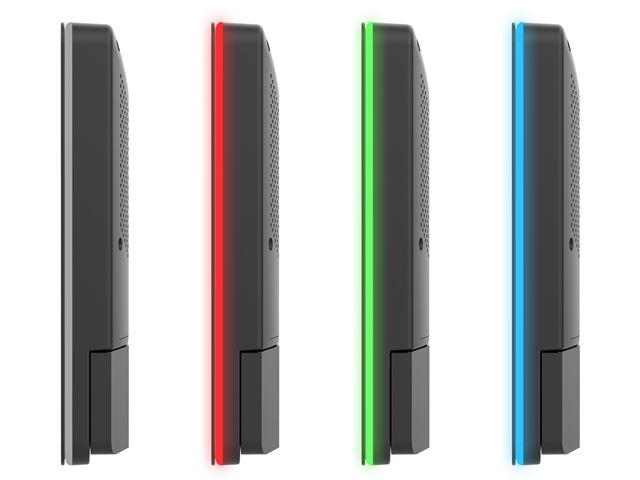

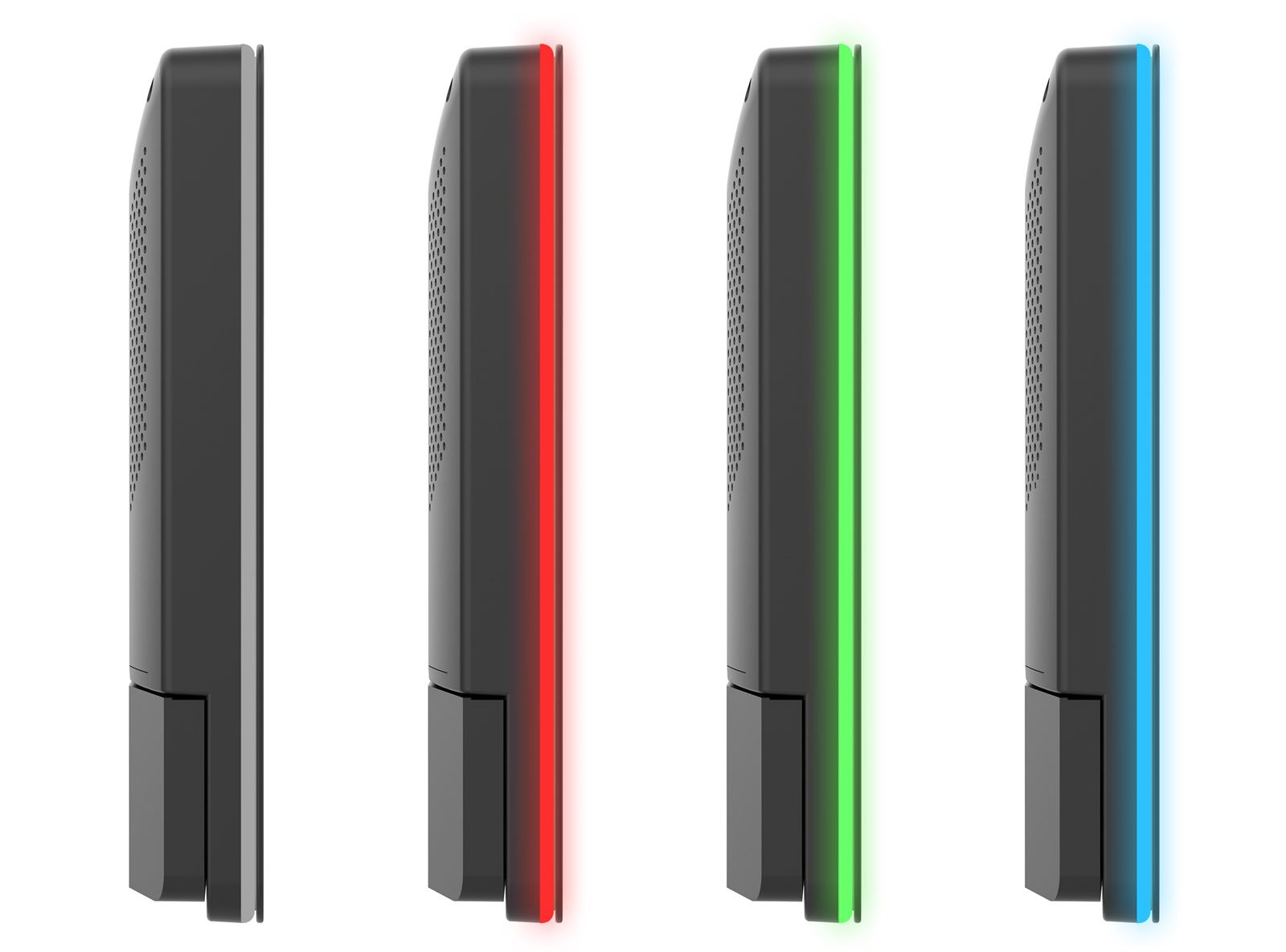

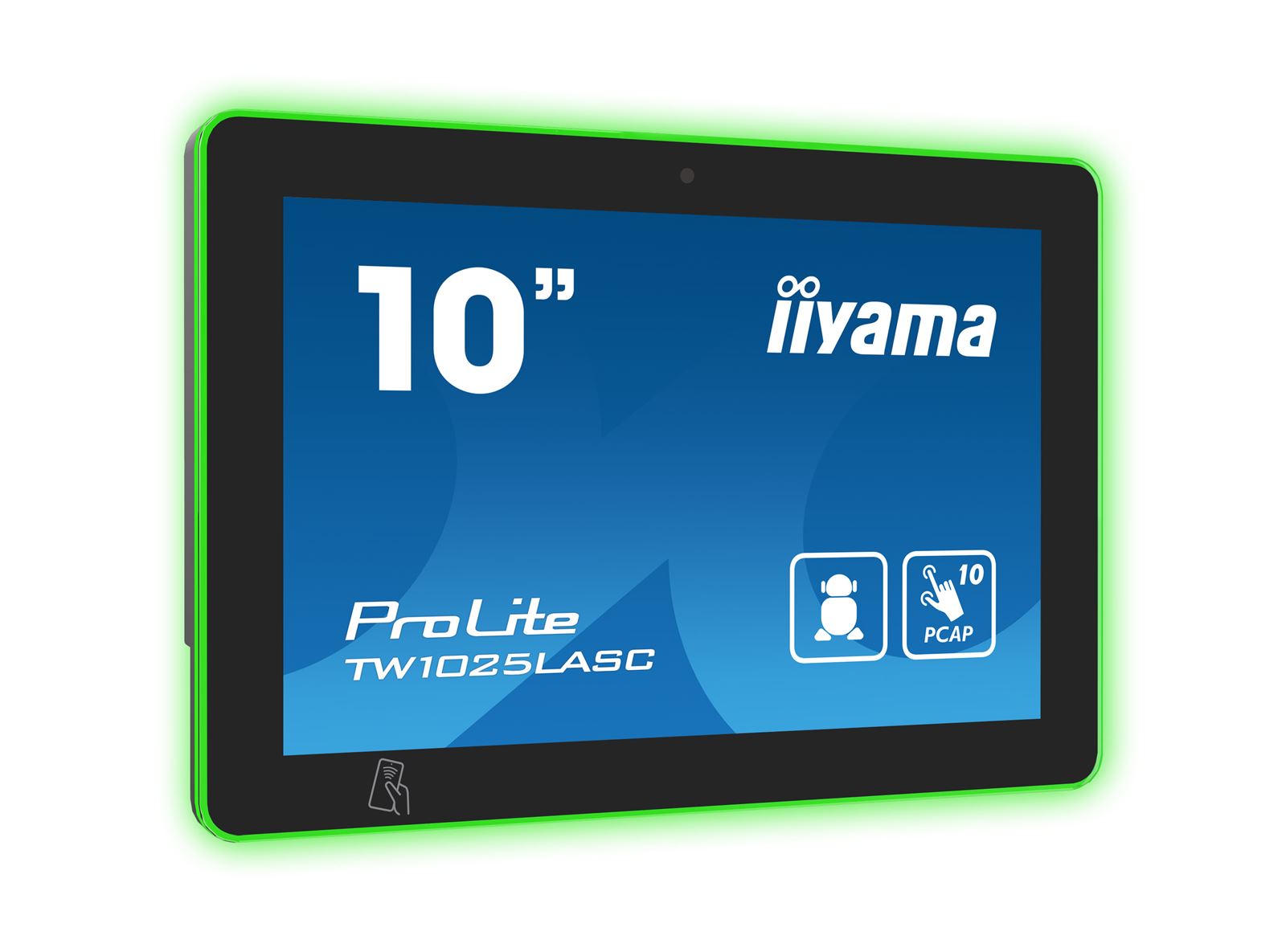

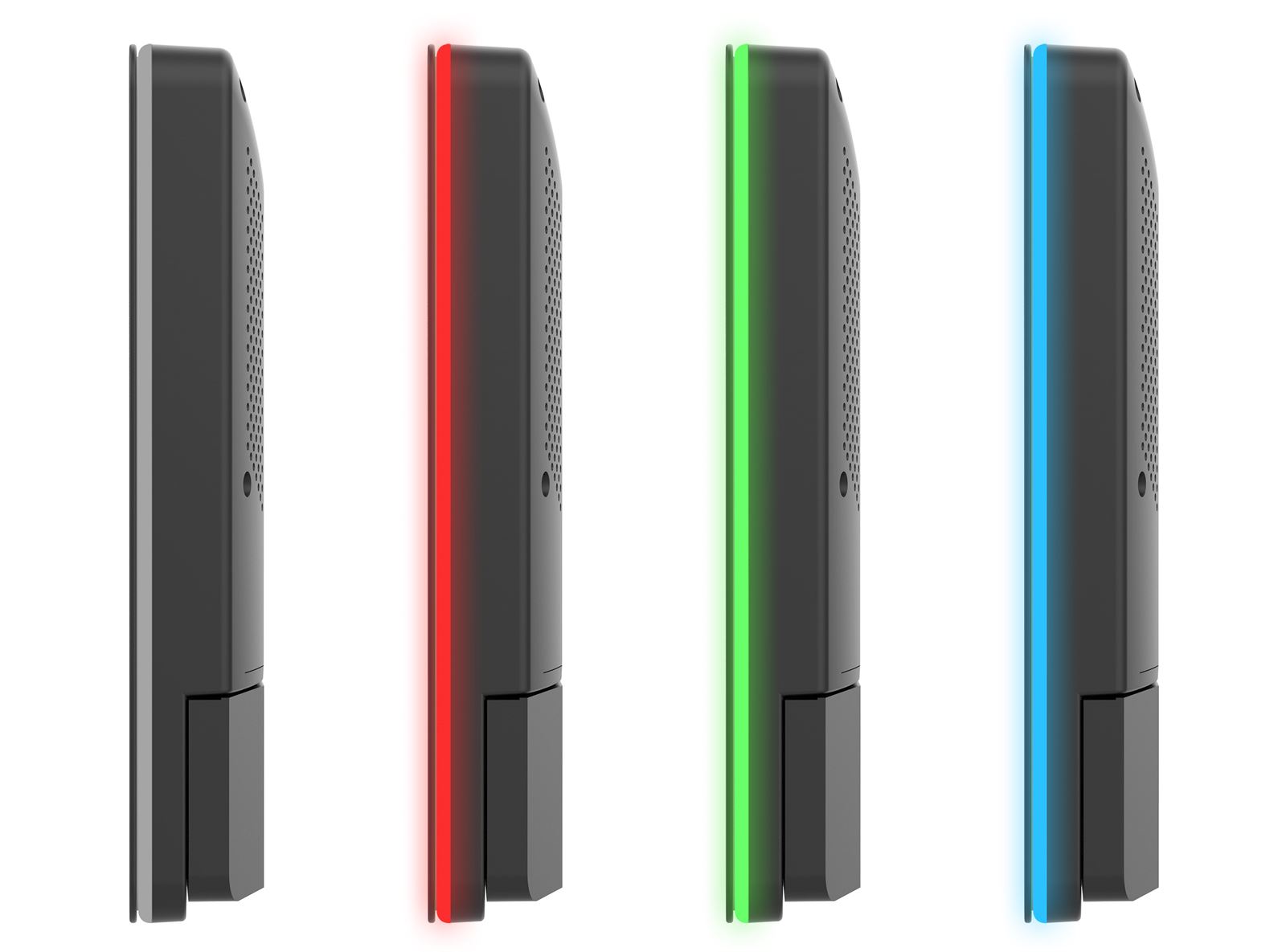

Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Technical Information

DISPLAY CHARACTERISTICS

Design	Edge to edge glass
Diagonal	10.1", 25.5cm
Panel	IPS Panel Technology, LED
Native resolution	1280 x 800 (1 megapixel HD)
Aspect ratio	16:10
Panel brightness	450 cd/m²
Brightness	390 cd/m² with touch
Light transmittance	86%
Static contrast	1000:1 with touch
Response time (GTG)	25ms
Viewing zone	horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Viewing zone CR>5	horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Colour support	16.7mln 8bit
Viewable area W x H	218.4 x 137.2mm, 8.5 x 5.4"
Pixel pitch	0.1692mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB

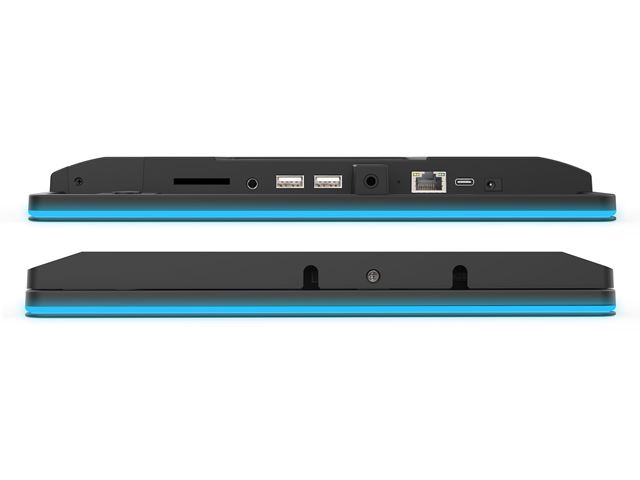

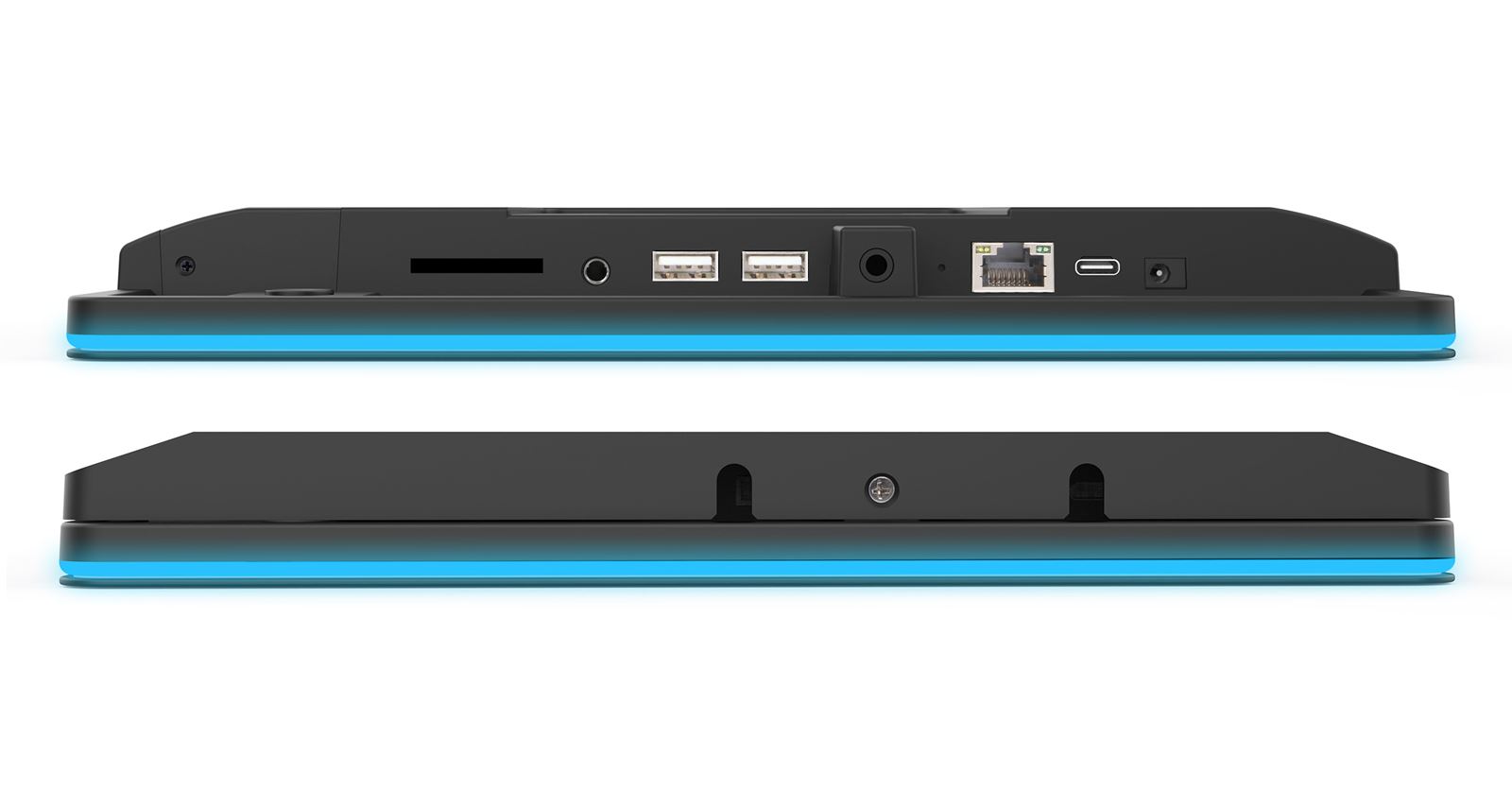

INTERFACES / CONNECTORS / CONTROLS

Audio output	Mini jack x1 Speakers 2 x 2W
USB ports	x3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1 x Mini with OTG (DC5V, 500mA))
RJ45 (LAN)	x1 (PoE - IEEE802.3af/15.4W)
Microphone	x1

FEATURES

Integrated software	Android 12
CPU	Rockchip RK3399 up to 1.8GHz
GPU	Dual-core Cortex--A72 & Quad-core Cortex--A53
Storage	32GB eMMC
Memory	4GB DDR4
WiFi	IEEE802.11b/g/n
Bluetooth	5.2
Hardware	NFC (ARM Cortex--M3 256KB, 34Mbps (high speed)), RFID (125kHZ, 9600kbit/s)

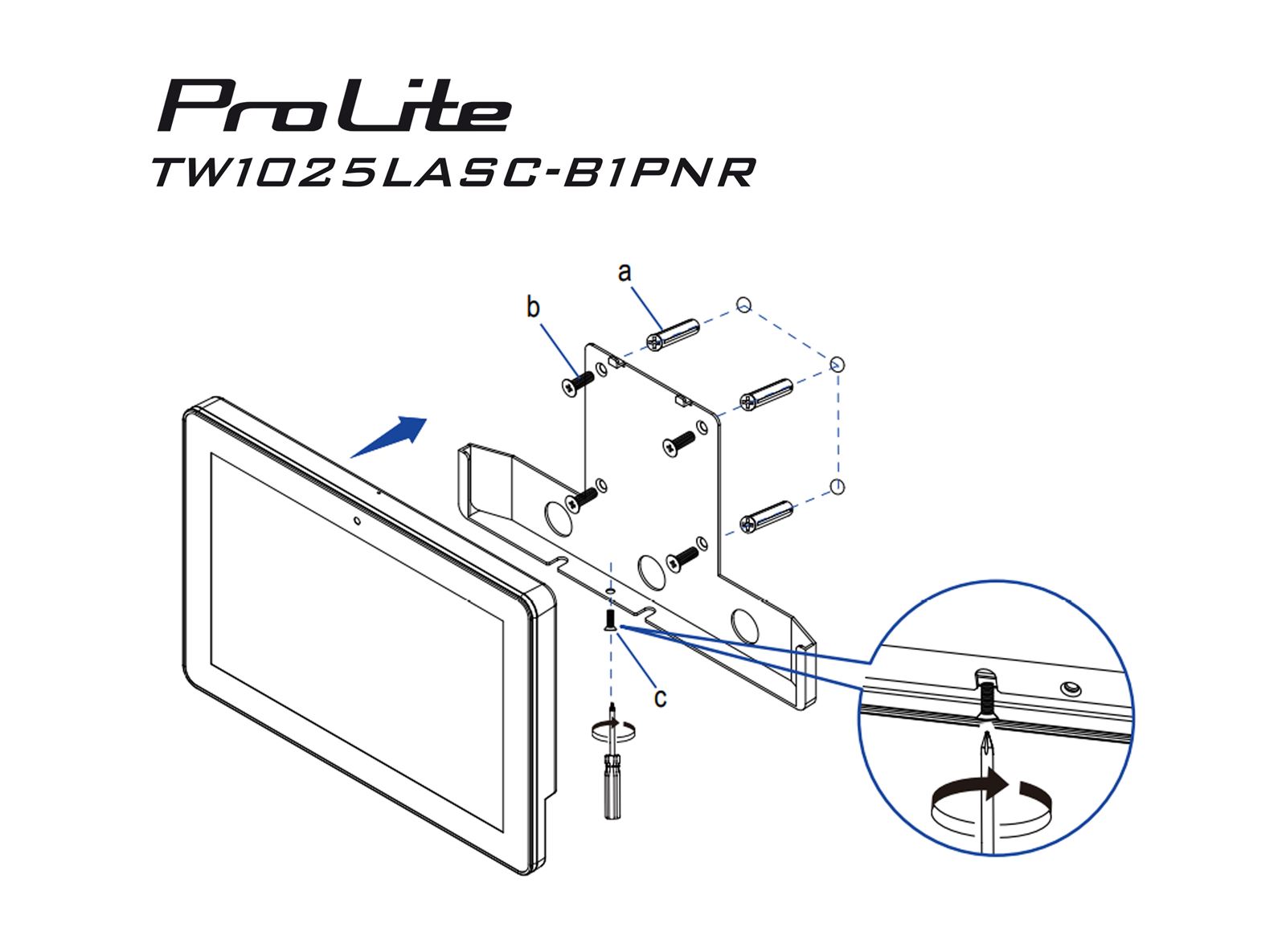

Extra	auto-rotation, webcam (5 megapixel), SD card slot, anti-fingerprint coating, anti-glare coating, PoE, NFC/RFID reader, RGB Led lightbar, wall mount
Kiosk mode	yes
Max. non-stop operating time	24/7
Glass thickness	1.85mm
Glass hardness	6H

GENERAL

Control buttons	Power switch
Applications	Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, camera, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, led light bar, play audio files, Play store, system peferences, sound recorder, play video

MECHANICAL

Orientation	landscape, portrait, face-up

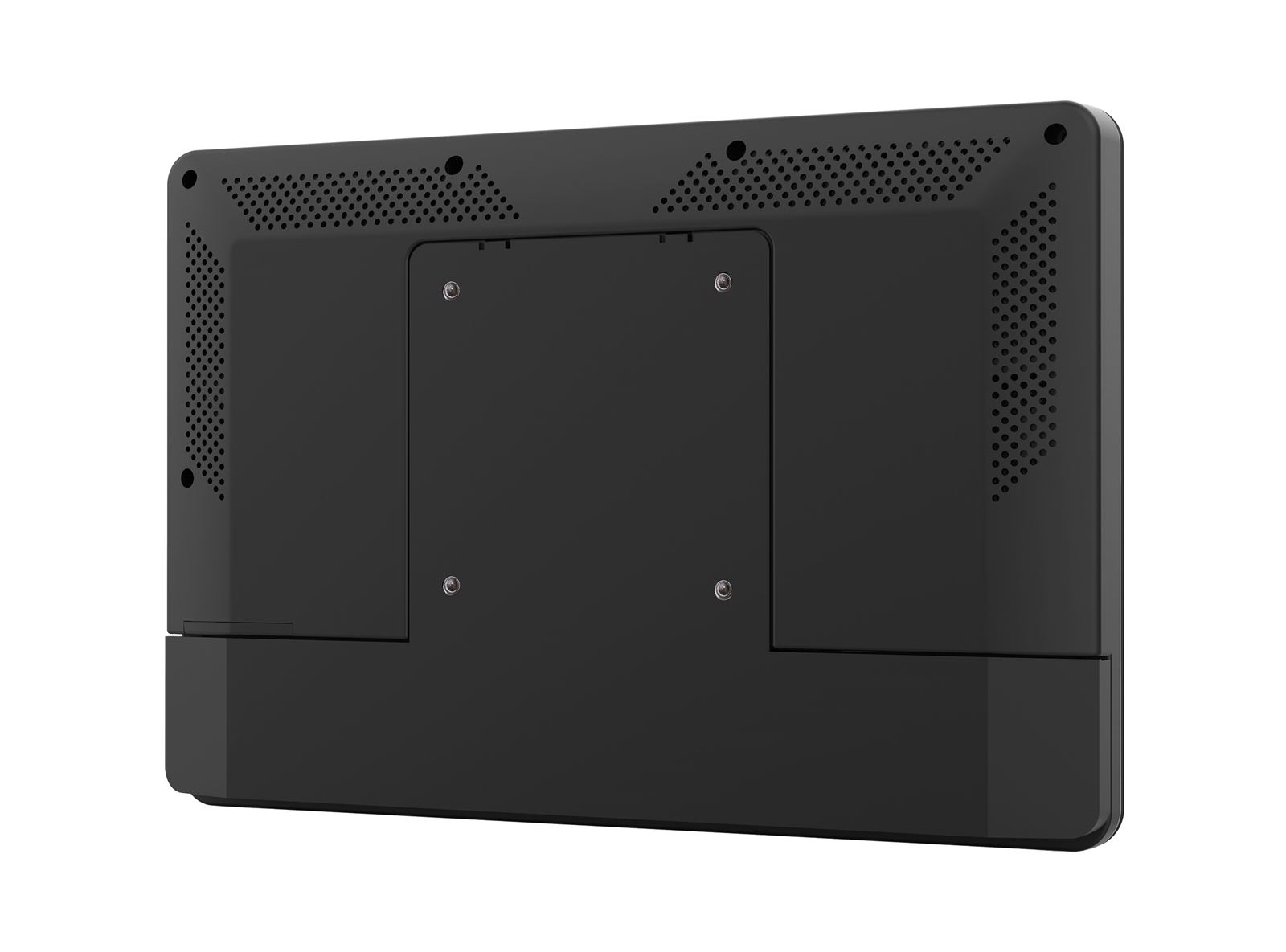

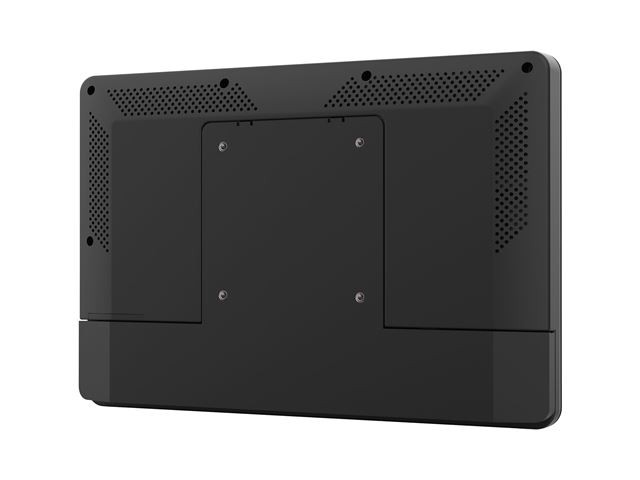

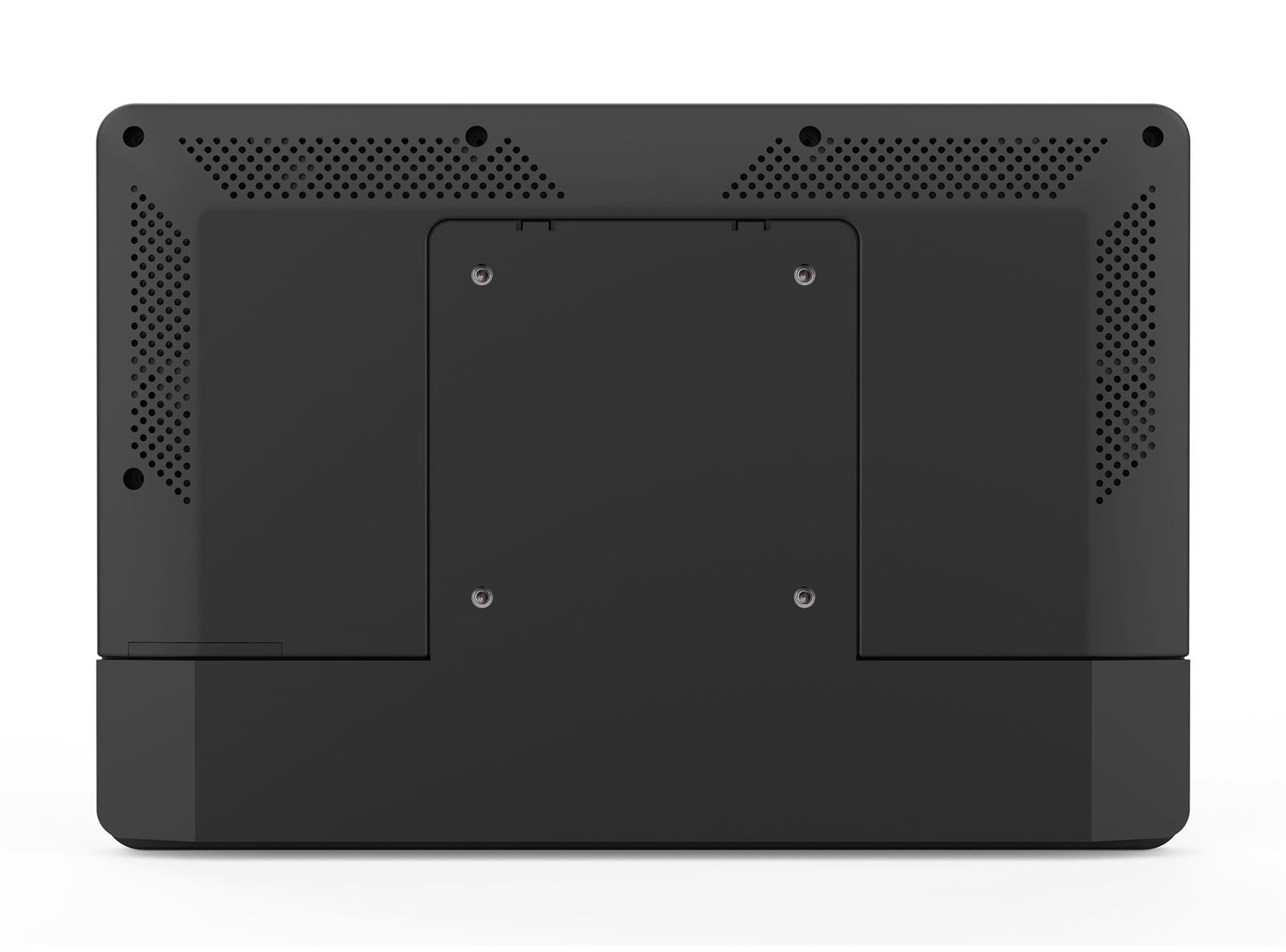

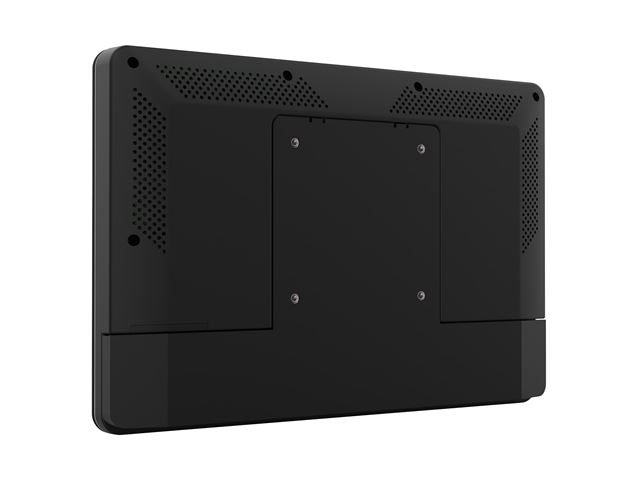

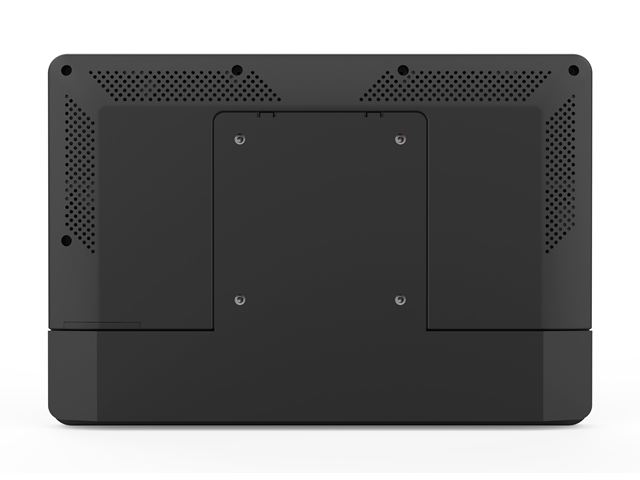

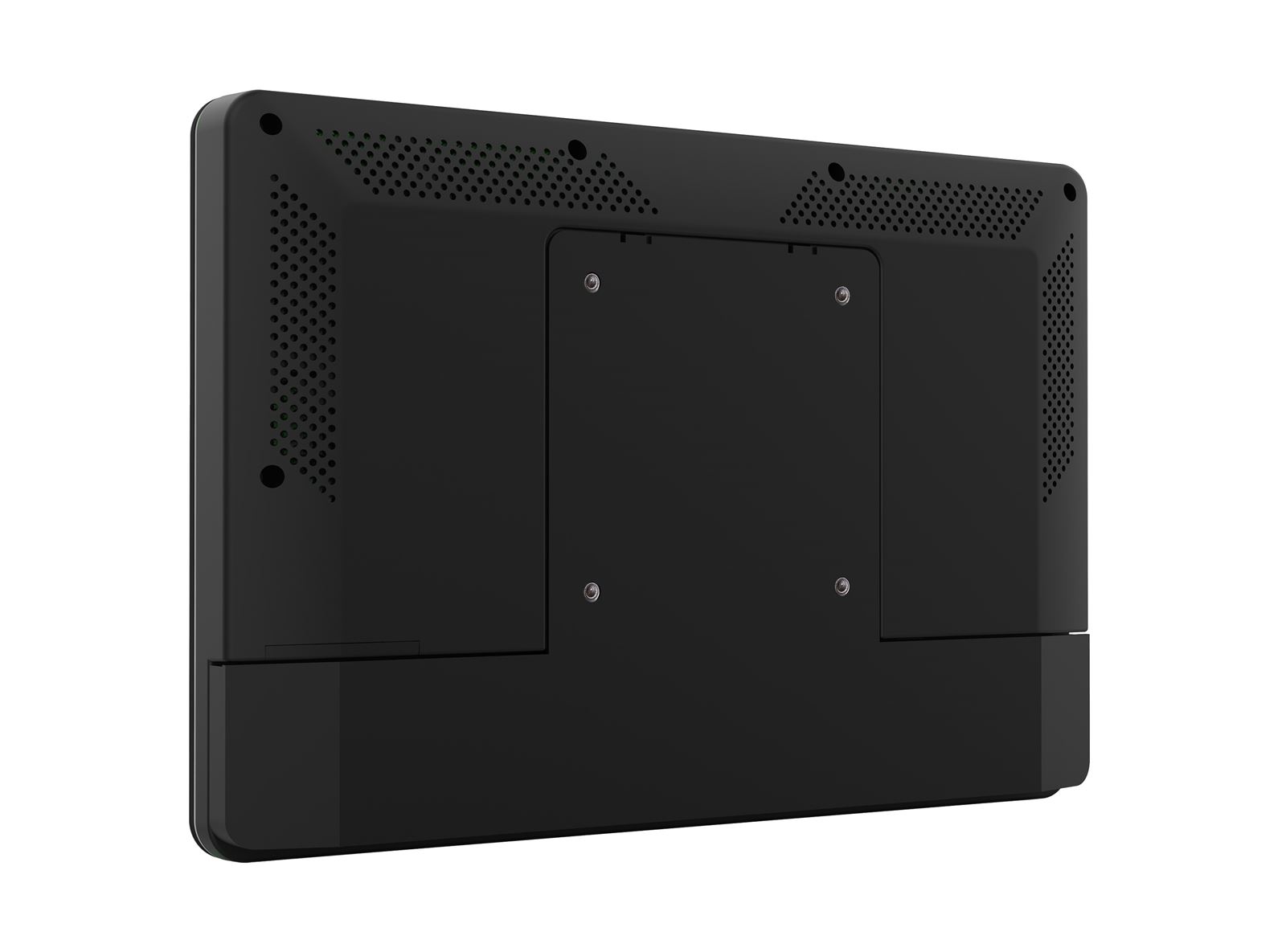

VESA mounting	75 x 75mm
Cable management system	yes

ACCESSORIES INCLUDED

Guides	quick start guide, safety guide
Other	AC adapter, interchangeable plugs (EU/UK)
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	18W typical

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	259.5 x 178.5 x 28mm
Weight (without box)	1.1kg
EAN code	4948570124275

Features

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset in the headphone connector and enjoy!

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS TECHNOLOGY

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

WEBCAM & MICROPHONE

Integrated web camera and microphone assure seamless compatibility with any video or web conferencing applications.

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
