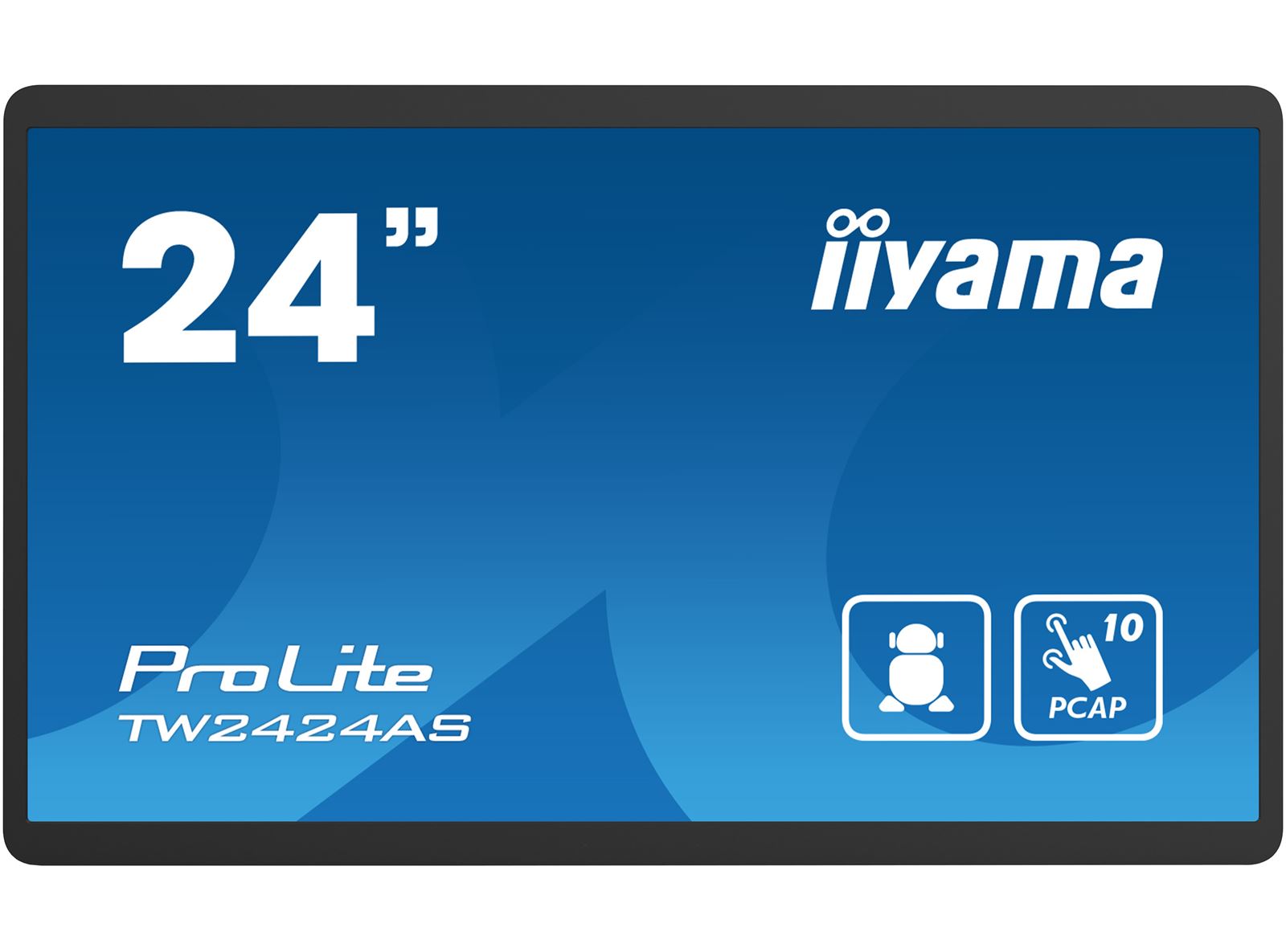

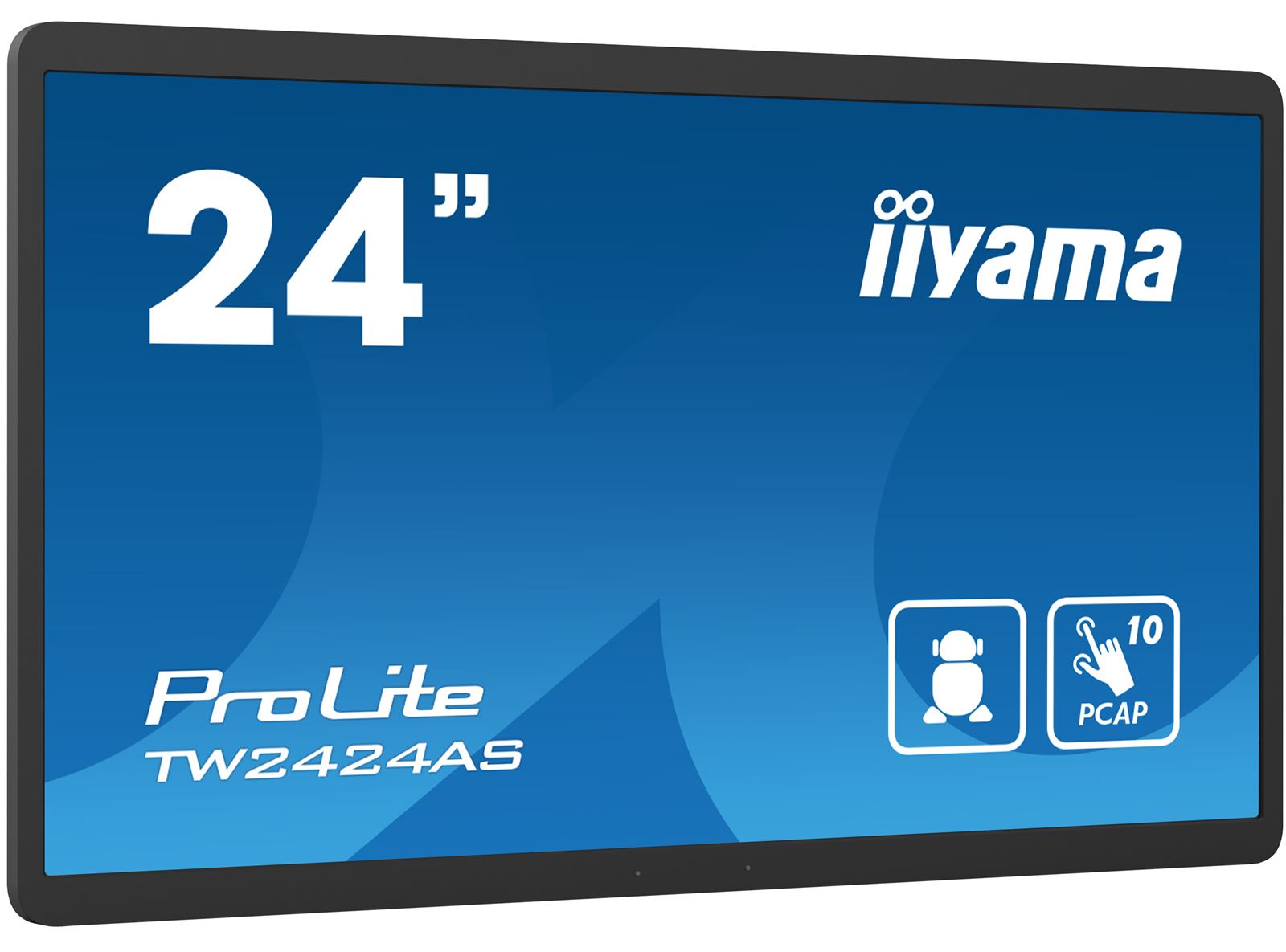

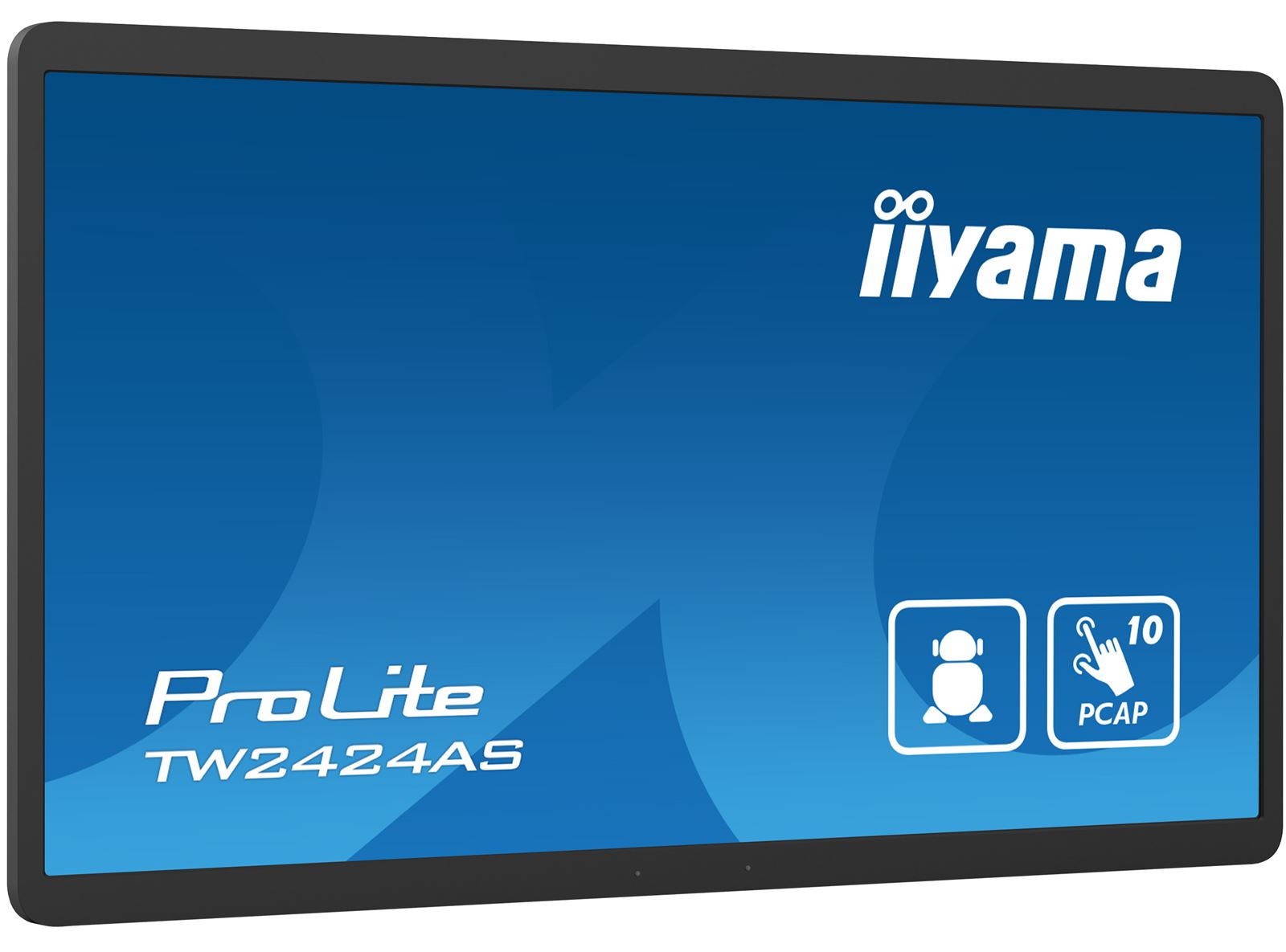

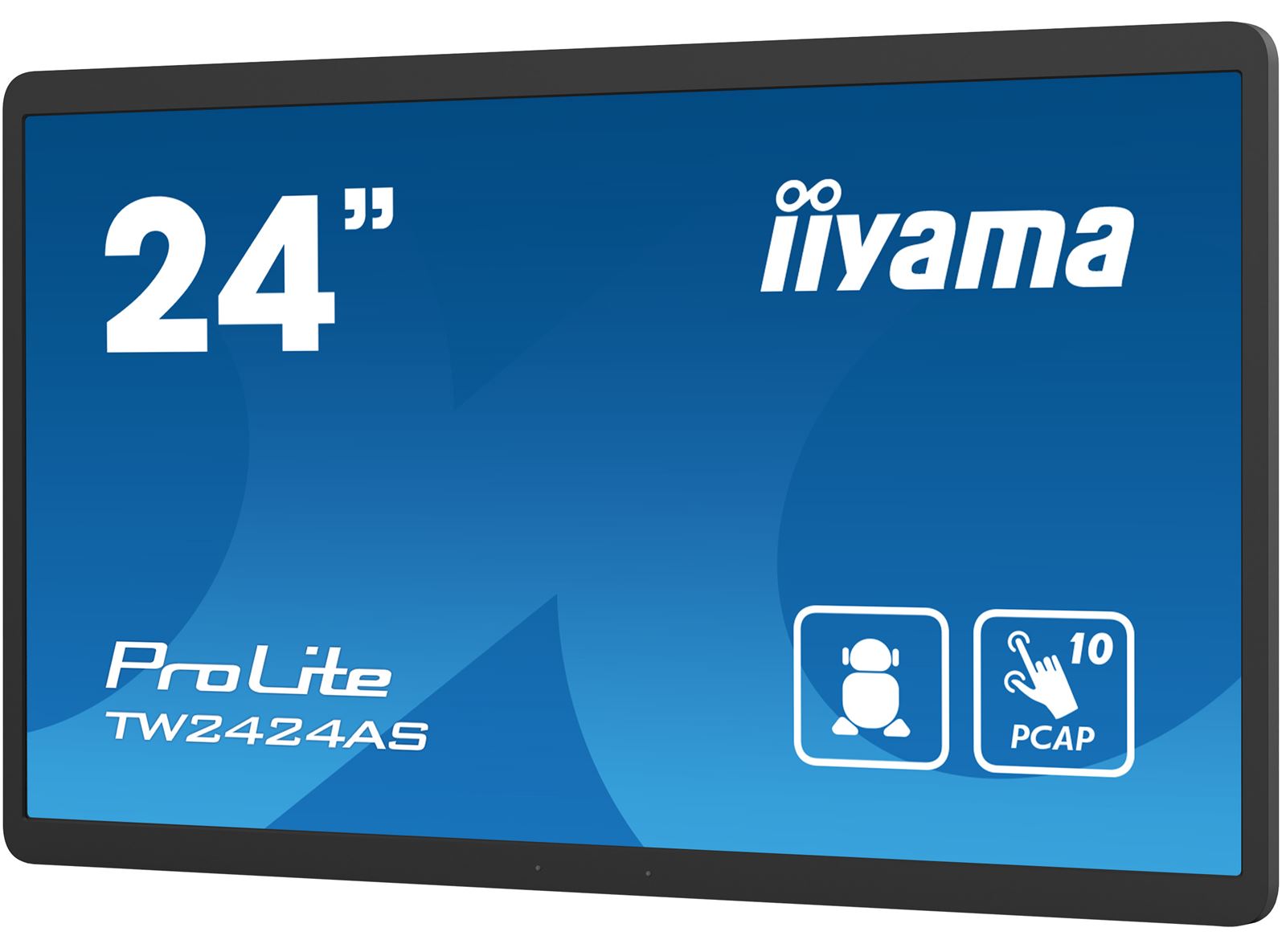

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating

Name: iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating
Brand: iiyama
SKU: TW2424AS-B1
Price: 443.52 GBP
Availability: InStock

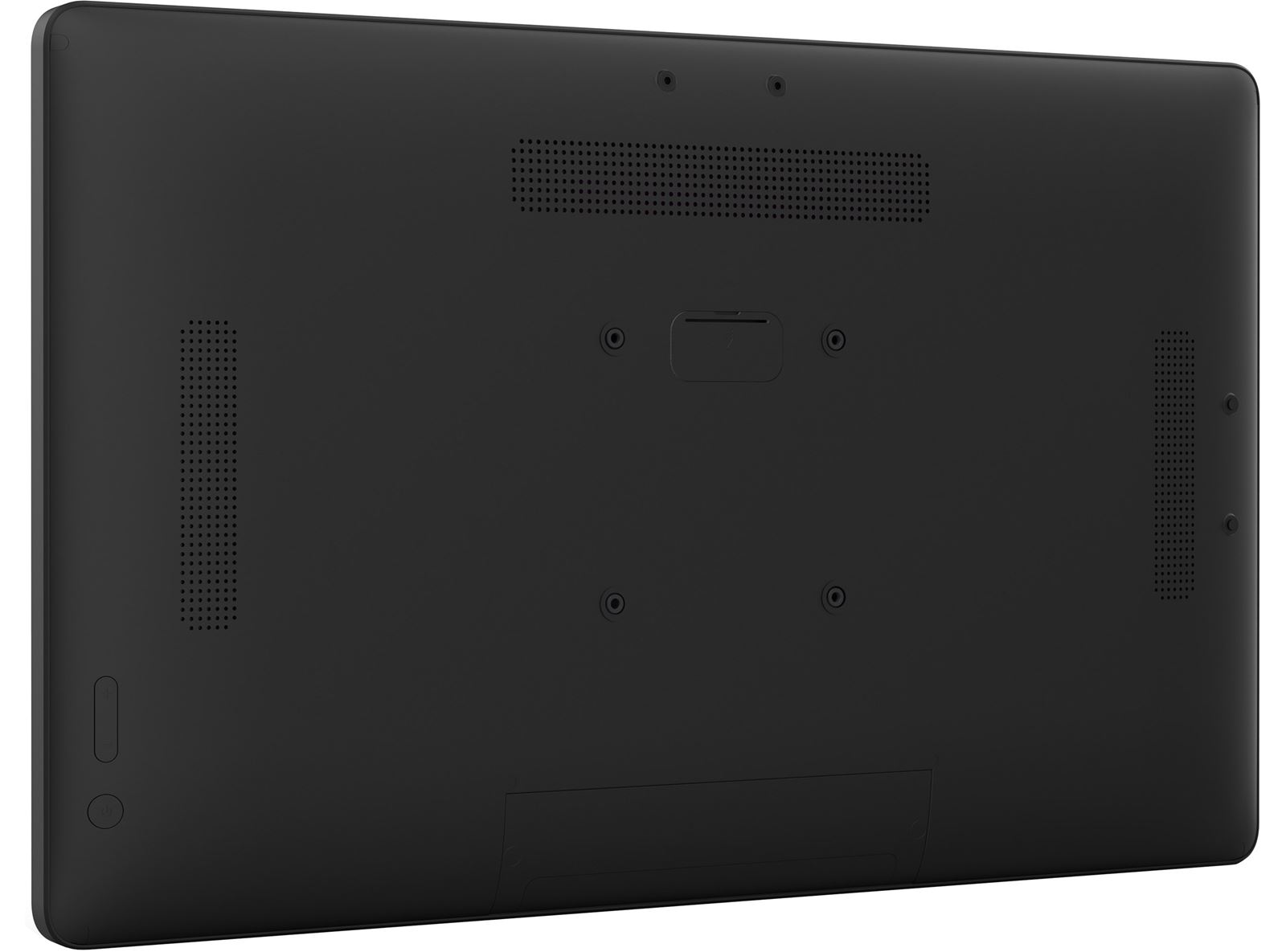

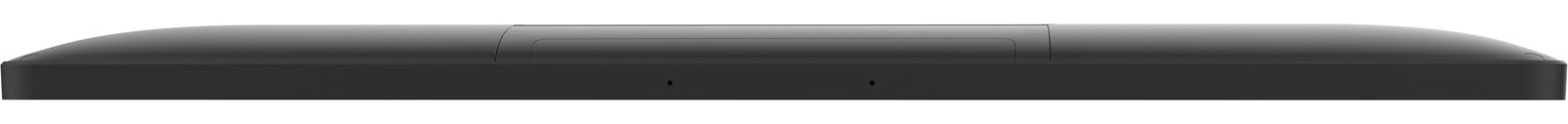

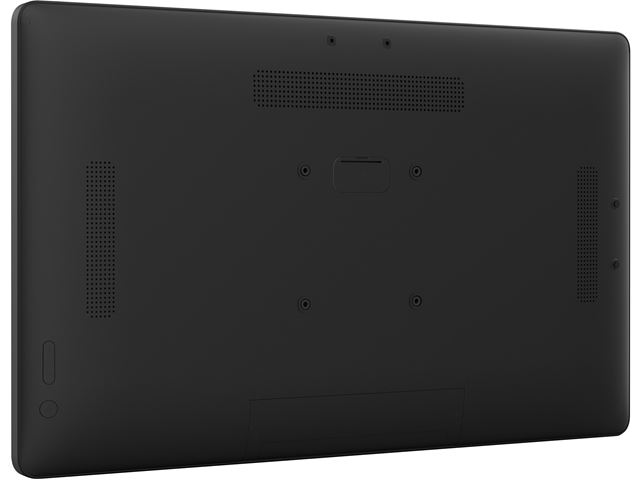

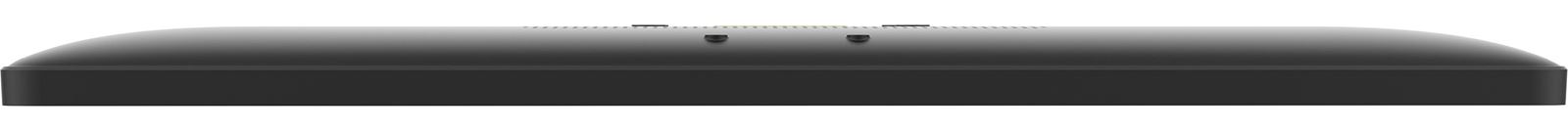

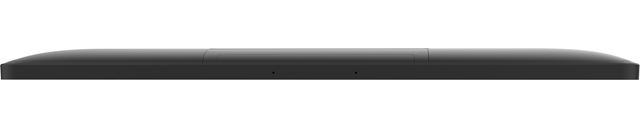

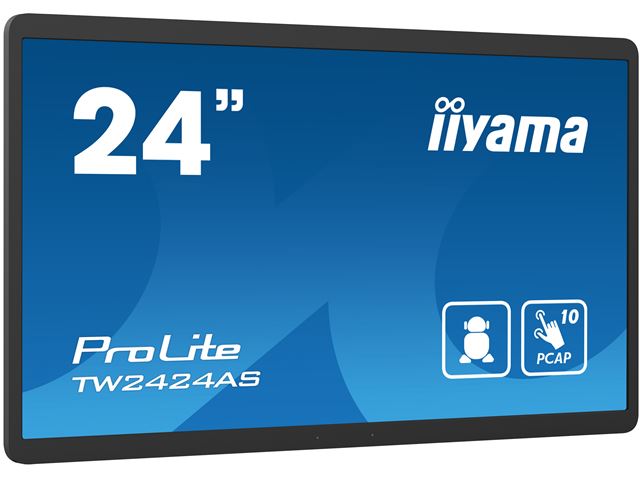

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 0

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 1

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 2

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 3

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 4

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 5

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 6

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 7

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 8

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating image 9

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 0

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 1

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 2

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 3

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 4

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 5

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 6

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 7

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 8

iiyama ProLite TW2424AS-B1, 24” IPS, Full HD PCAP 10pt touch screen with Android and anti glare coating thumbnail 9

£369.60 exc. VAT

£443.52 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TW2424AS-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology and anti glare coating

The ProLite TW2424AS-B1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Technical Information

DISPLAY CHARACTERISTICS

Design	Thin bezel
Diagonal	23.8", 60.5cm
Panel	IPS
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Brightness	250 cd/m² with touch
Static contrast	1000:1 with touch
Response time (GTG)	14ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln
Horizontal Sync	31 - 83.kHz
Viewable area W x H	527 x 296.5mm, 20.7 x 10.6"
Pixel pitch	0.275mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB

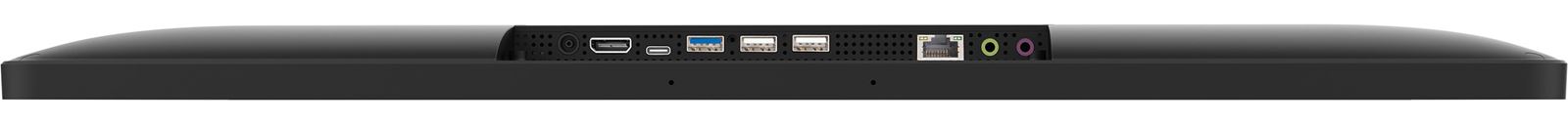

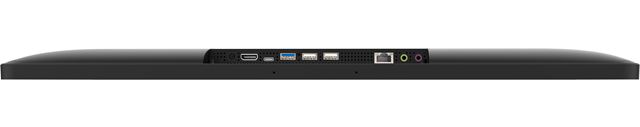

INTERFACES / CONNECTORS / CONTROLS

Digital signal input	HDMI x1 (1920x1080 @60Hz)
Audio input	Mini jack x1
Digital signal output	USB-C x1 (DC5V, 900mA)
Audio output	Mini jack x1 Speakers 2 x 5W
HDCP	yes
RJ45 (LAN)	x1
USB HUB	x3 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA)

FEATURES

Integrated software	Android 12 with GMS
CPU	Rockchip RK3399 (1.8GHz, 32Gb storage)
GPU	Dual-core A72 + Quad-core A53
Storage	32Gb eMMC
Memory	4Gb LPDDR4
WiFi	IEEE802.11a/b/g/n/ac
Bluetooth	5.2
Extra	auto-rotation, 2x5W speakers, microphone, anti-glare coating
Max. non-stop operating time	24/7
Anti image retention	yes
Glass hardness	3H
OSD key lock	yes

GENERAL

Control buttons	Volume +, volume -, power switch
Applications	Lock applications, manage restart time, manage power on/off, calculator, calender, Chrome, alarm/ clock, Timer, Stopwatch, Manage files, orginize albums, Gmail, play audio files, Play Store, search engine, system preferences, sound recorder, play videos
Flicker free	yes

MECHANICAL

Orientation	landscape, portrait, face-up

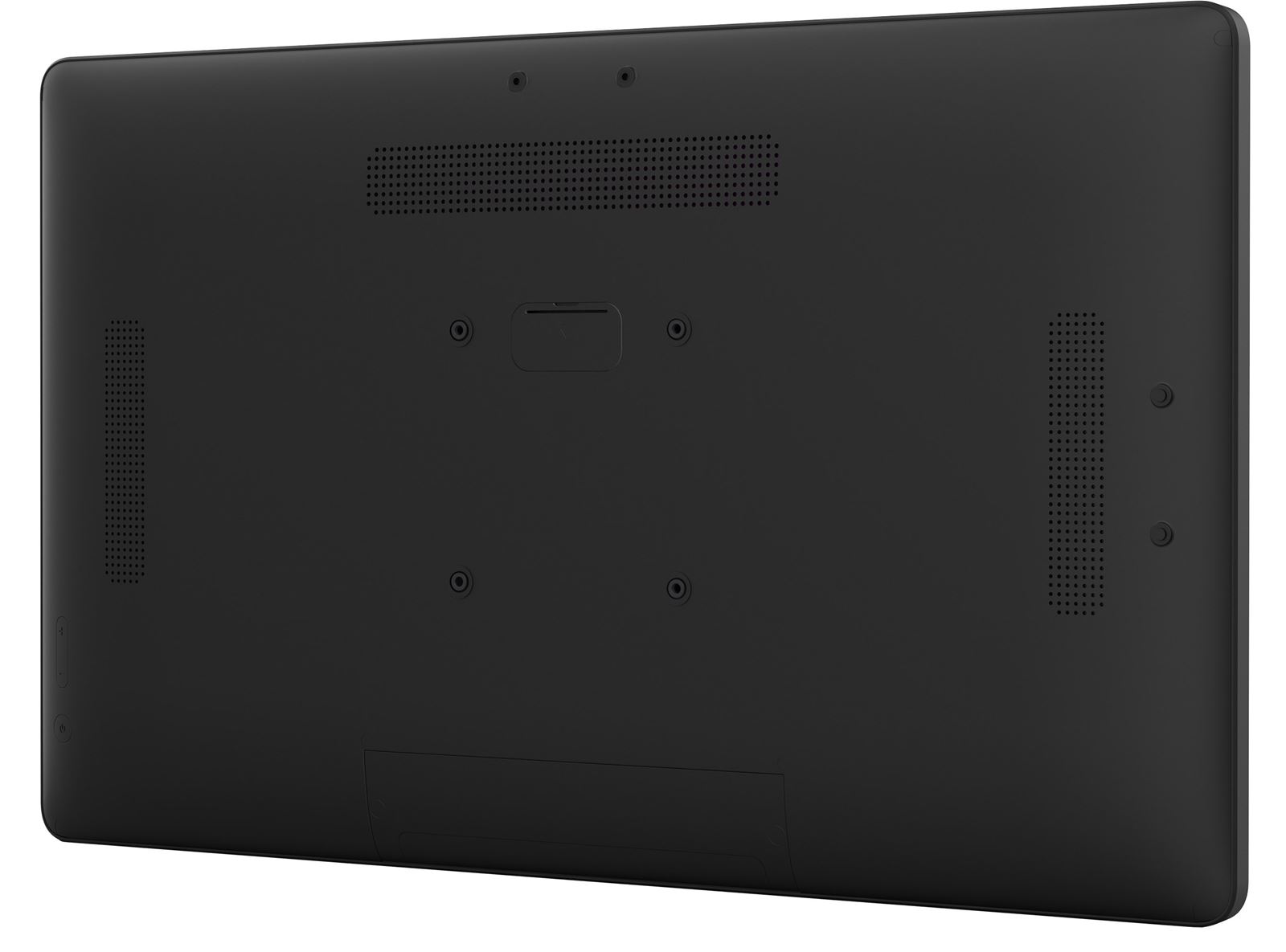

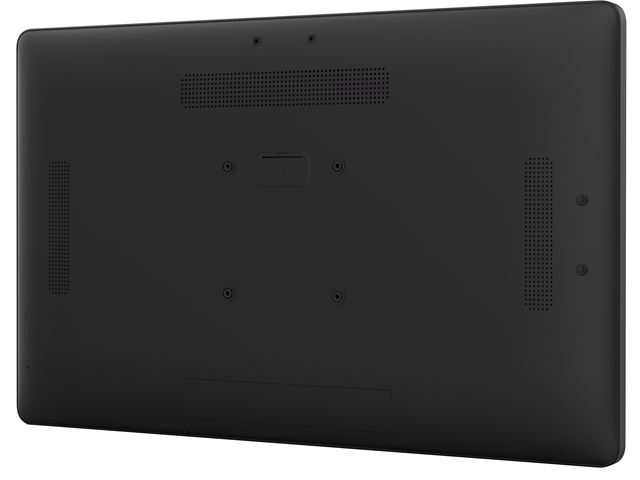

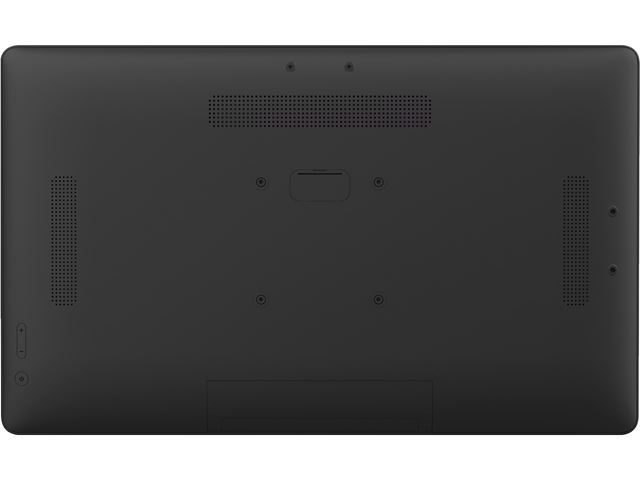

VESA mounting	100 x 100mm
MTBF	50000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables	power
Guides	quick start guide, safety guide
Other	AC adapter
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	19W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	549.5 x 336 x 28mm
Box dimensions W x H x D	580 x 375 x 126mm
Weight (without box)	4.23kg
Weight (with box)	6.15kg
EAN code	4948570122943

Features

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).

24/7

24/7 displays are designed for a continuous operation.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
