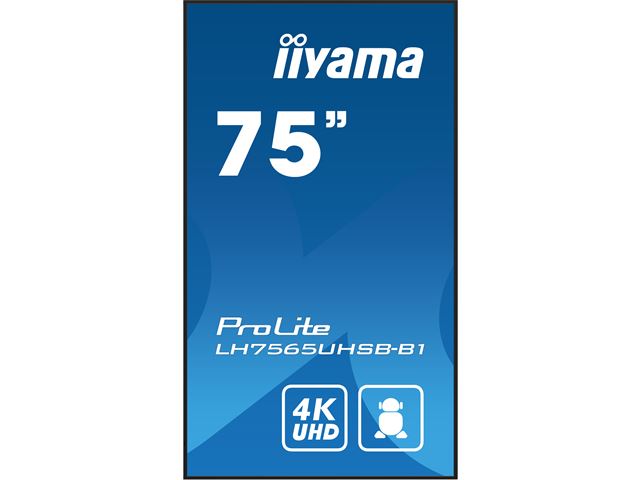

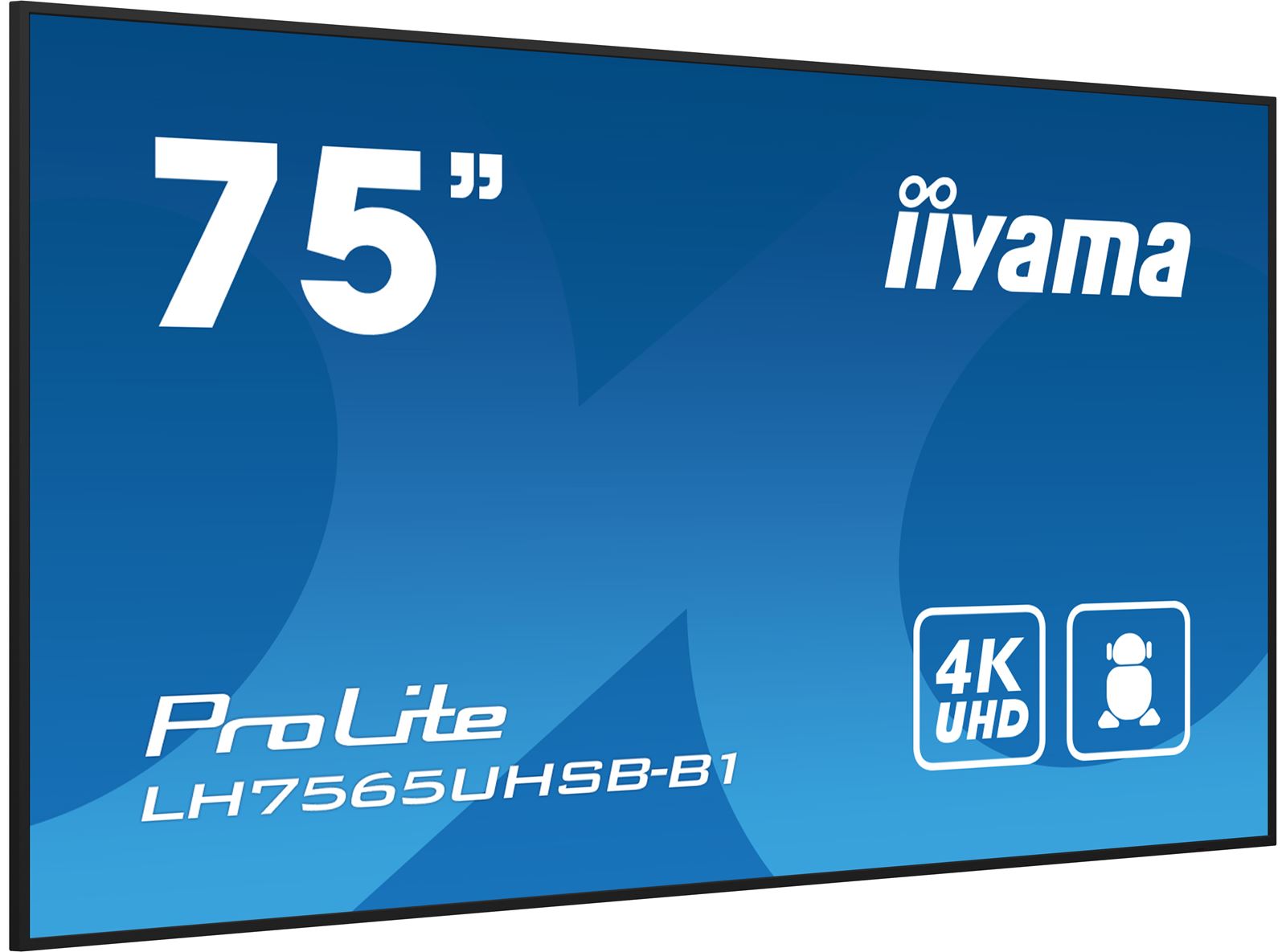

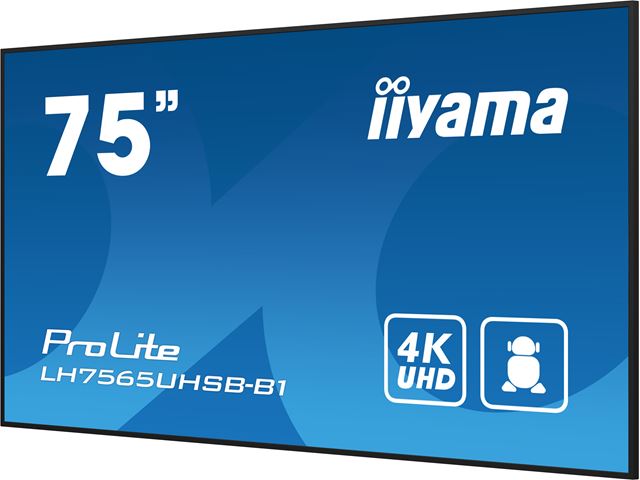

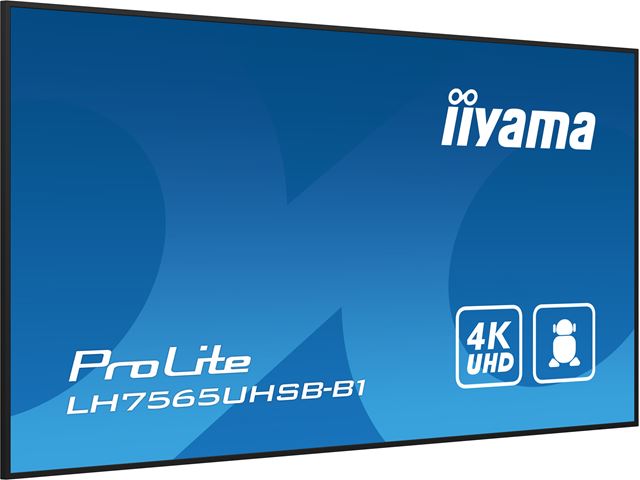

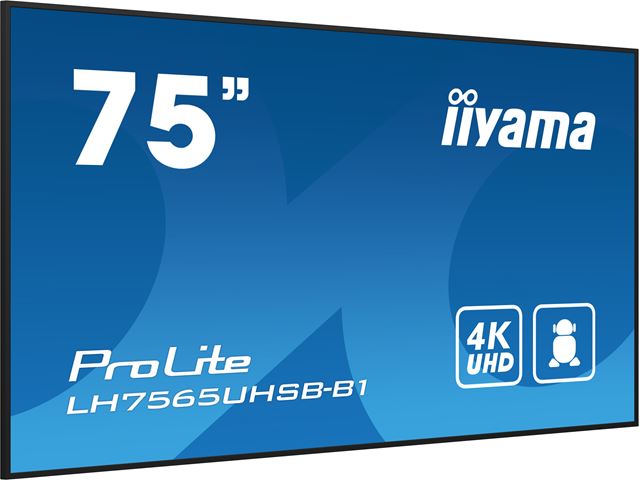

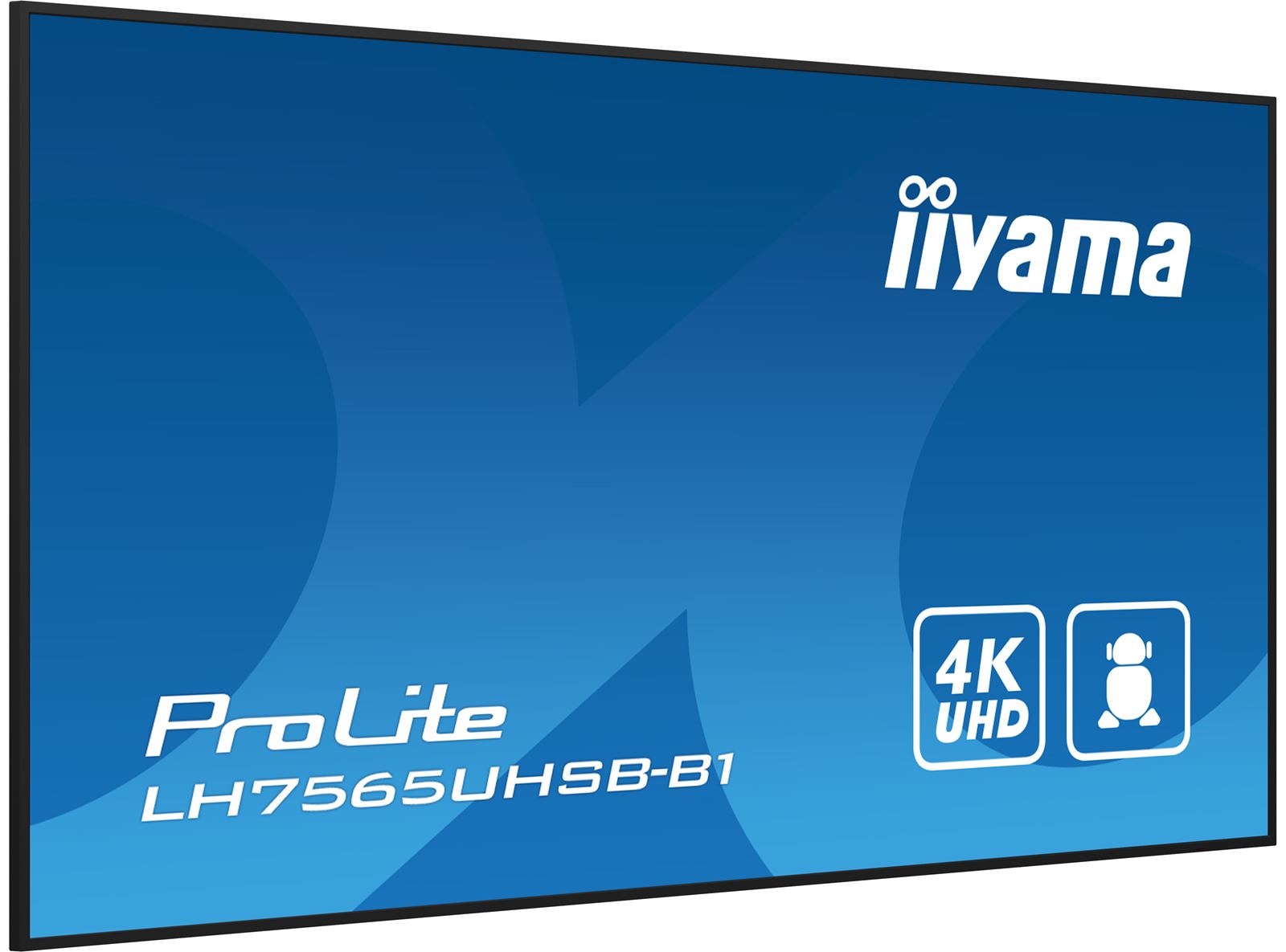

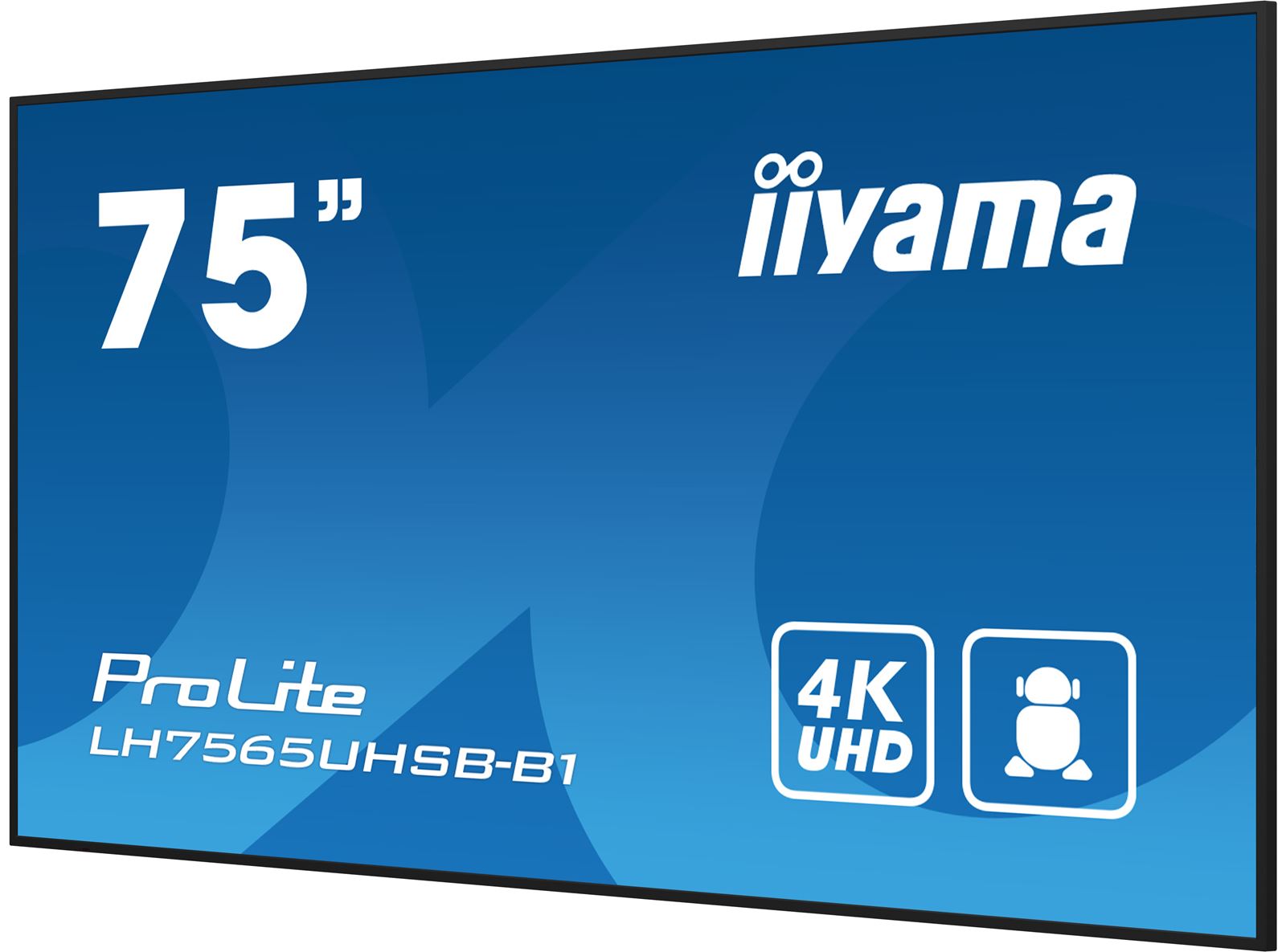

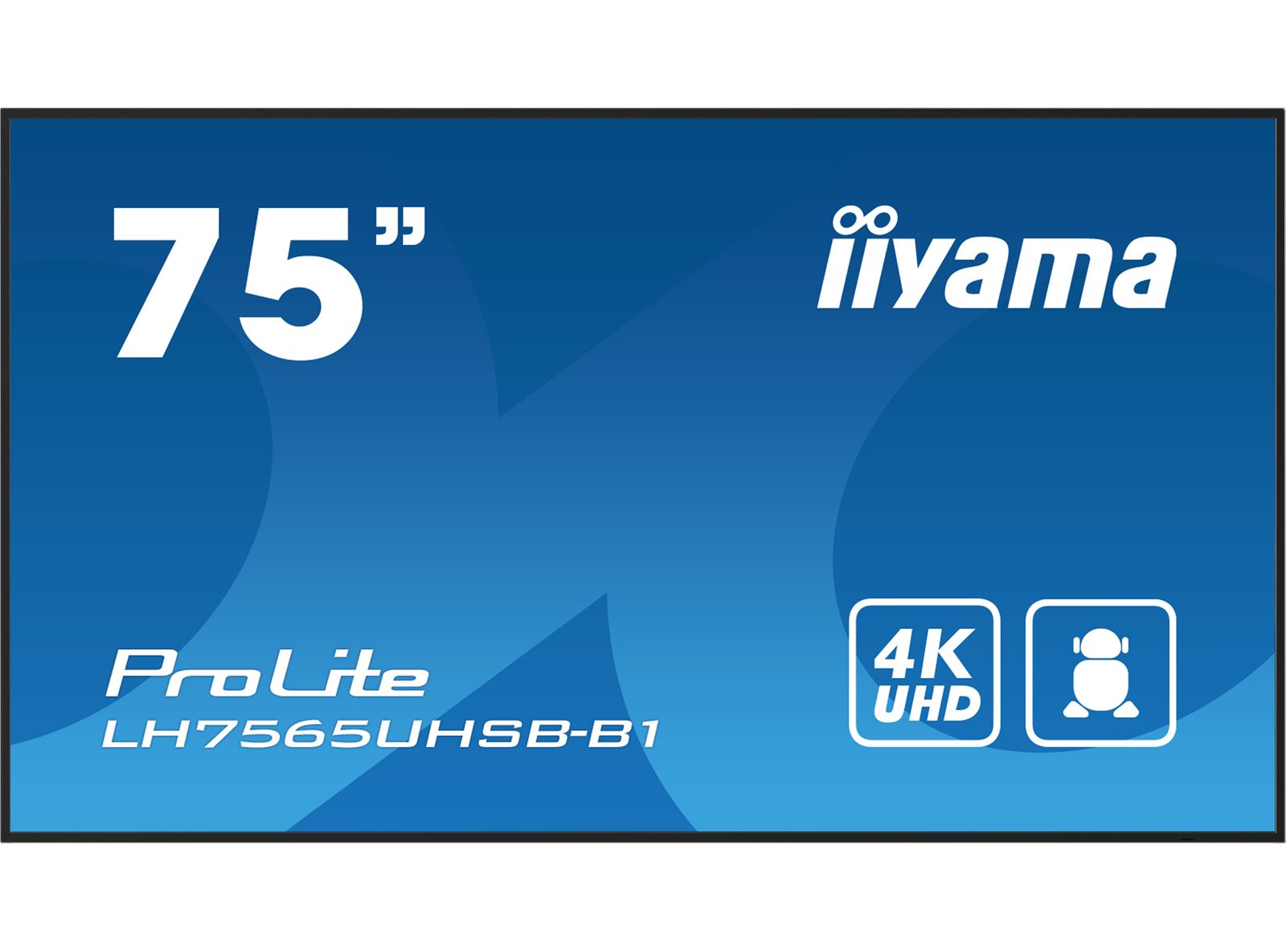

iiyama ProLite monitor LH7565UHSB-B1, 75" IPS Professional Digital Signage display with 24/7, 4K UHD and 800cd high brightness, Android OS

£1,113.00 exc. VAT
£1,335.60 inc. VAT

Brand: iiyama

Manufacturer Code: LH7565UHSB-B1

Warranty: 3 years collect and return

Product Description

75" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH7565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms.

The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Technical Information

 DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 74.5", 189cm
Panel IPS, haze 1%
Native resolution 3840 x 2160 (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 800 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm
Pixel pitch 0.429mm
Bezel colour and finish black

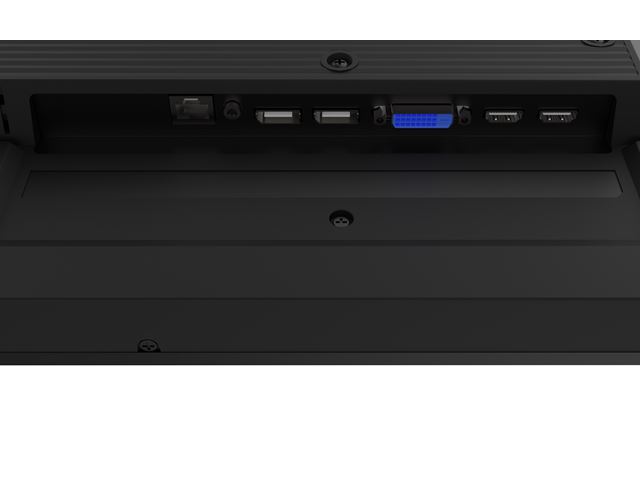

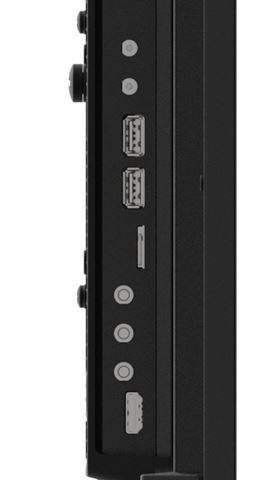

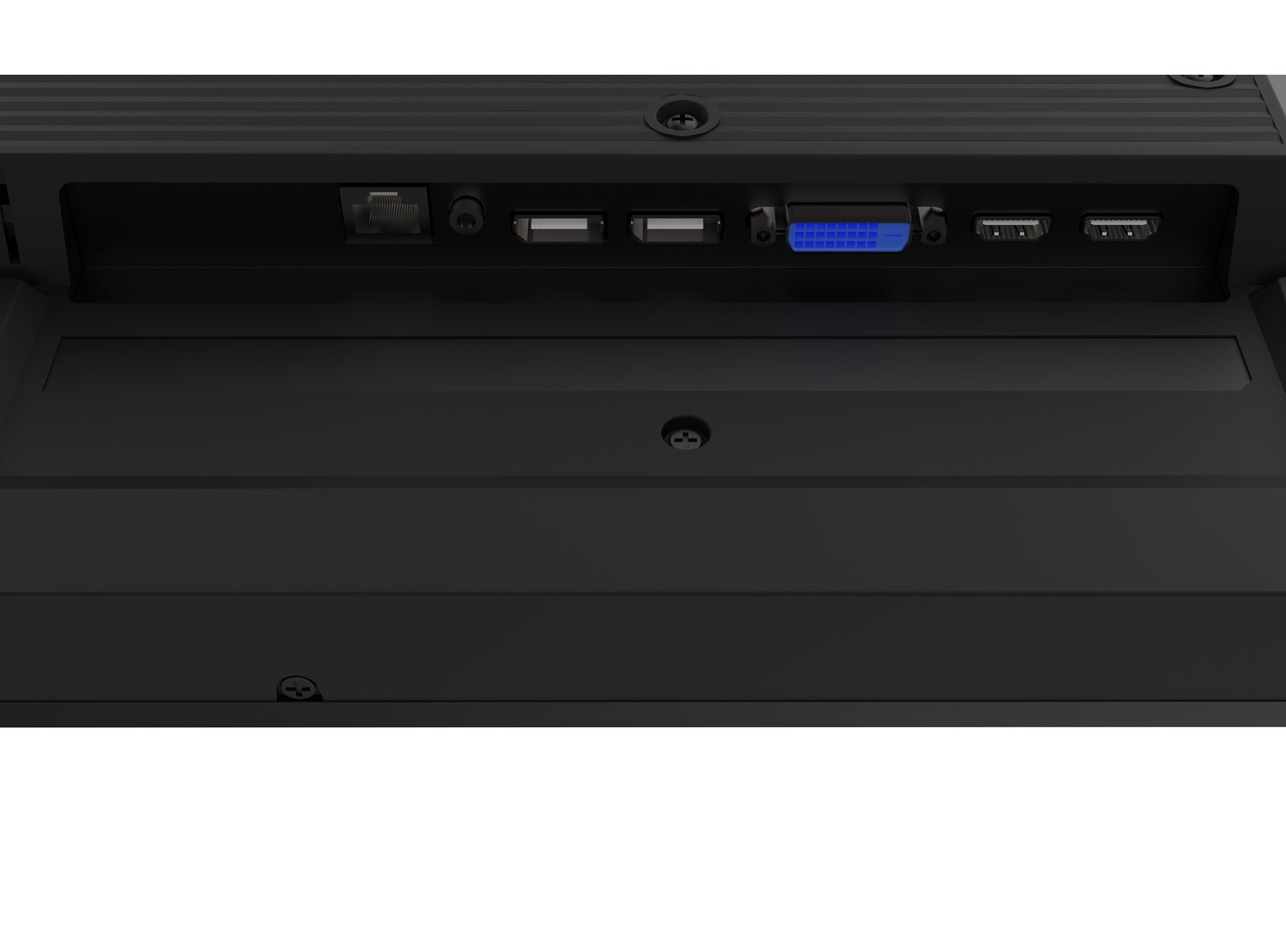

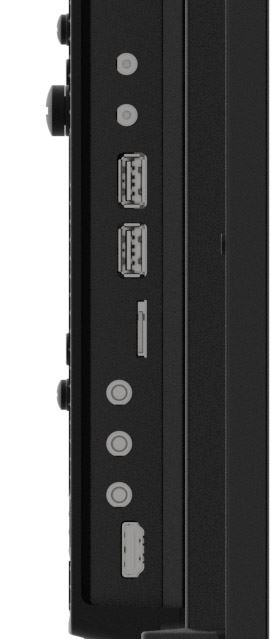

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.2, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
Audio output Mini jack x1
Speakers 2 x 10W
HDCP v.2.2
USB ports x2 (v.2.0)

 FEATURES

Integrated software Android 11 OS, iiSignage2, FailOver, EShare
WiFi yes (Built-in, 802.11ac)
Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Max. non-stop operating time 24/7
Media playback yes
Housing (bezel) metal

 GENERAL

OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
Plug&Play DDC2B

 MECHANICAL

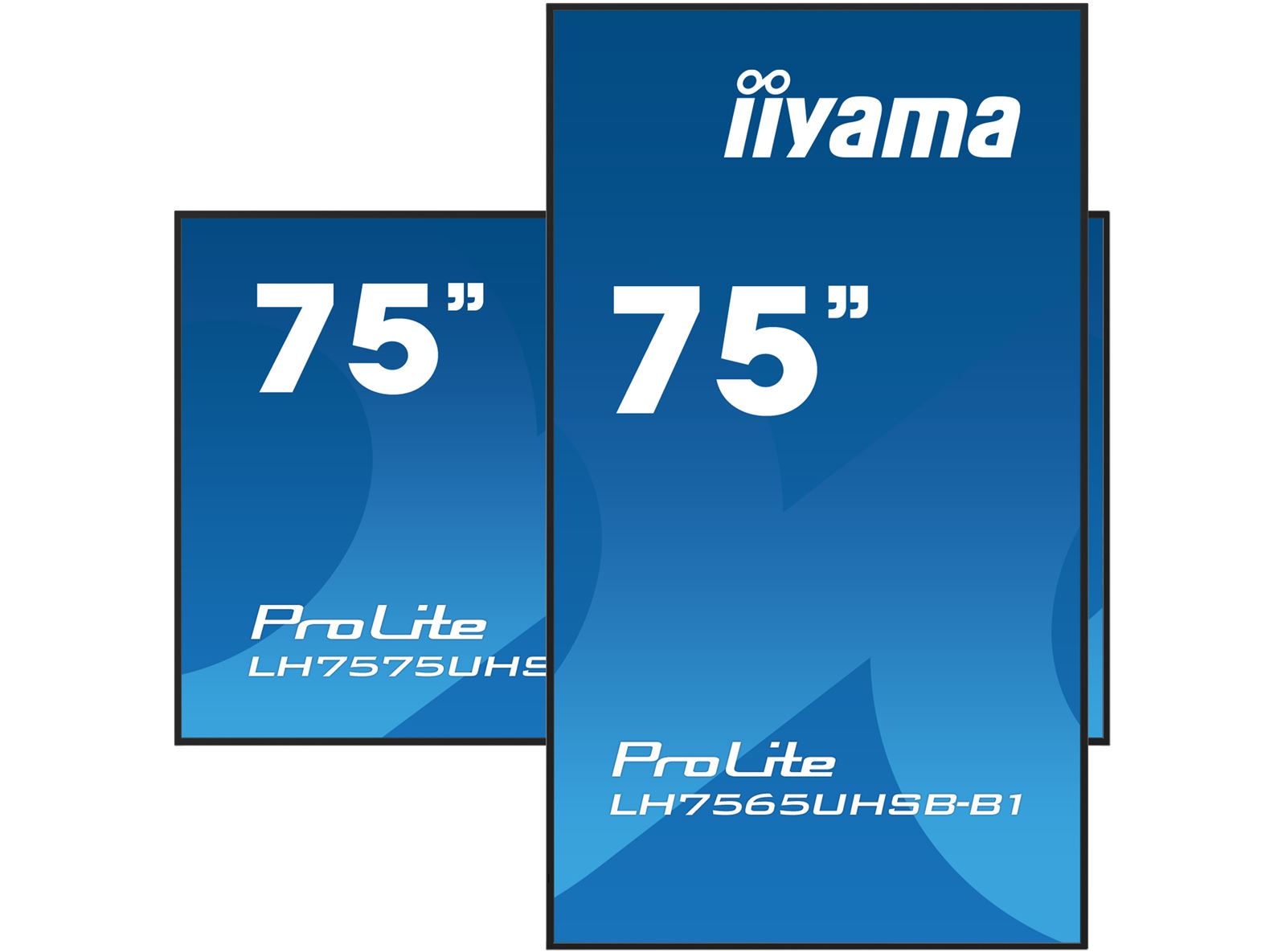

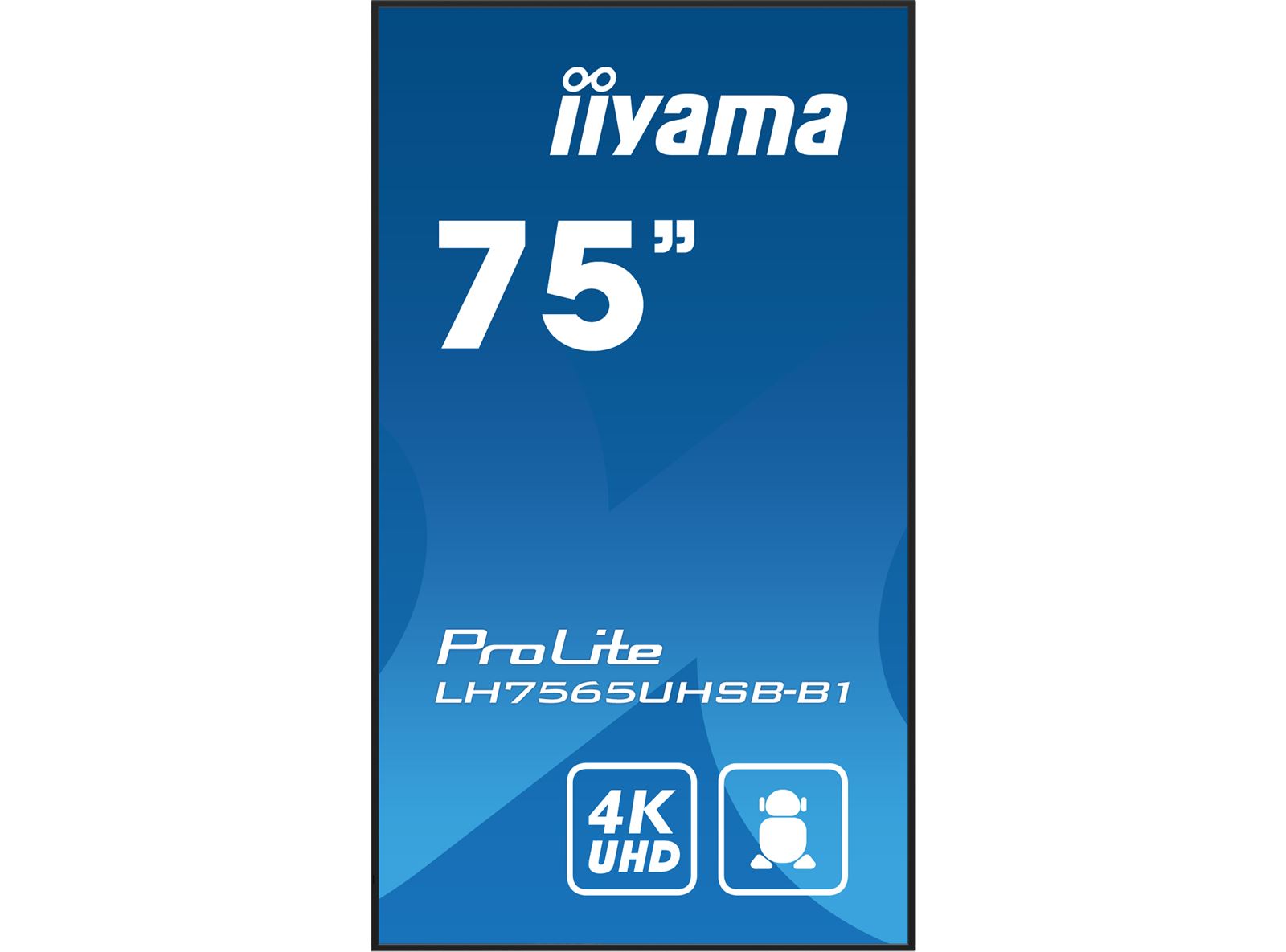

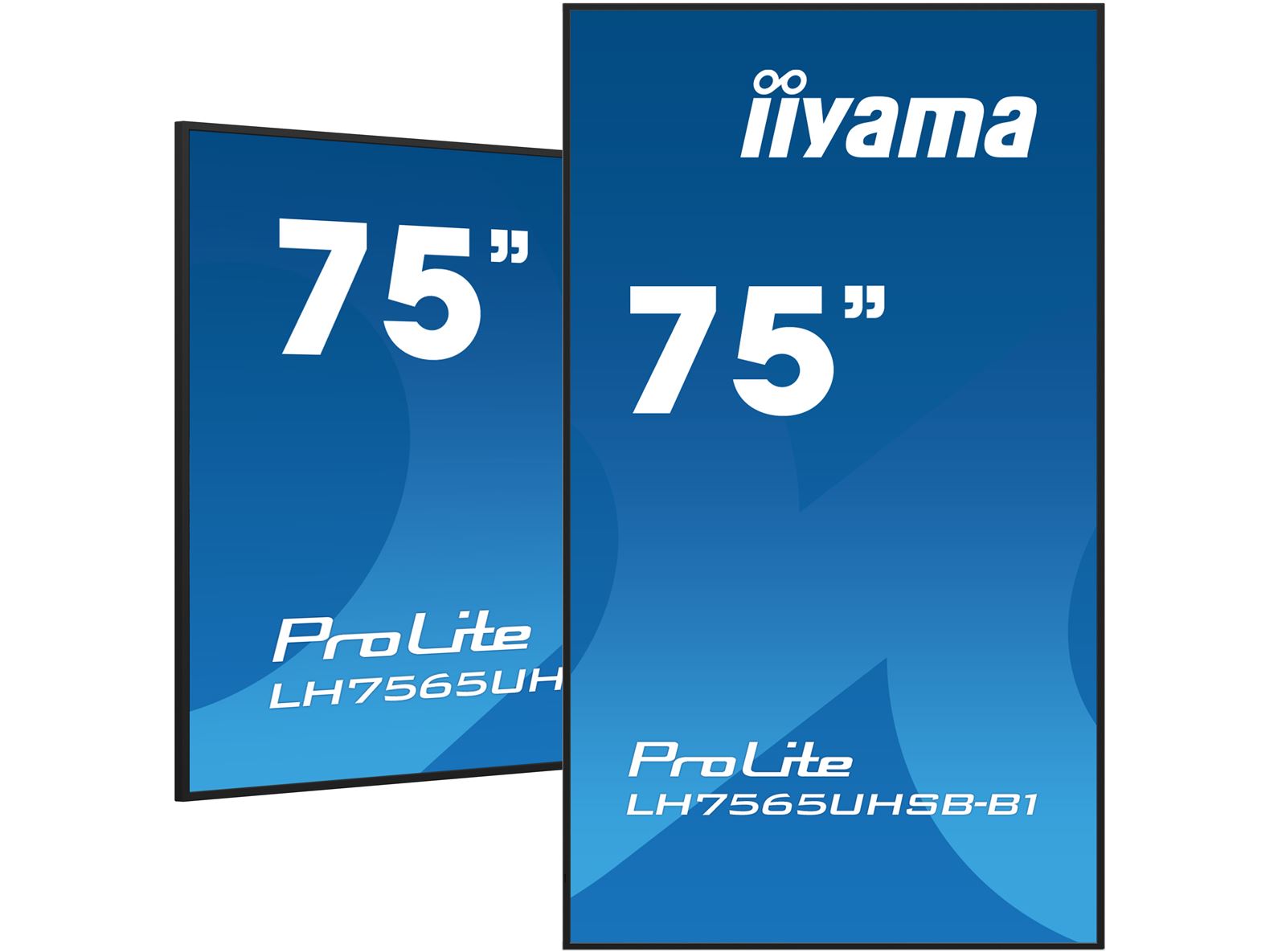

Orientation landscape, portrait
Fanless design yes

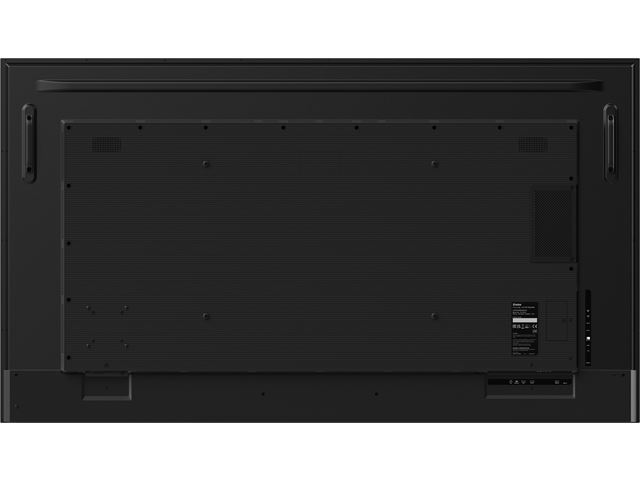

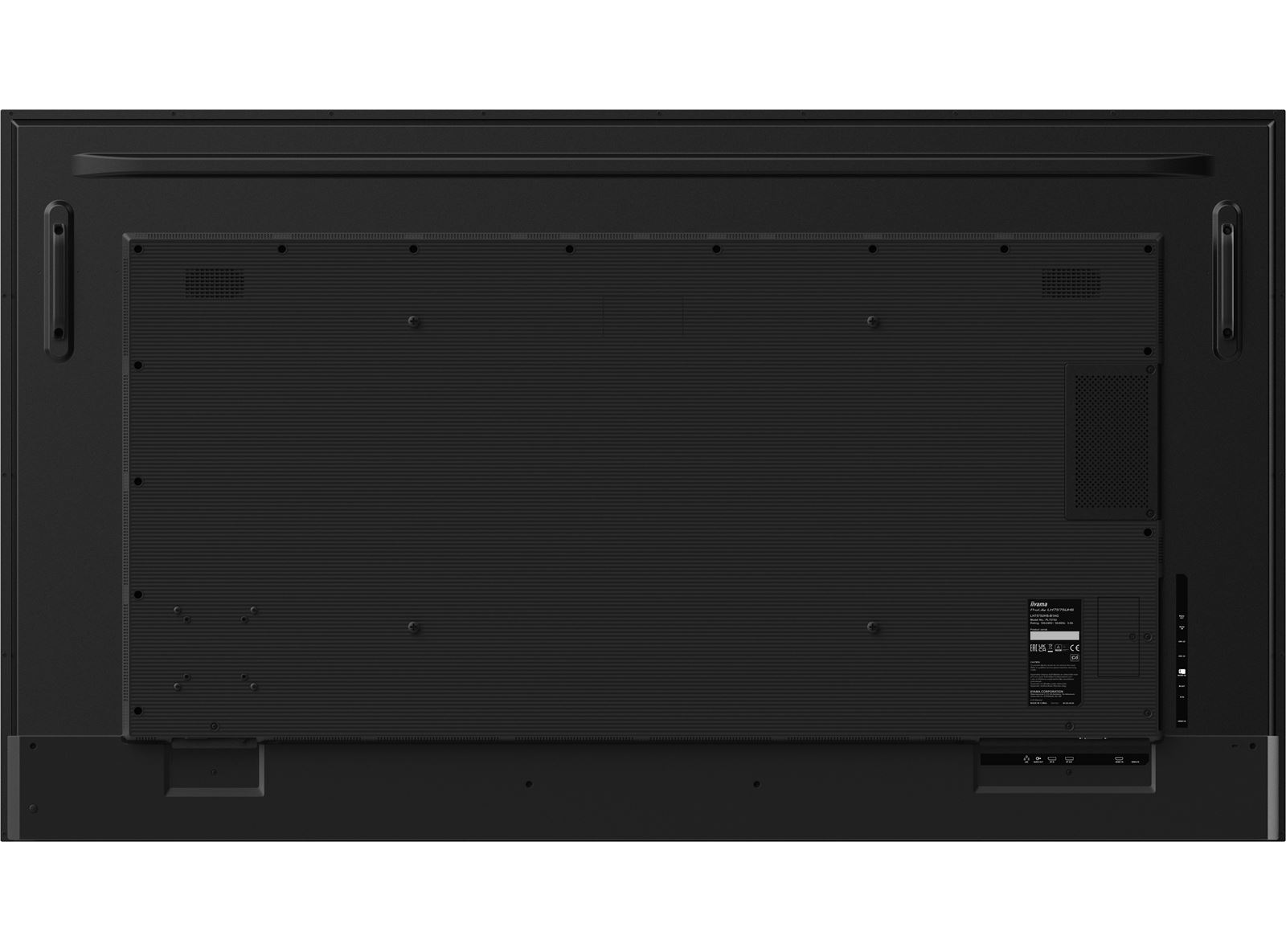

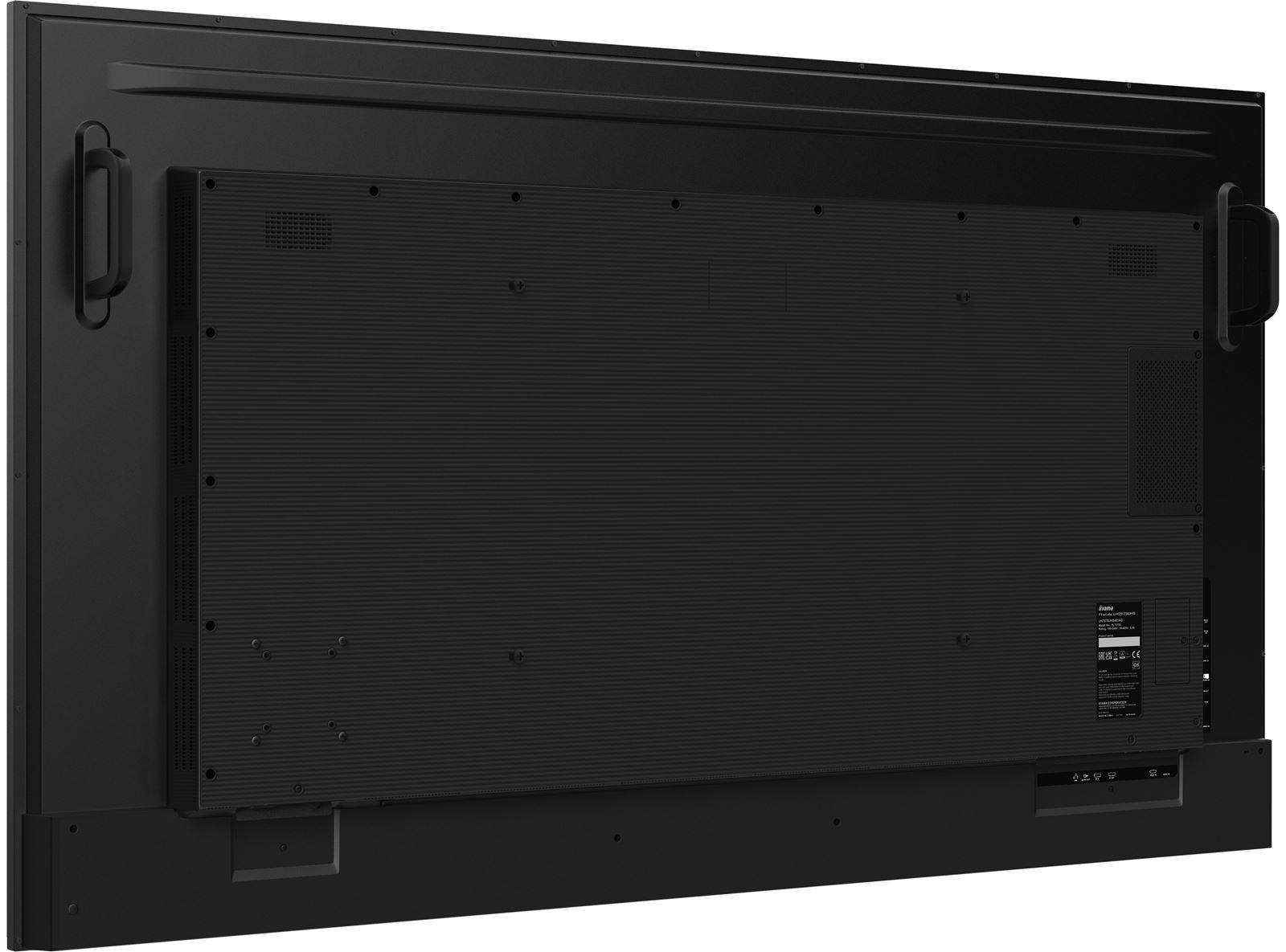

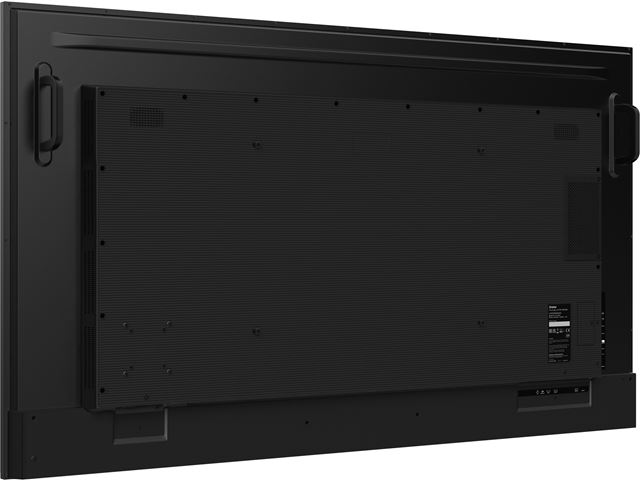

VESA mounting 600 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

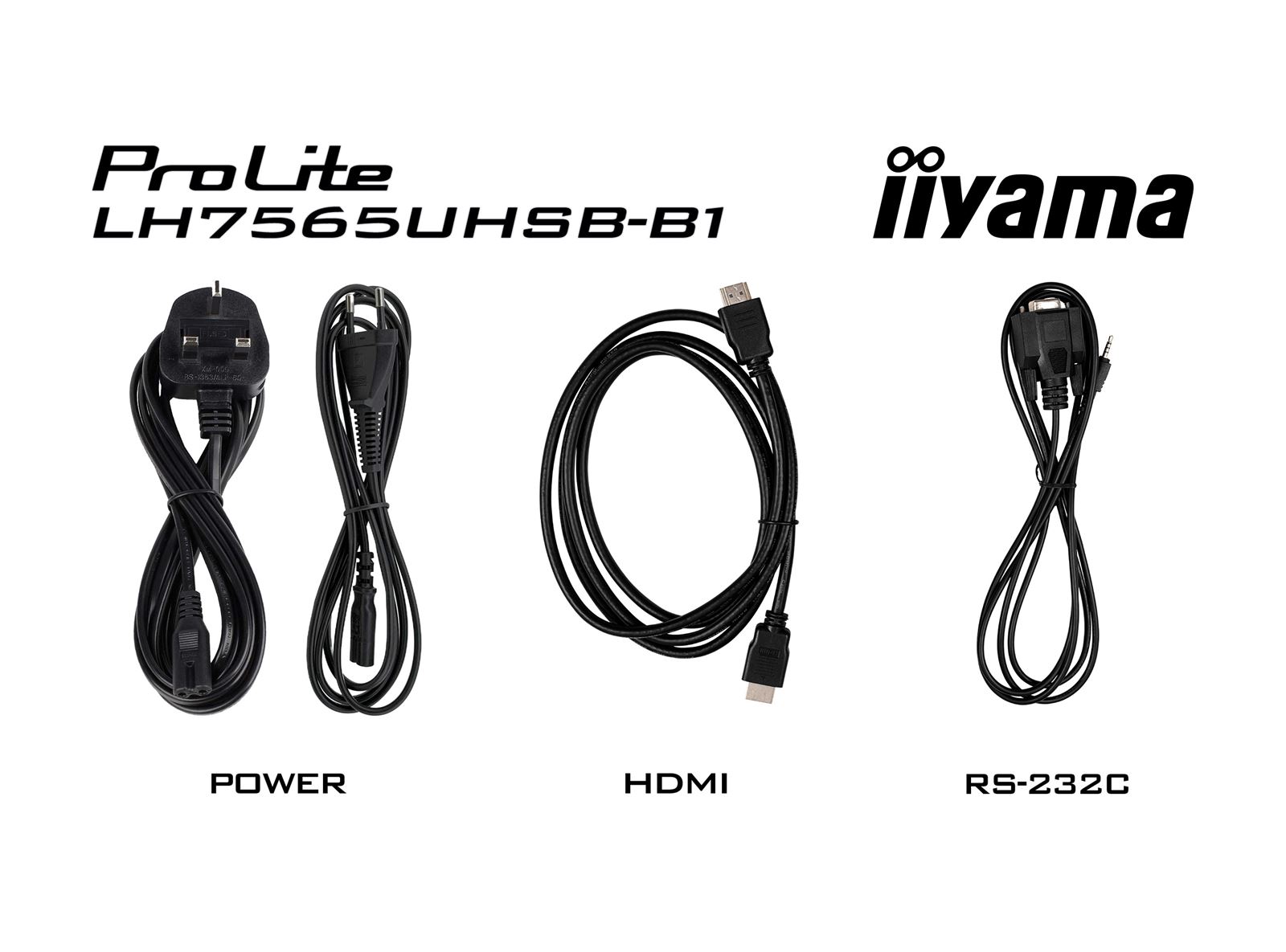

Cables power, HDMI, RS-232c
Guides quick start guide, safety guide

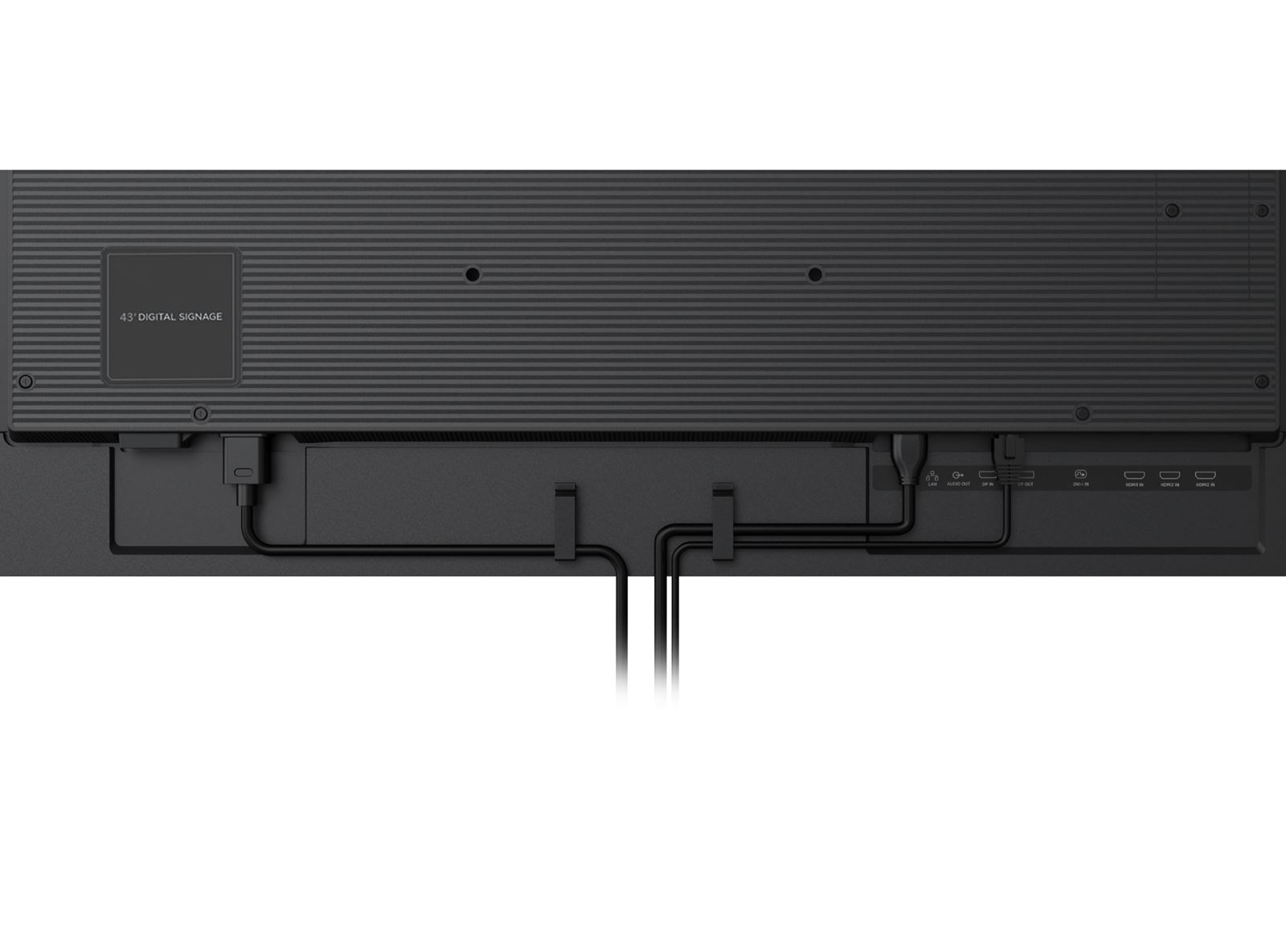

Other Stickers for screw holes, Adhesive clips for cable management, AC switch cover
Remote control yes (batteries included)

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 107W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E

 DIMENSIONS / WEIGHT

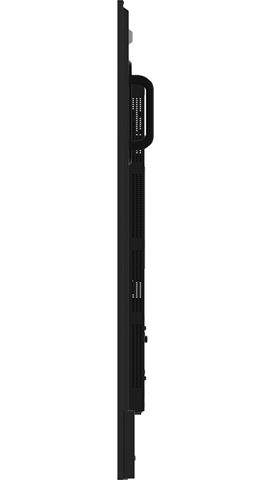

Product dimensions W x H x D 1679.5 x 958.5 x 55mm
Box dimensions W x H x D 1883 x 1140 x 186mm
Weight (without box) 29kg
Weight (with box) 40.5kg
EAN code 4948570123599
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

USB PLAYBACK

The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.

USB PLAYBACK

ULTRA SLIM LINE

ULTRA SLIM LINE

24/7

24/7 displays are designed for a continuous operation.



24/7

IPS TECHNOLOGY

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

IPS TECHNOLOGY

Media player LFD

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Media player LFD
