Brand: iiyama

Manufacturer Code: OPC51204BC-1

Product Description

An Intel® i5 OPS slot PC with Windows® 11 which supports 5K (5120x2160) resolution

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.

Compatible with TExx18MIS. TExx12MIS-B1 & TExx14MIS-B1 series Touch Display

Technical Information

 Device

Type OPS slot PC
CPU Intel® Core™ i5-12450H (12th Gen), TPM 2.0 (Trusted Platform Module)
RAM DDR4 3200MHz 8GB, Max. 32GB
SSD PCle 256GB M.2
Graphics Integrated Intel® UHD Graphics for 12th Gen Intel® Processors
Chipset Intel®
Sound card Integrated High Definition 100B Audio Stereo
Network 10/100/1000M Adapter
WiFi 802.11 a/b/g/n/ac/ax (Wifi 6)
Bluetooth 5.2
Operating system Windows 11 IoT Enterprise

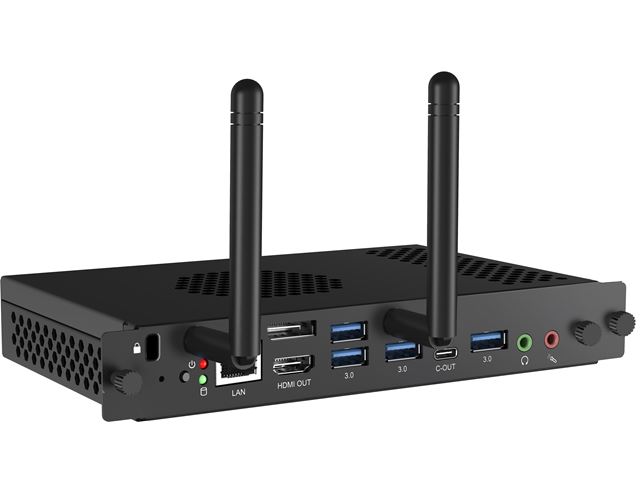

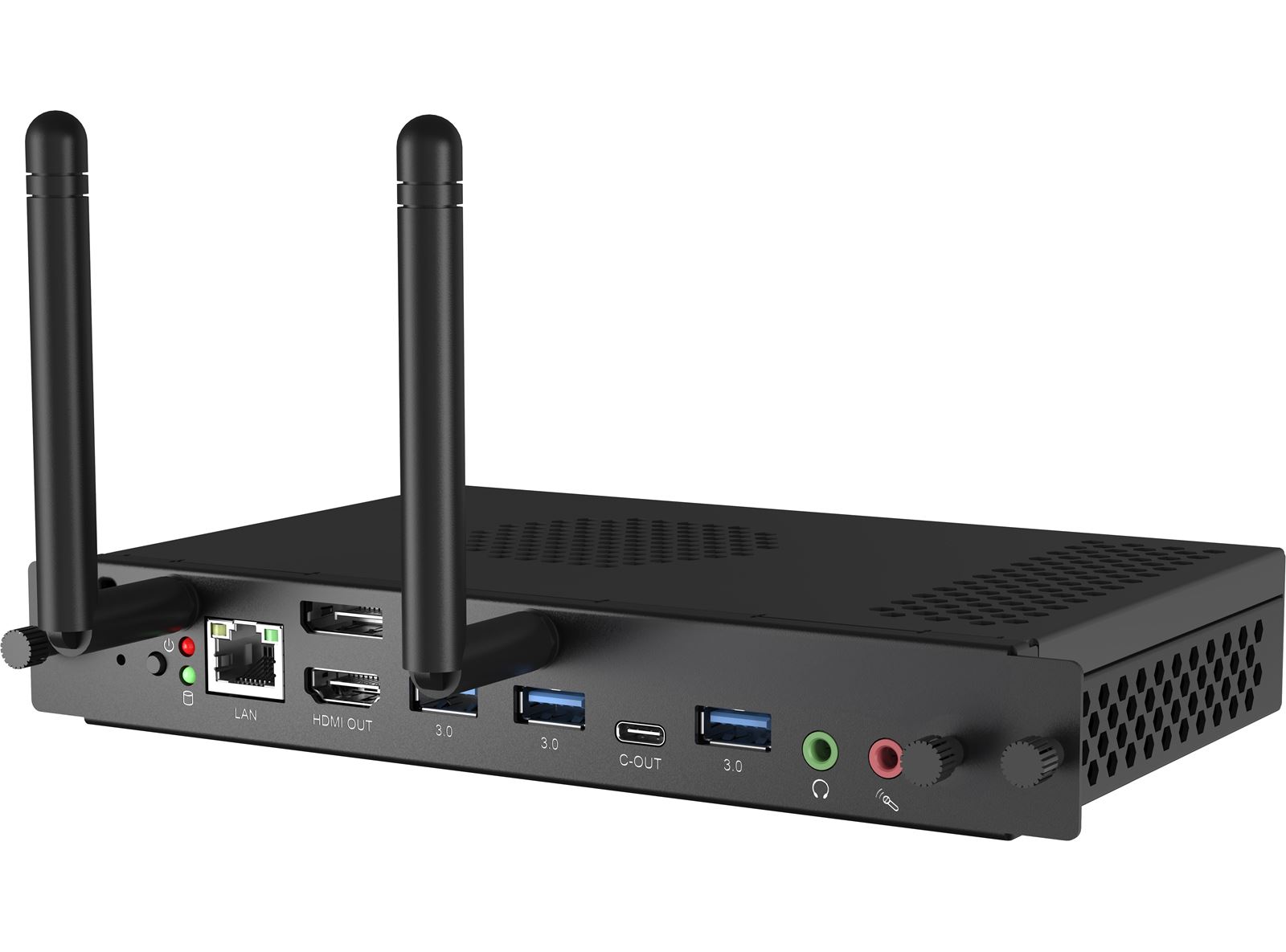

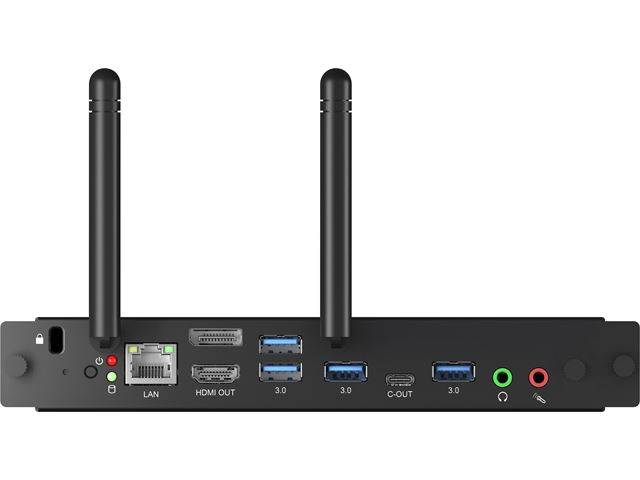

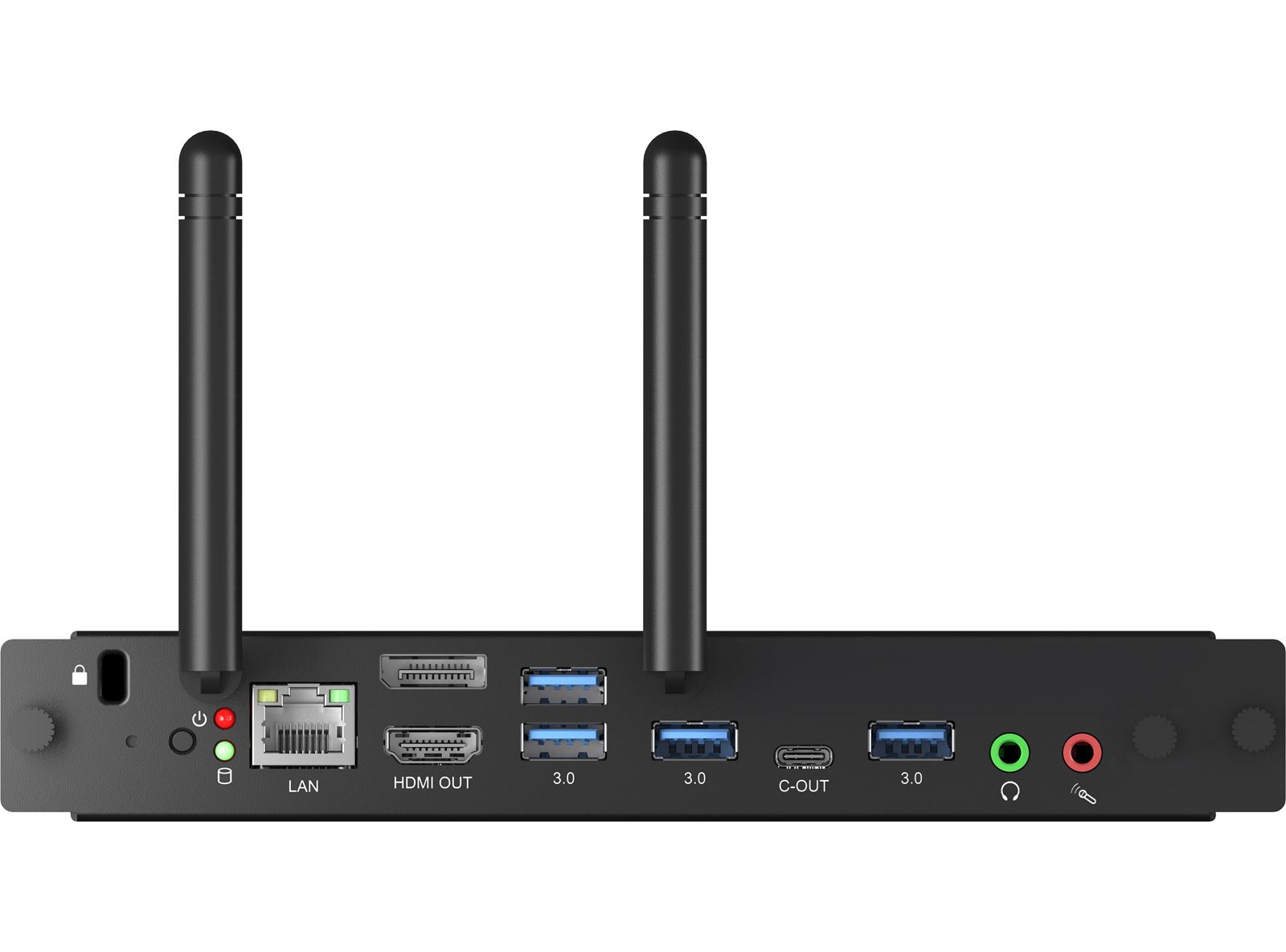

LAN (RJ45) x1
USB 3.0 x4, 3.2 (Type C) x1 (Not support DP Alt mode)
DisplayPort Out x1, DP1.4 (Max resolution 3840 x 2160 60Hz)
HDMI Out x1, HDMI2.0 (Max resolution 3840 x 2160 60Hz)
Headphone connector yes
Microphone In x1
Audio 1x Audio out

 POWER MANAGEMENT

Power usage 80.7W typical, 2.9W stand by

 DIMENSIONS / WEIGHT

Product dimensions L x W x H 180 x 119 x 30mm
Box dimensions W x H x D 260 x 192 x 72mm
Weight (without box) 0.60kg
Weight (with box) 0.957kg
EAN code 4948570033331

 Environmental conditions

Operation temperature range 0°C - 45°C
Operation humidity 10% - 95%
Storage temperature range - 10°C - 50°C
Storage humidity 10% - 95%
