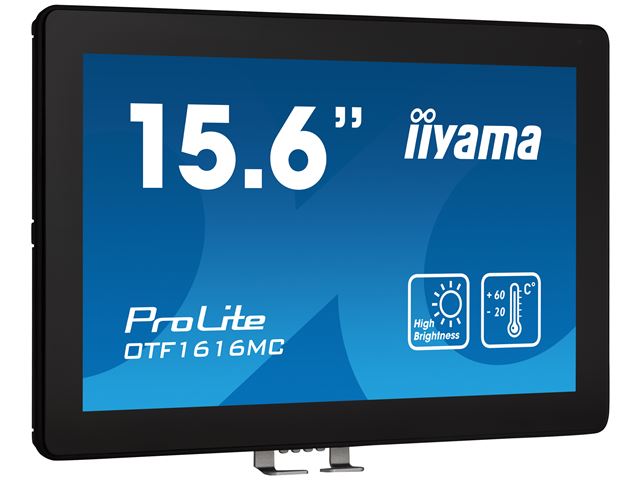

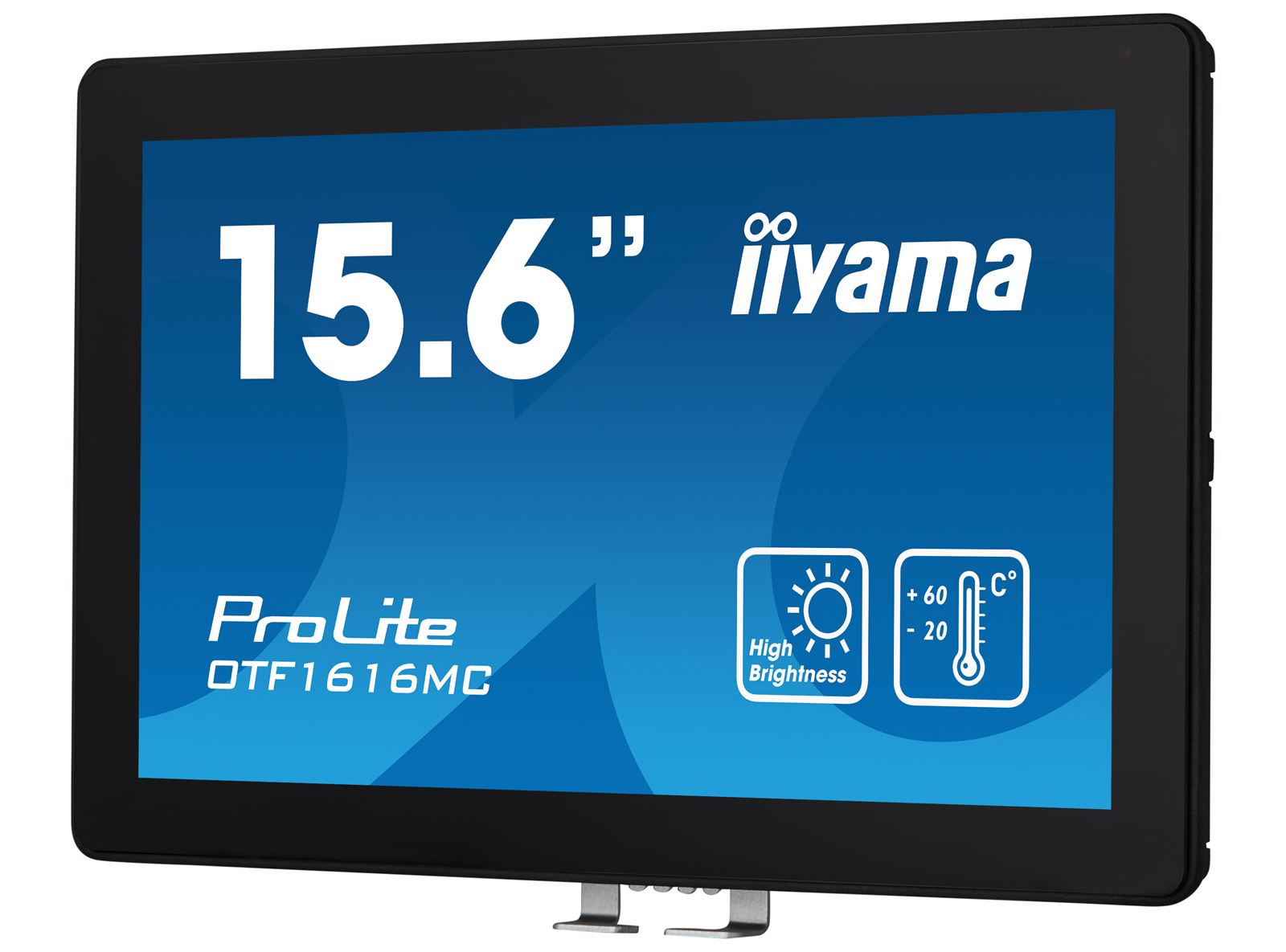

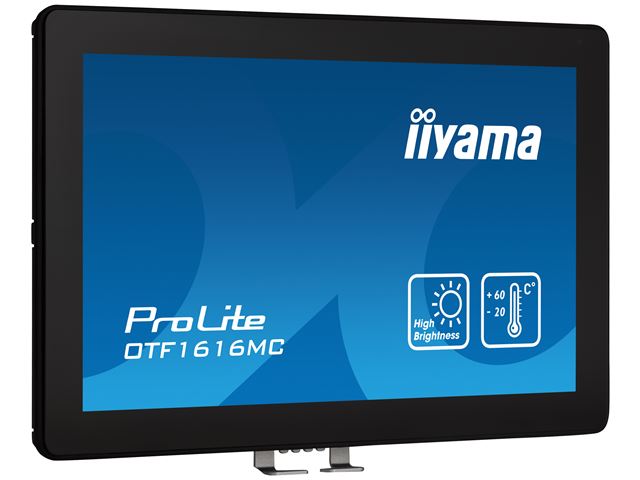

iiyama ProLite monitor OTF1616MC-B1 15.6", PCap 10pt touch for semi-outdoor applications, High Brightness, Smart sensors, Environmental Resistance, Scratch resistant, Anti-fingerprint coating, landscape/portrait/face-up

Name: iiyama ProLite monitor OTF1616MC-B1 15.6", PCap 10pt touch for semi-outdoor applications, High Brightness, Smart sensors, Environmental Resistance, Scratch resistant, Anti-fingerprint coating, landscape/portrait/face-up
Brand: iiyama
SKU: OTF1616MC-B1
Price: 788.04 GBP
Availability: InStock

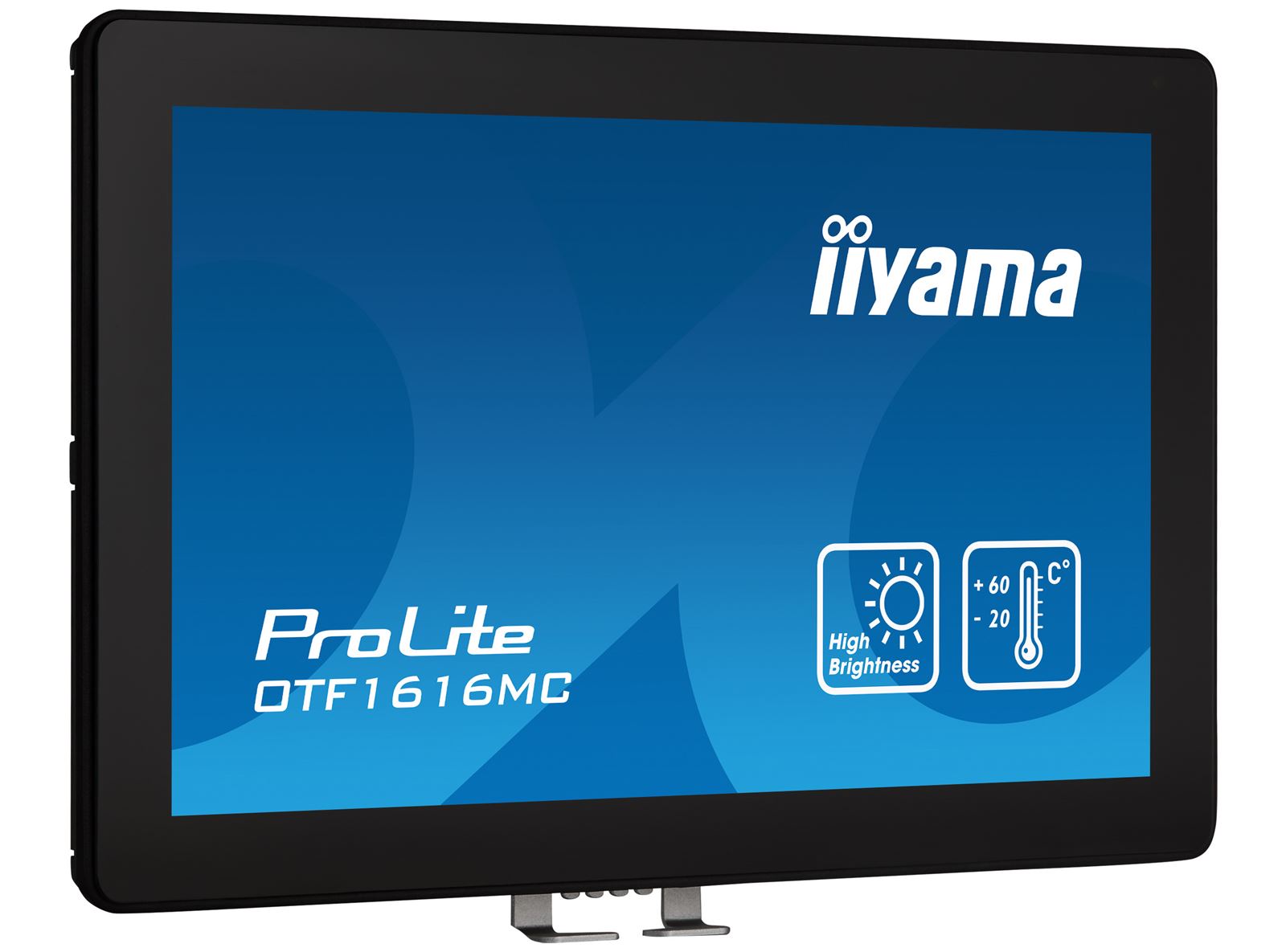

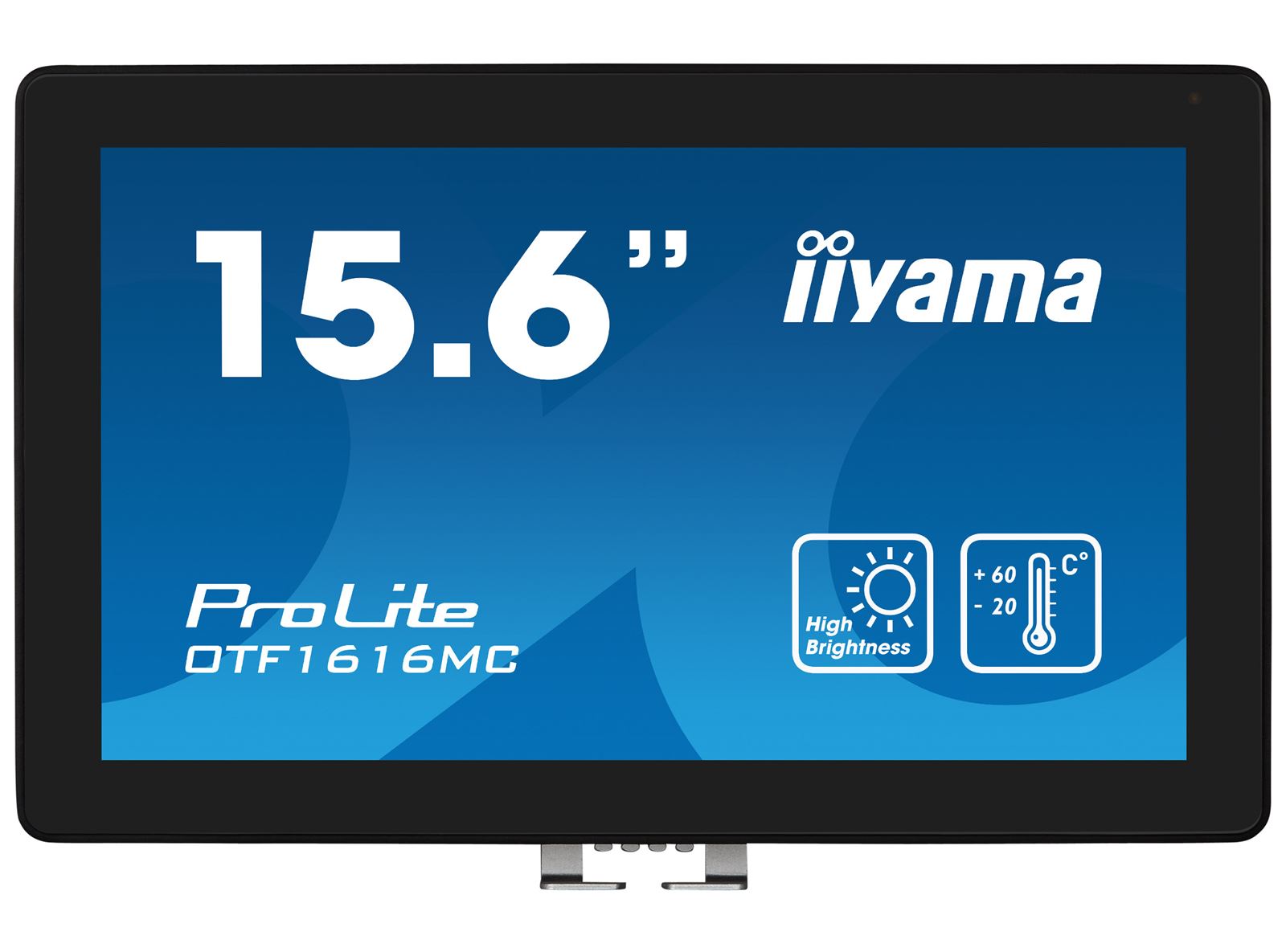

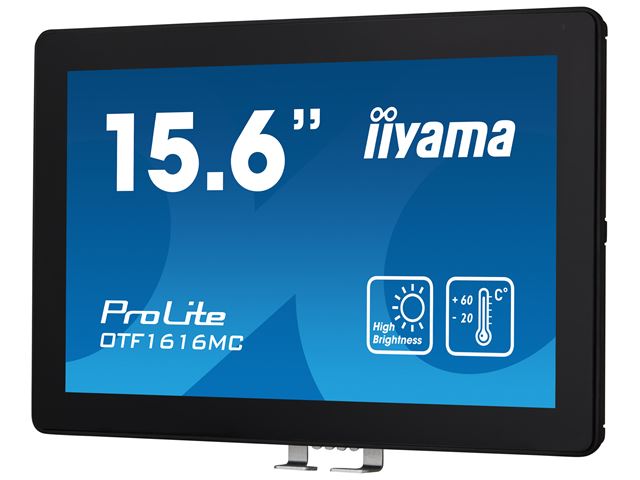

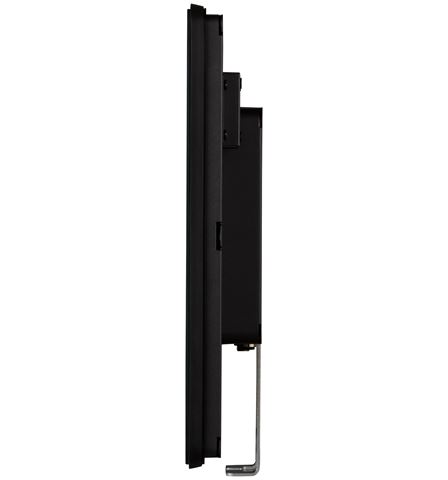

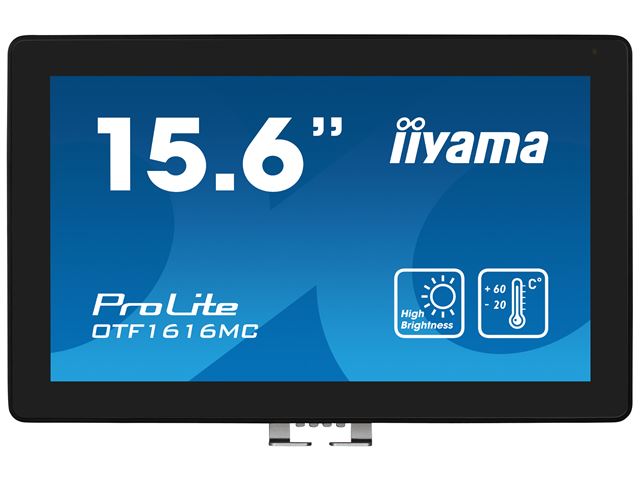

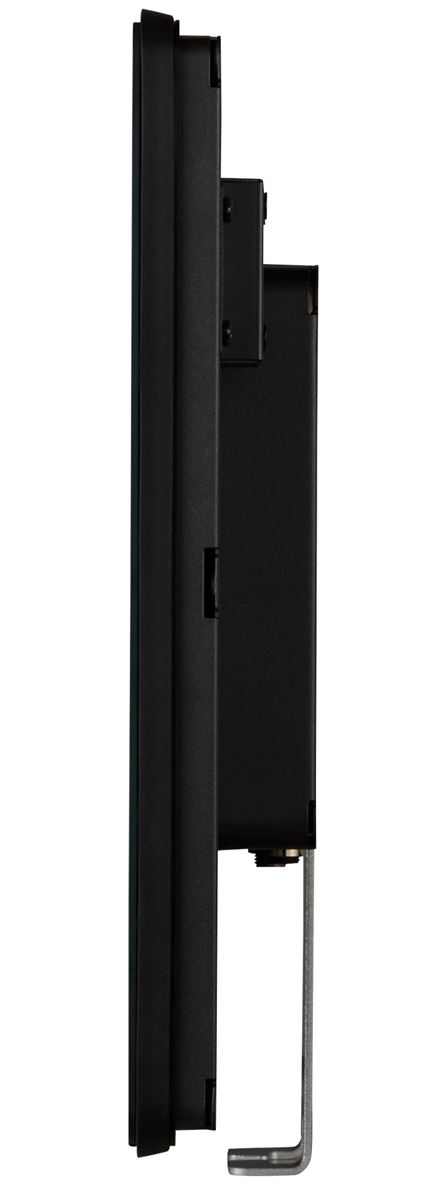

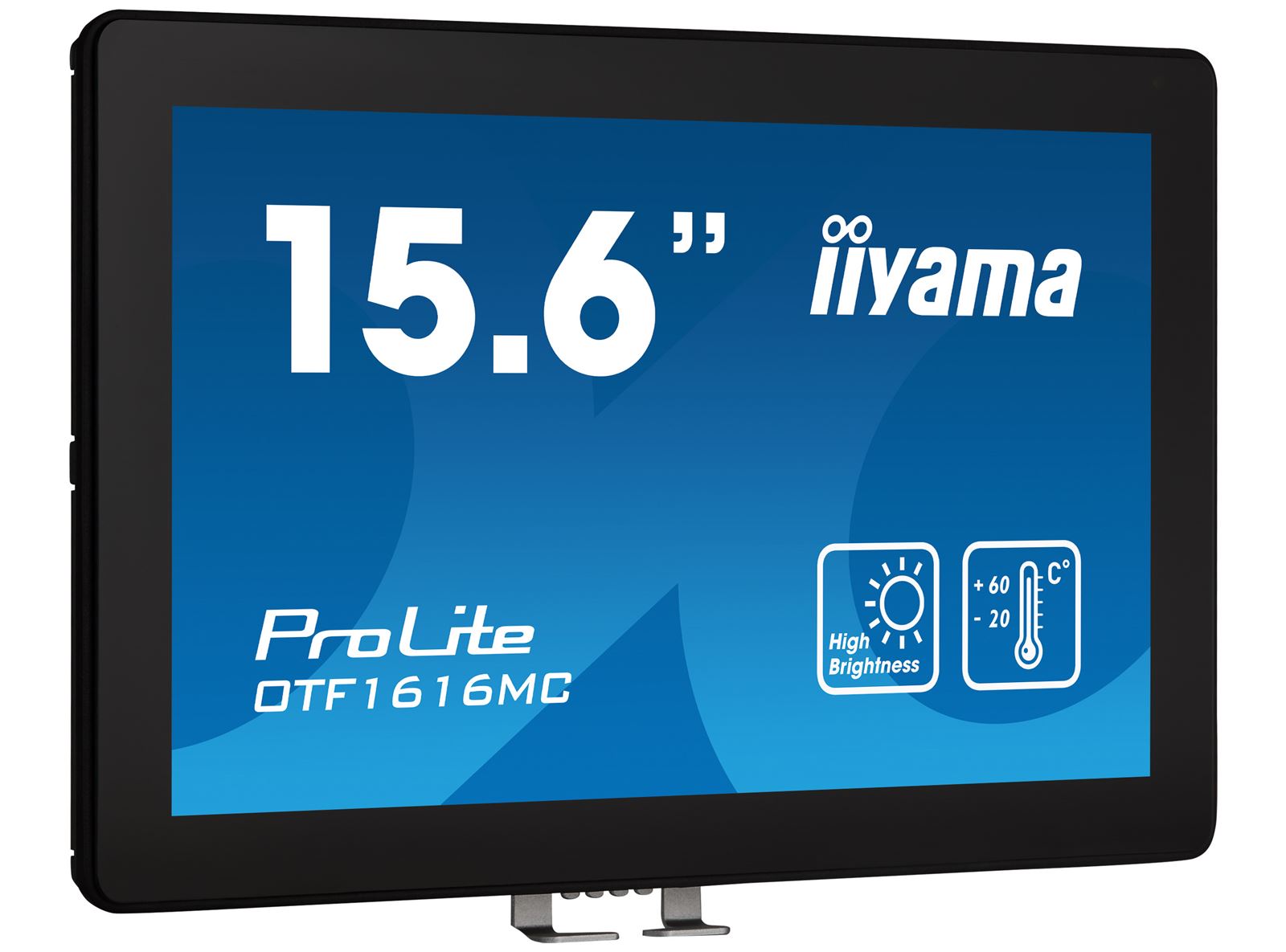

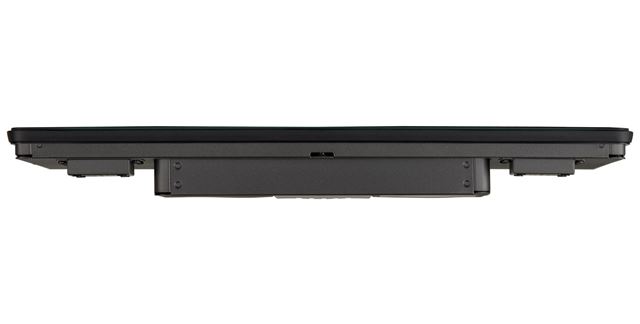

iiyama ProLite monitor OTF1616MC-B1 15.6", PCap 10pt touch for semi-outdoor applications, High Brightness, Smart sensors, Environmental Resistance, Scratch resistant, Anti-fingerprint coating, landscape/portrait/face-up image 0

£656.70 exc. VAT

£788.04 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: OTF1616MC-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applications

Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C.

The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets (OMK5-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.

Technical Information

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	15.6", 39.5cm
Panel	VA
Native resolution	1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio	16:9
Panel brightness	1100 cd/m²
Brightness	935 cd/m² with touch
Light transmittance	85%
Static contrast	800:1
Response time (BTB)	25ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.2mln (6bit + Hi-FRC)
Horizontal Sync	31.5 - 67.5kHz
Viewable area W x H	345.2 x 194.6mm, 13.6 x 7.7"
Pixel pitch	0.179mm
Bezel colour and finish	black

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

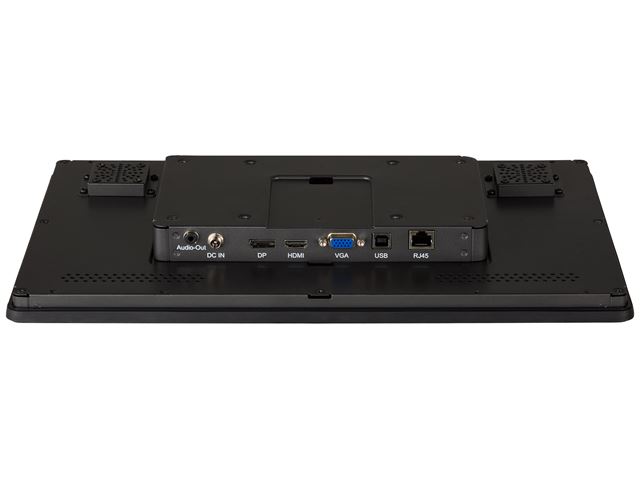

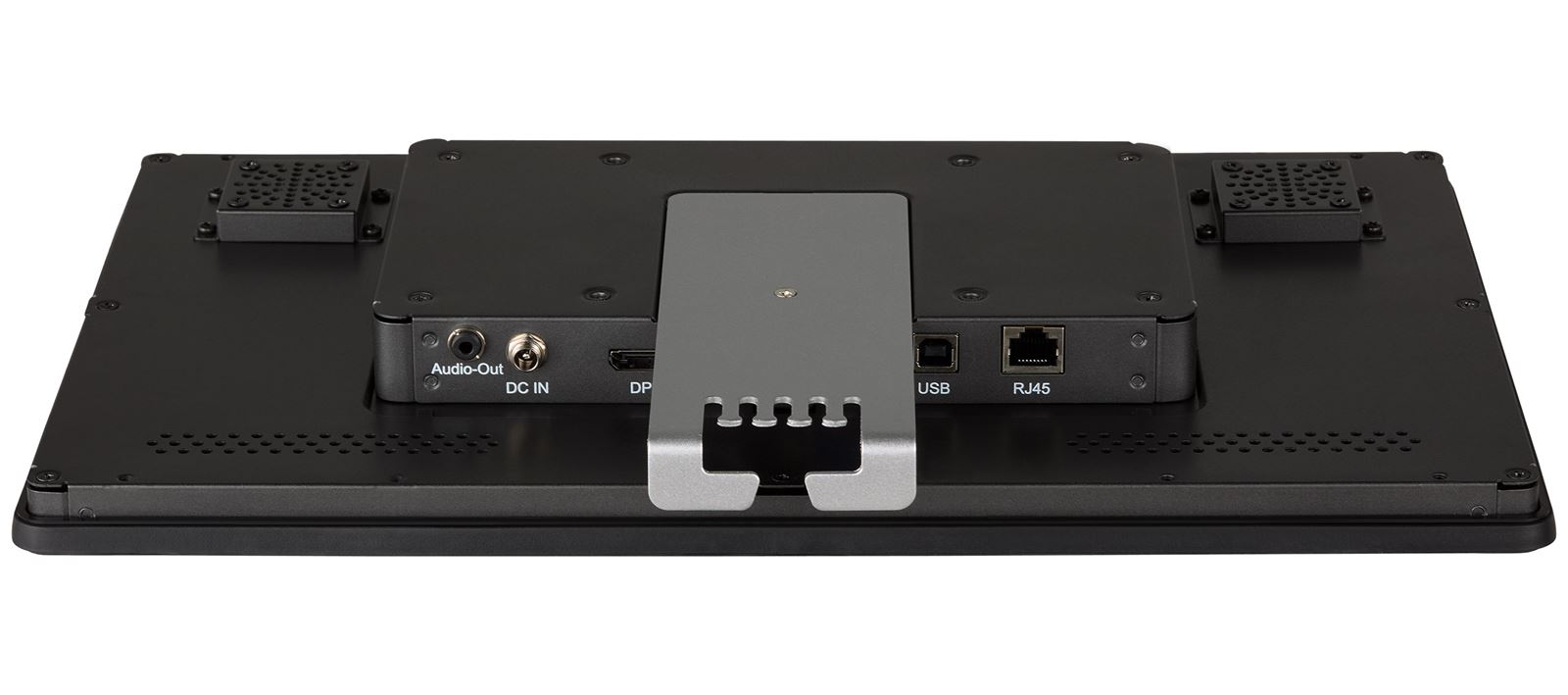

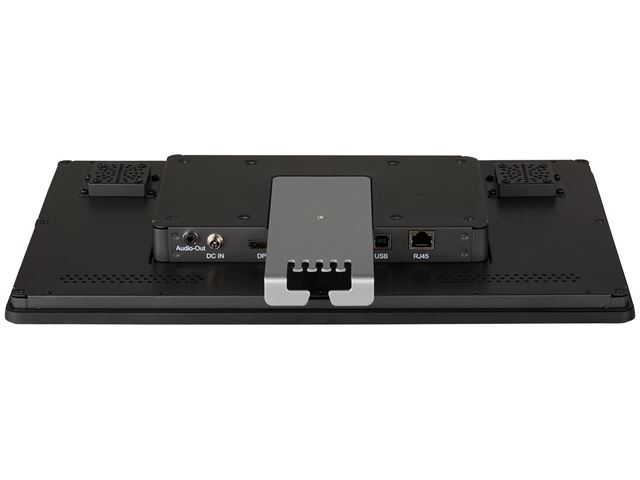

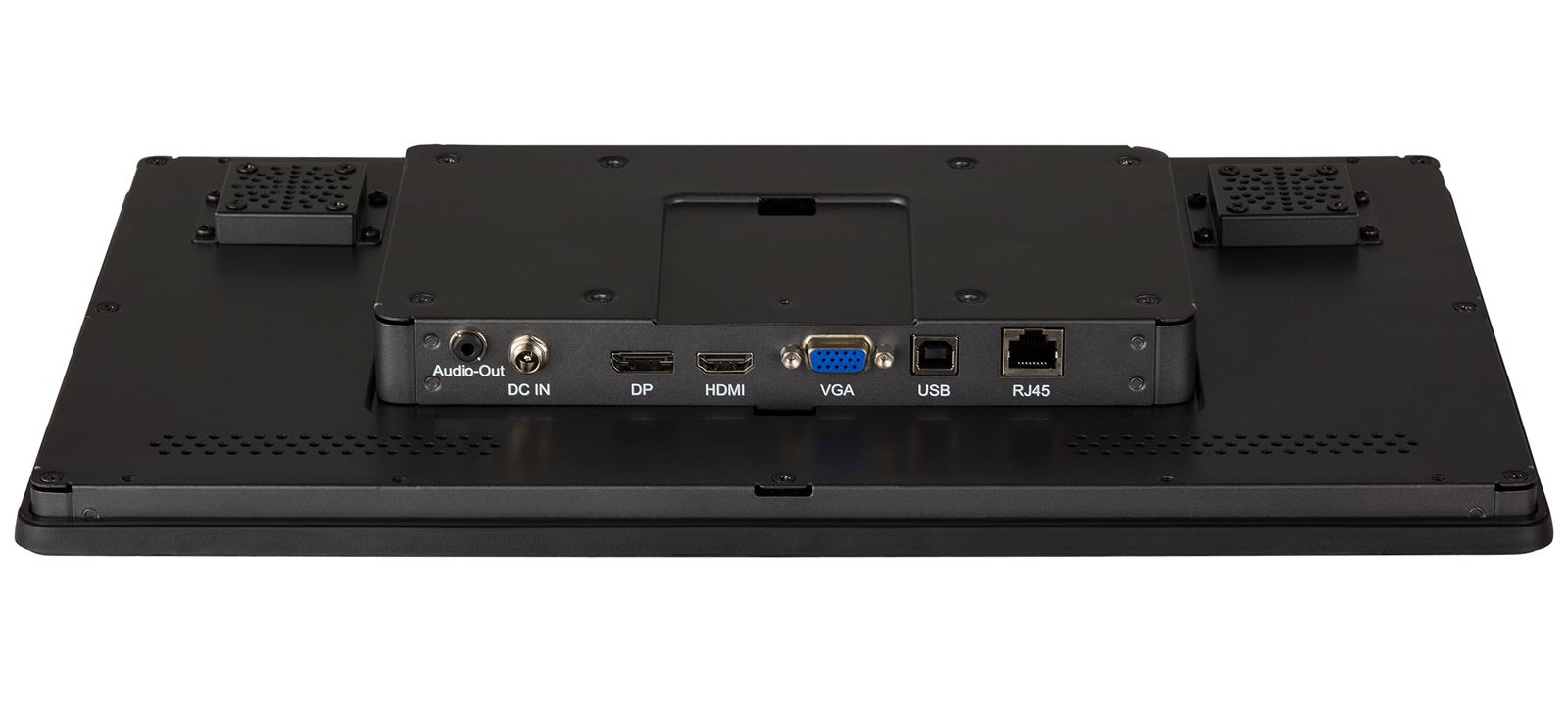

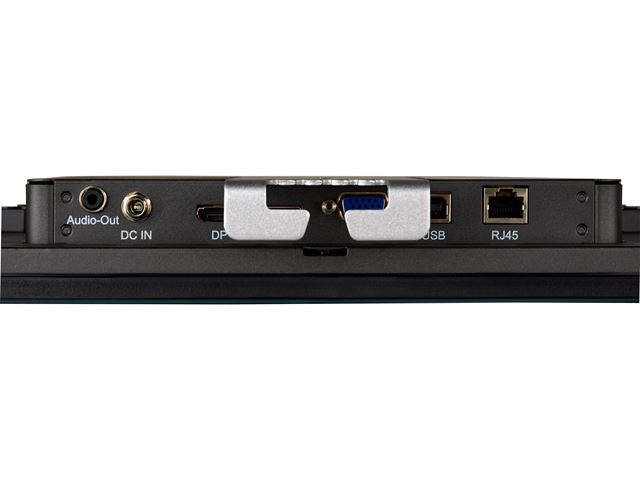

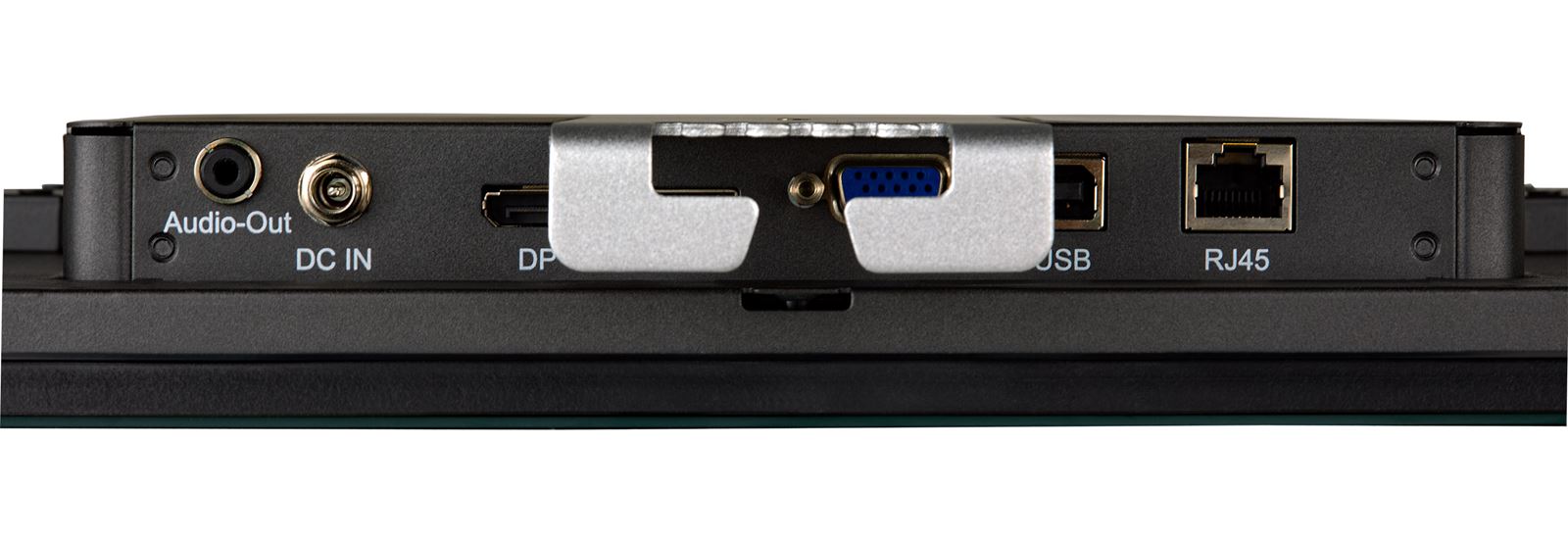

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
Monitor control input	RJ45 (LAN) x1
Audio output	Mini jack x1
HDCP	yes

FEATURES

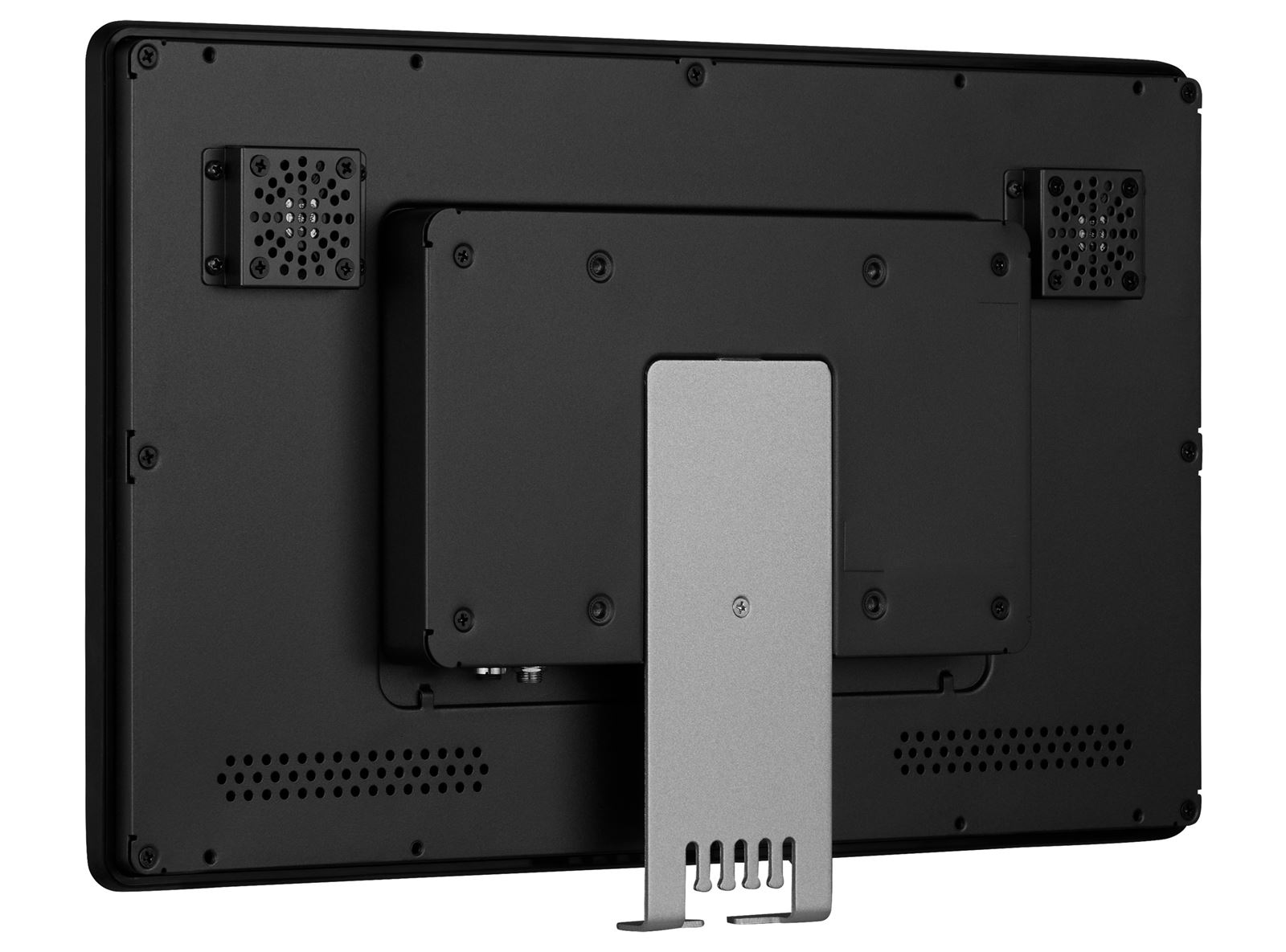

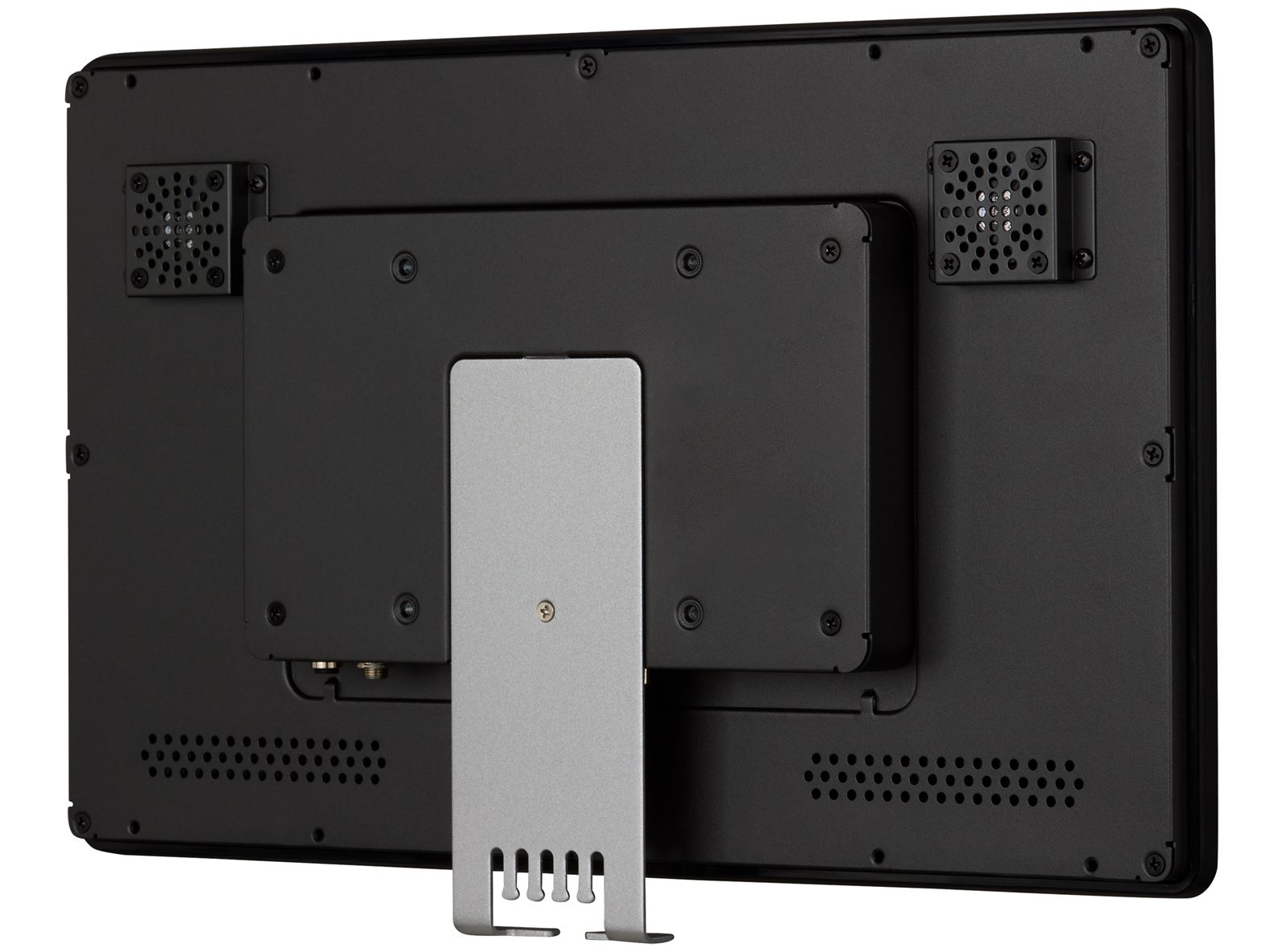

Extra	anti-fingerprint coating, touch through-glass, UV resistance, ambient light sensor, proximity sensor, auto FAN control for cooling
Glass thickness	3.15mm
Glass hardness	7H
60950 Ball drop test	yes
Water and dust protection	IP65 (front)
Water tight seal	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up

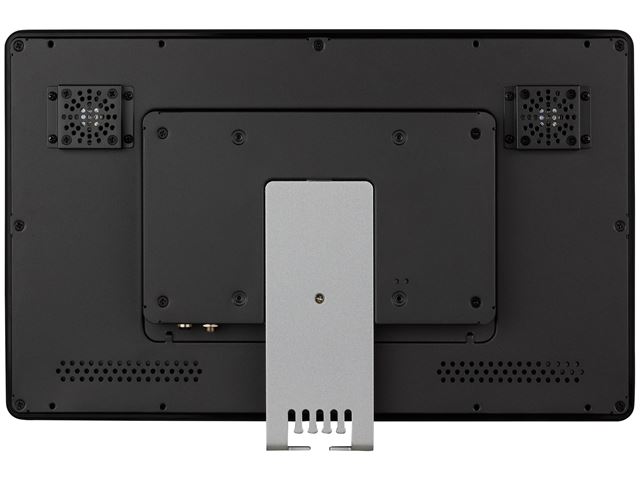

VESA mounting	100 x 100mm
Operation temperature range (-°/+°)	-20°C - 60°C
MTBF	60000 hours

ACCESSORIES INCLUDED

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, External control pad (remote)
Cable cover	yes

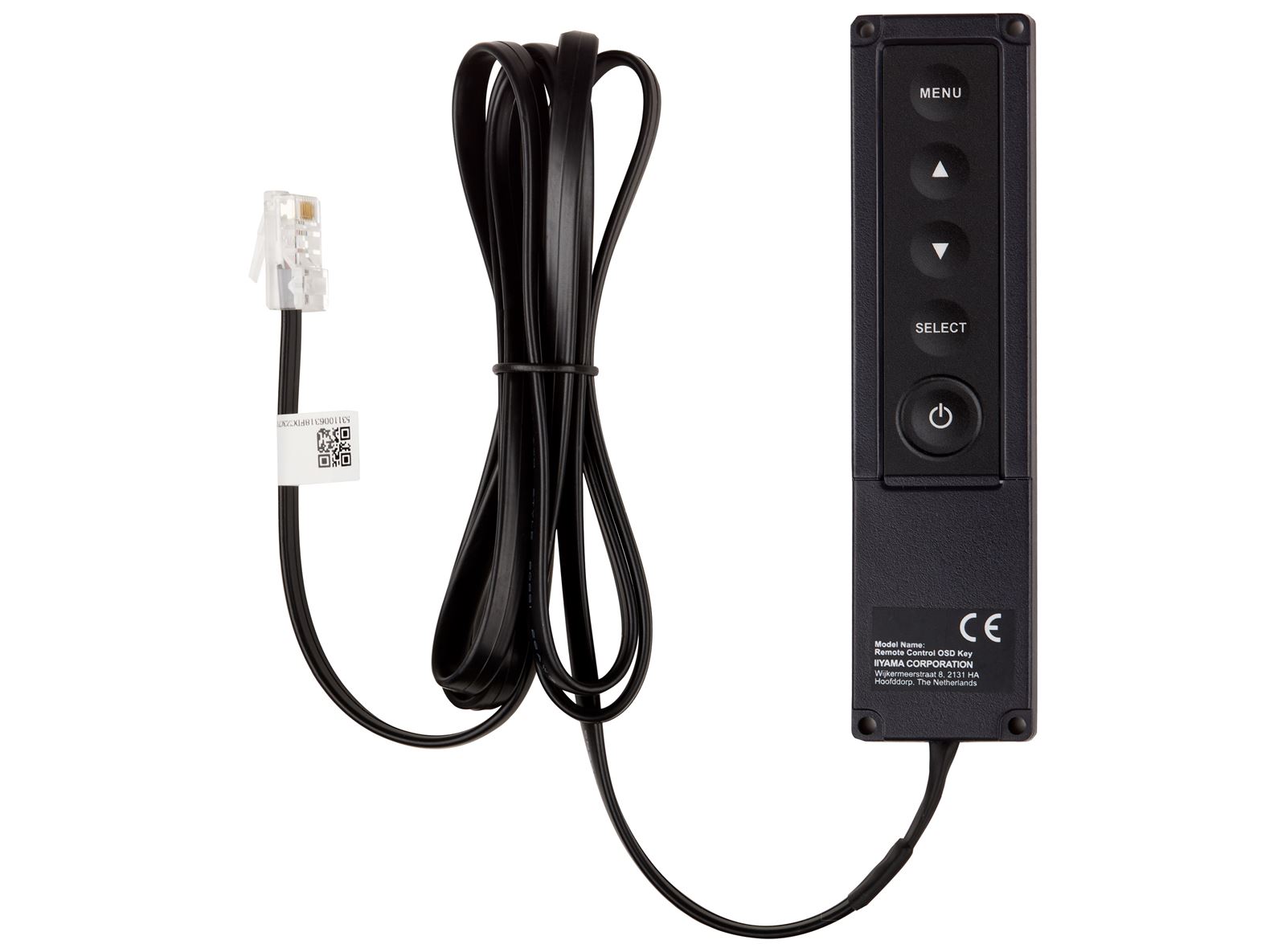

Remote control	external control pad

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	24W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)	E
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	398.5 x 246 x 42mm
Box dimensions W x H x D	485 x 370 x 150mm
Weight (without box)	3kg
Weight (with box)	4.62kg
EAN code	4948570123742

Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

OPEN FRAME LFD

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
