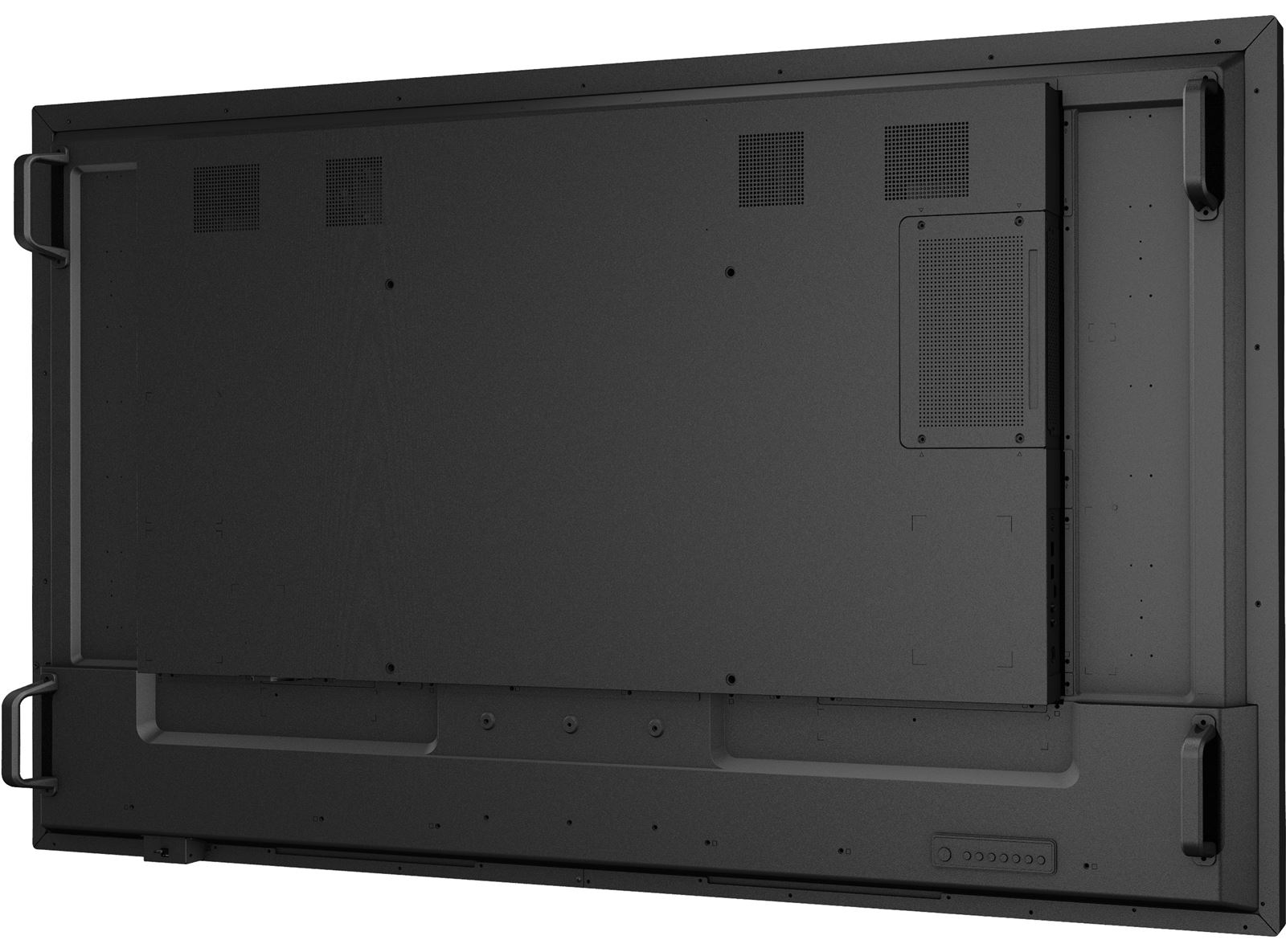

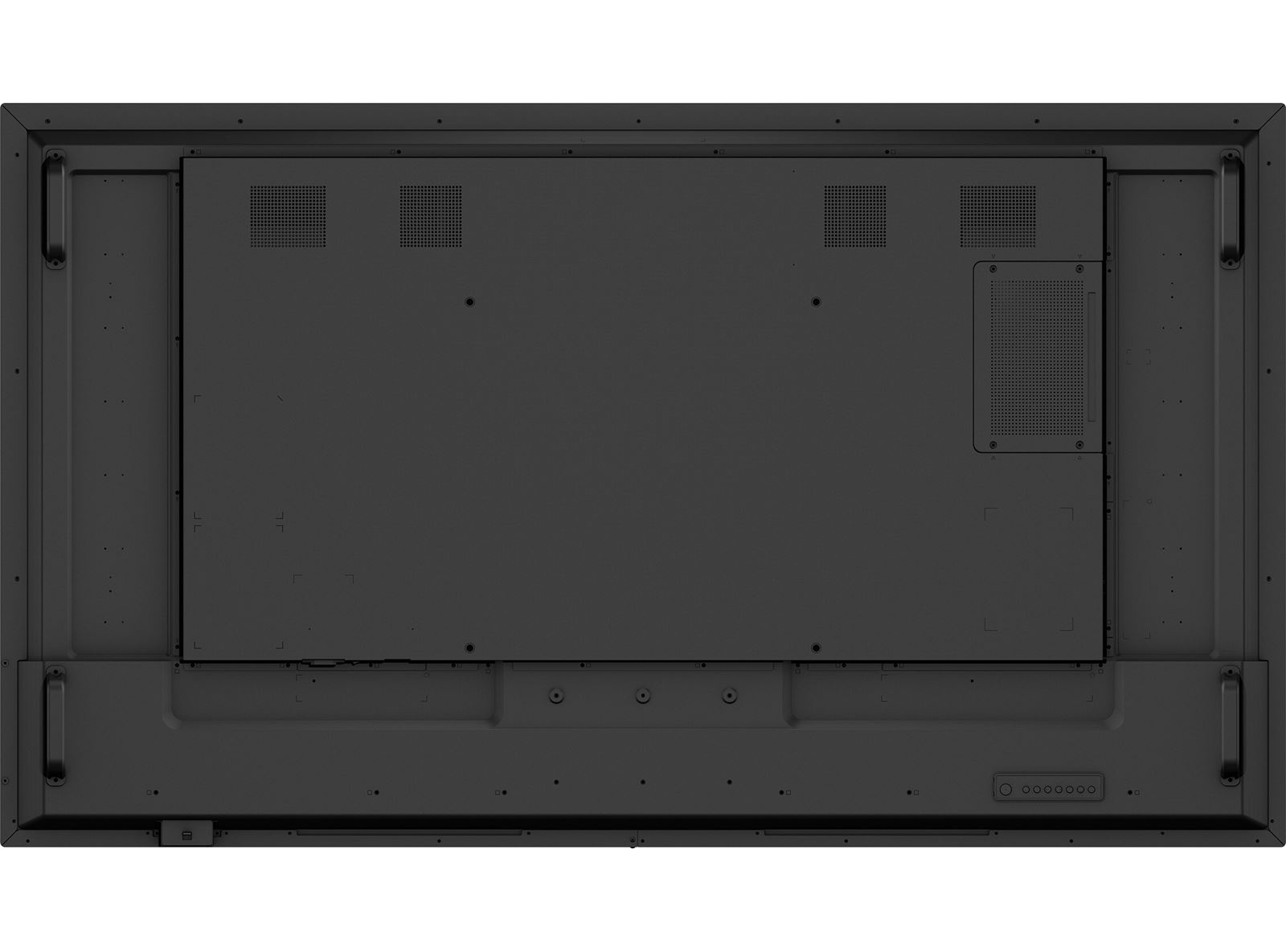

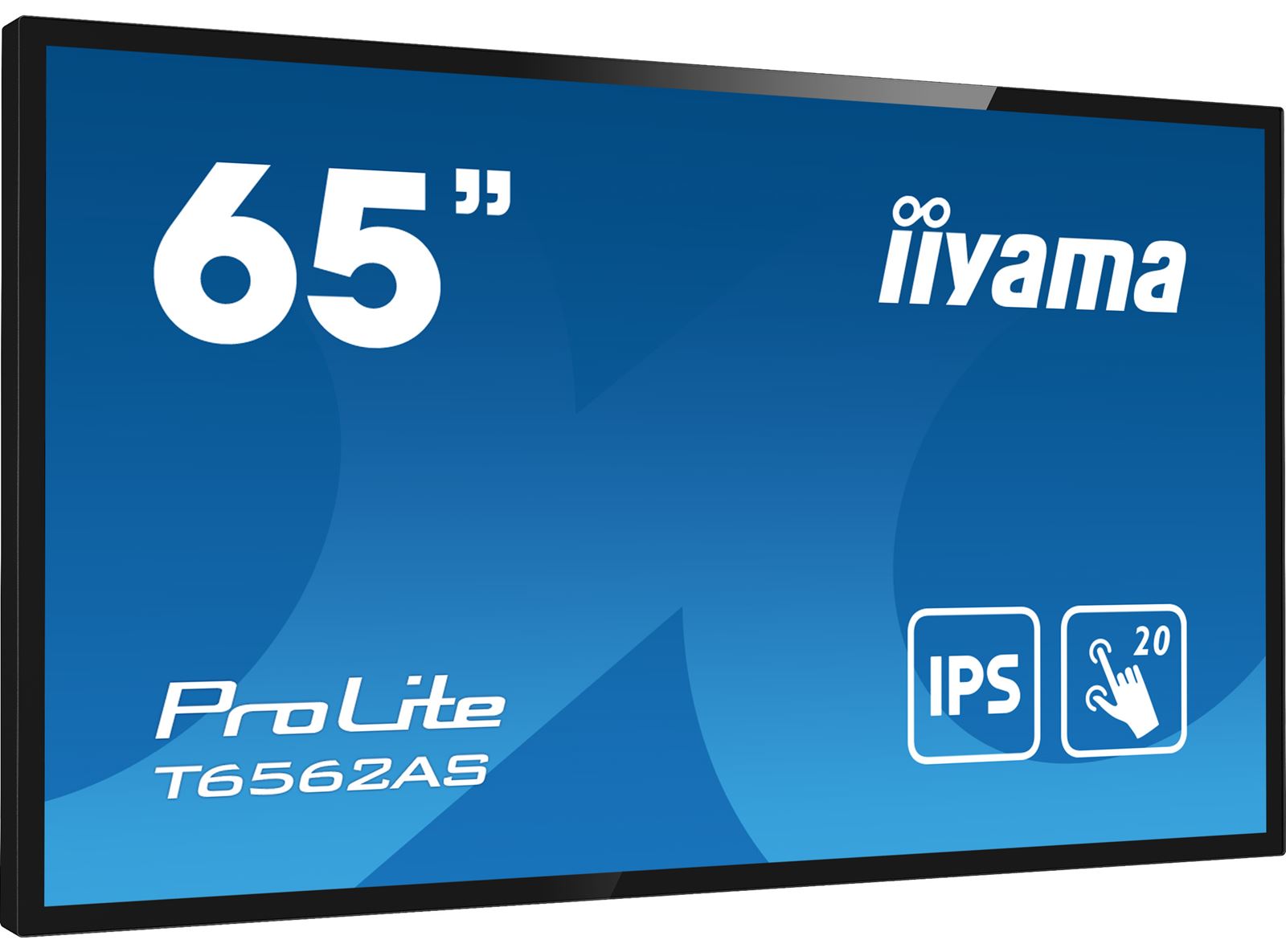

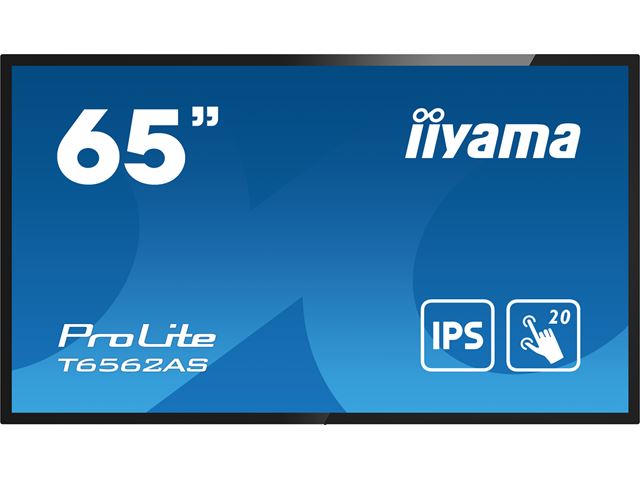

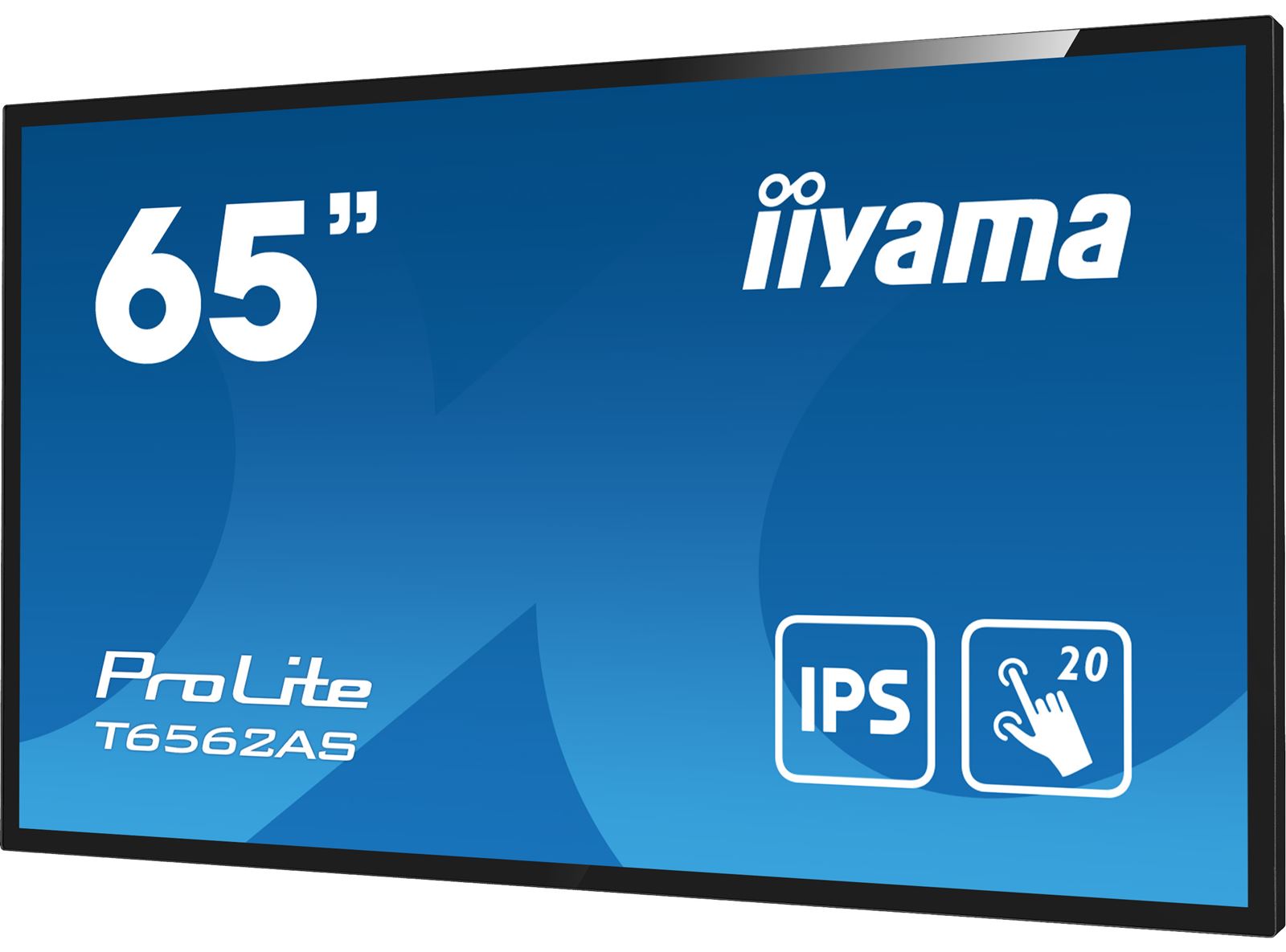

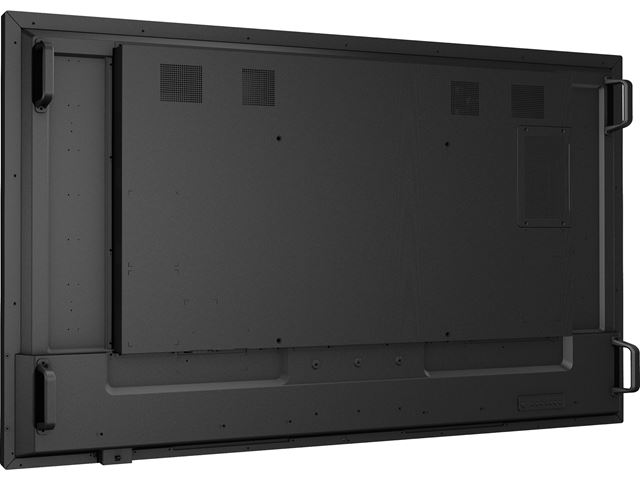

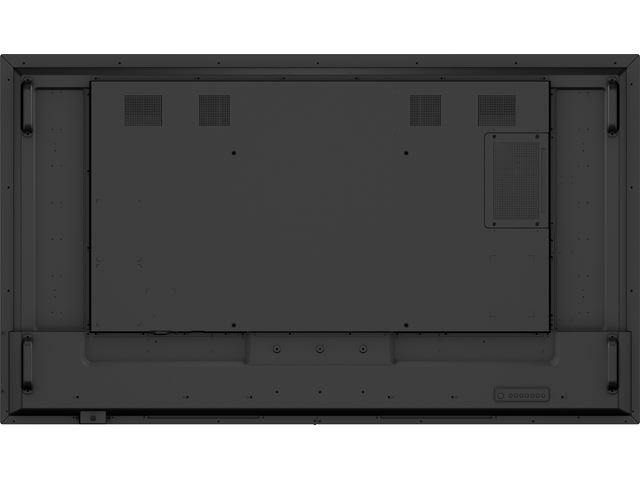

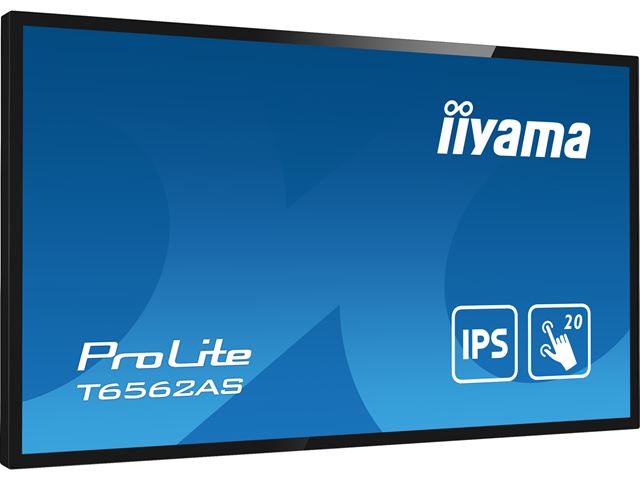

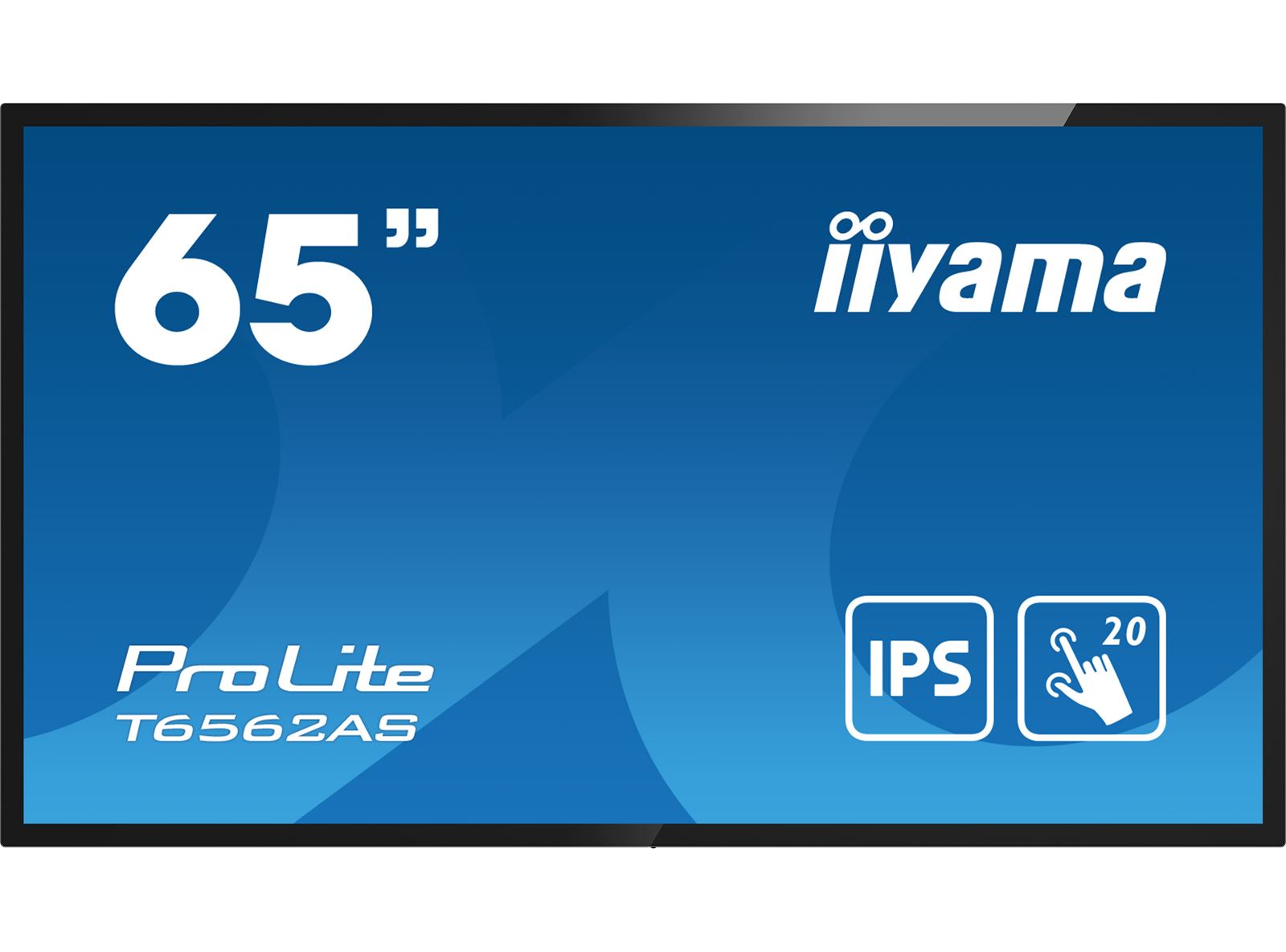

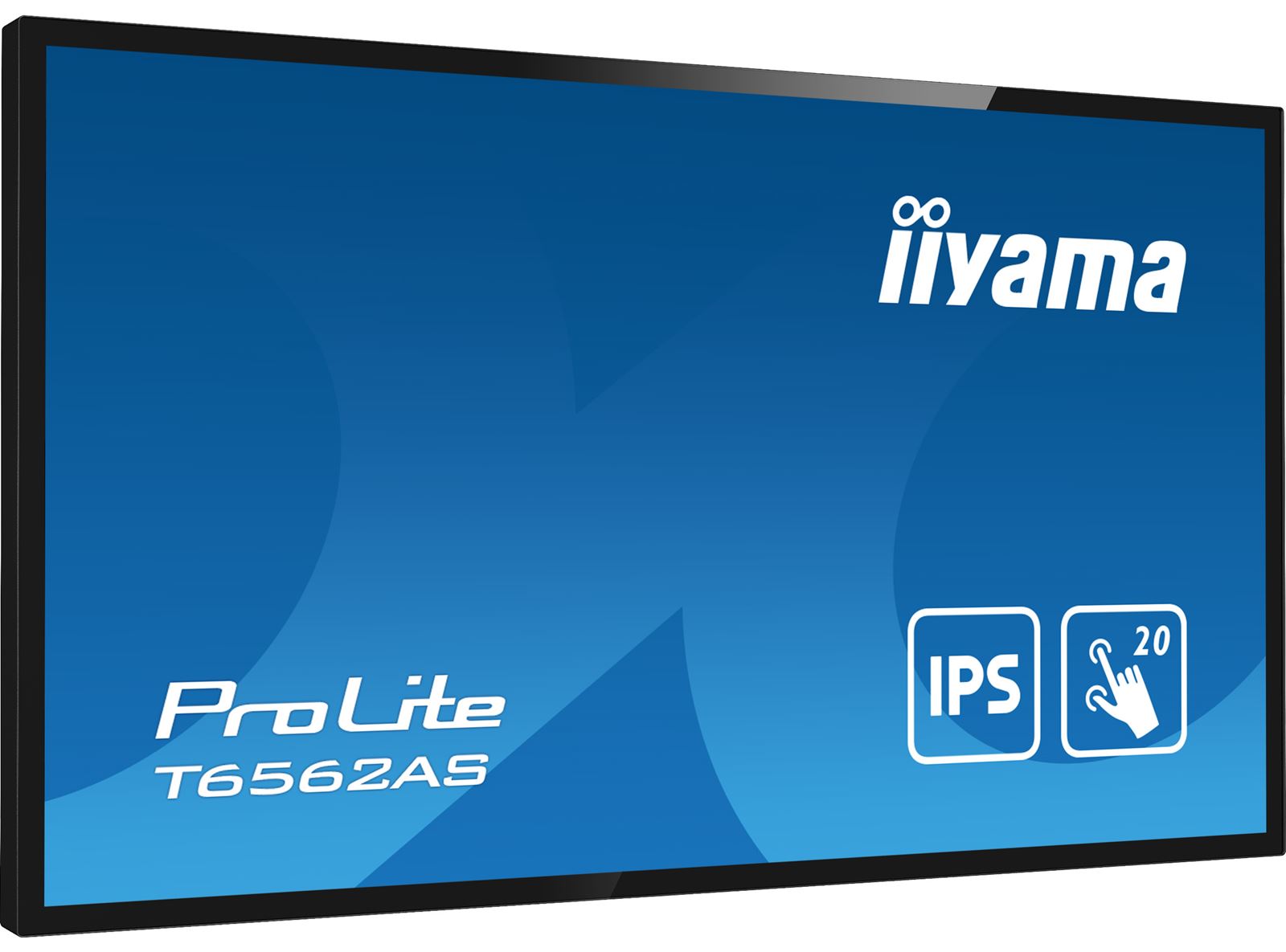

iiyama ProLite T6562AS-B1 65", 4k UHD, Integrated annotation software, PCAP 20pt touch, IPS, 24/7, HDMI, Anti-Glare

£2,451.78 exc. VAT
£2,942.14 inc. VAT

Brand: iiyama

Manufacturer Code: T6562AS-B1

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing.

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

The refined design of the T6562AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

Technical Information

DISPLAY CHARACTERISTICS

Diagonal 64.5", 164cm
Panel IPS LED, AG Coating
Native resolution 3840 x 2160 (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Light transmittance 80%
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 803.5 x %2mm, 56.2 x 31.6"
Pixel pitch 0.372mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 20
Touch method finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x3 (3480x2160@60Hz)
Monitor control input RS-232c x1
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Audio output Speakers 2 x 10W
Monitor control output IR loop through x1 (3.5mm stereo mini)
HDCP 2.2
USB ports x2 (2.0 with Multimedia supp.)
RS-232c x1

FEATURES

Integrated software Android 8.0, Signal FailOver
CPU CA73*2 + A53*2
GPU MALI G51
Storage 16GB eMMC
Memory 2GB RAM + 1GB Embedded
Extra Micro SD card slot
Kiosk mode yes
Max. non-stop operating time 24/7
Anti image retention yes

GENERAL

OSD languages EN, DE, FR, ES, RU, JP, NL, PL
Control buttons Power, Mute, Input select, +, -, Up, Down, Menu
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction gamma selection, colour temp., colour control, smart power, overscan, reset), screen (zoom mode, custom zoom, reset), audio (balance, treble, bass, volume, max. volume, min. volume, mute, reset), configuration1 (switch on state, panel saving, RS32-routing, boot on source, WOL, RGB range, reset, factory reset), configuration2 (OSD turn off, OSD H position, OSD V position, system rotation, information OSD, logo, monitor ID, heat status, monitor info, HDMI version, reset), advanced option (IR control, power LED light, keyboard control, off timer, date and time, schedule, HDMI with One Wire, auto signal detection, language, OSD transparency, power save, reset), Android settings, display mode

MECHANICAL

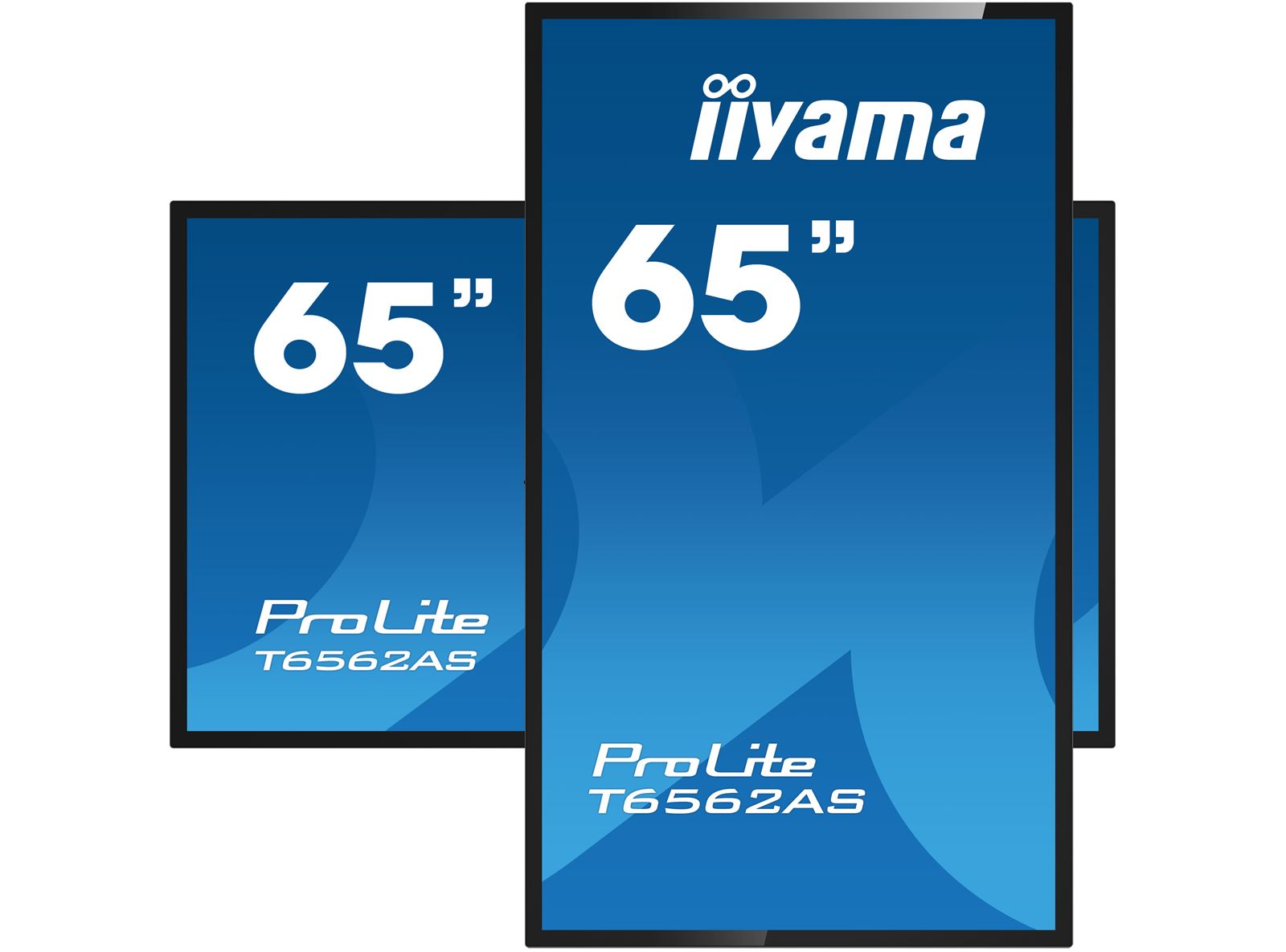

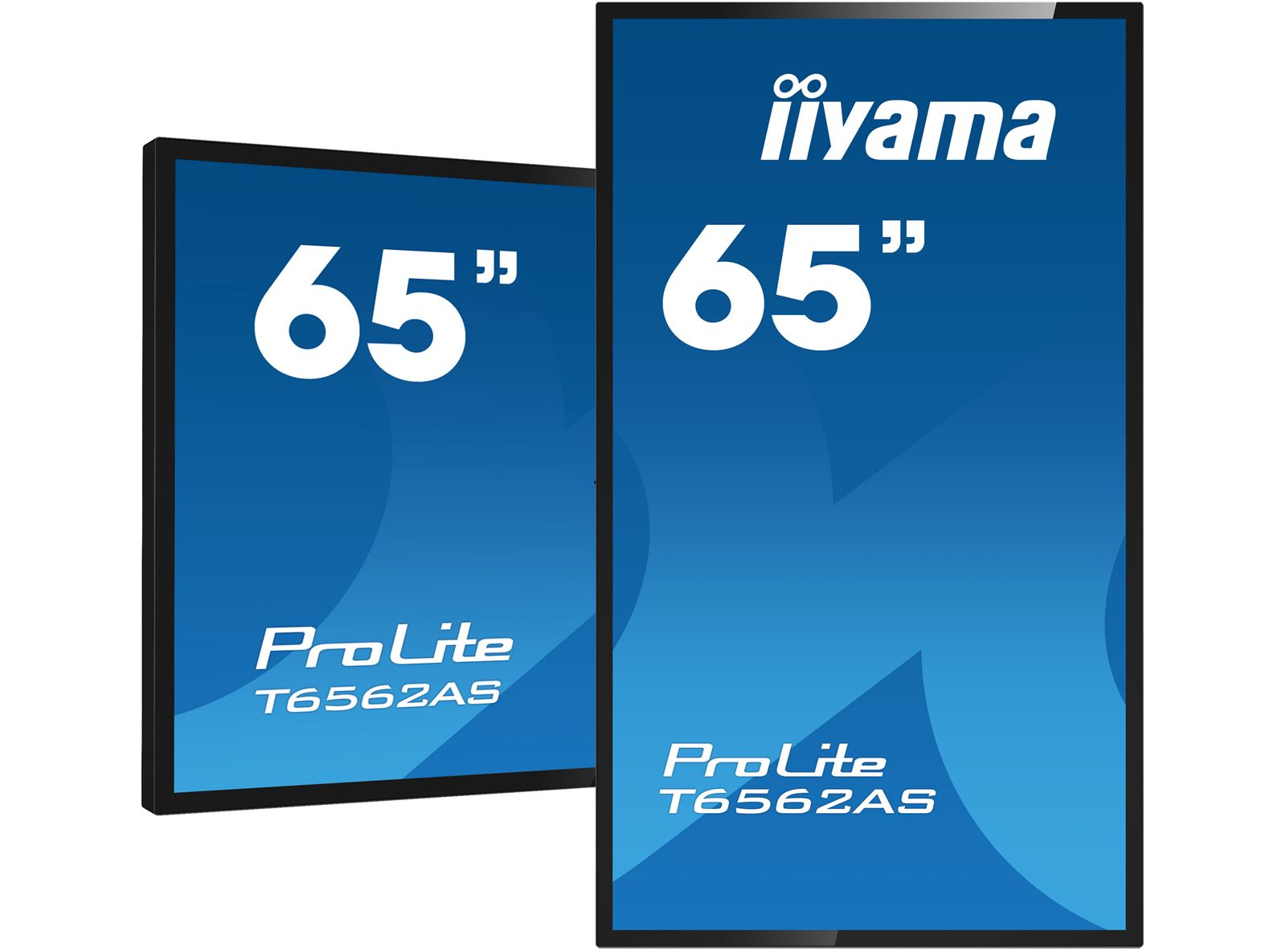

Orientation landscape, portrait

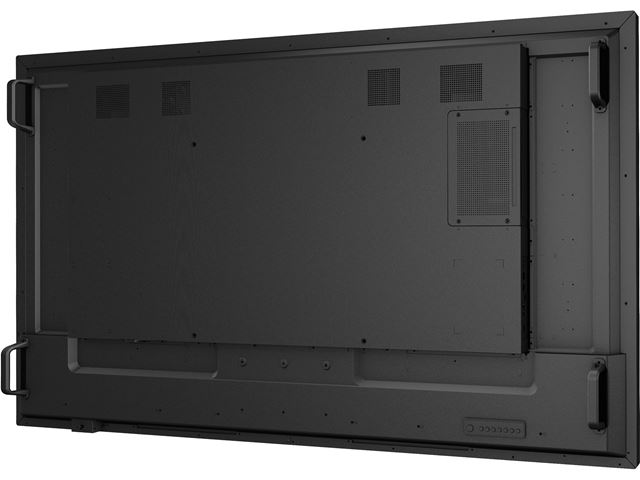

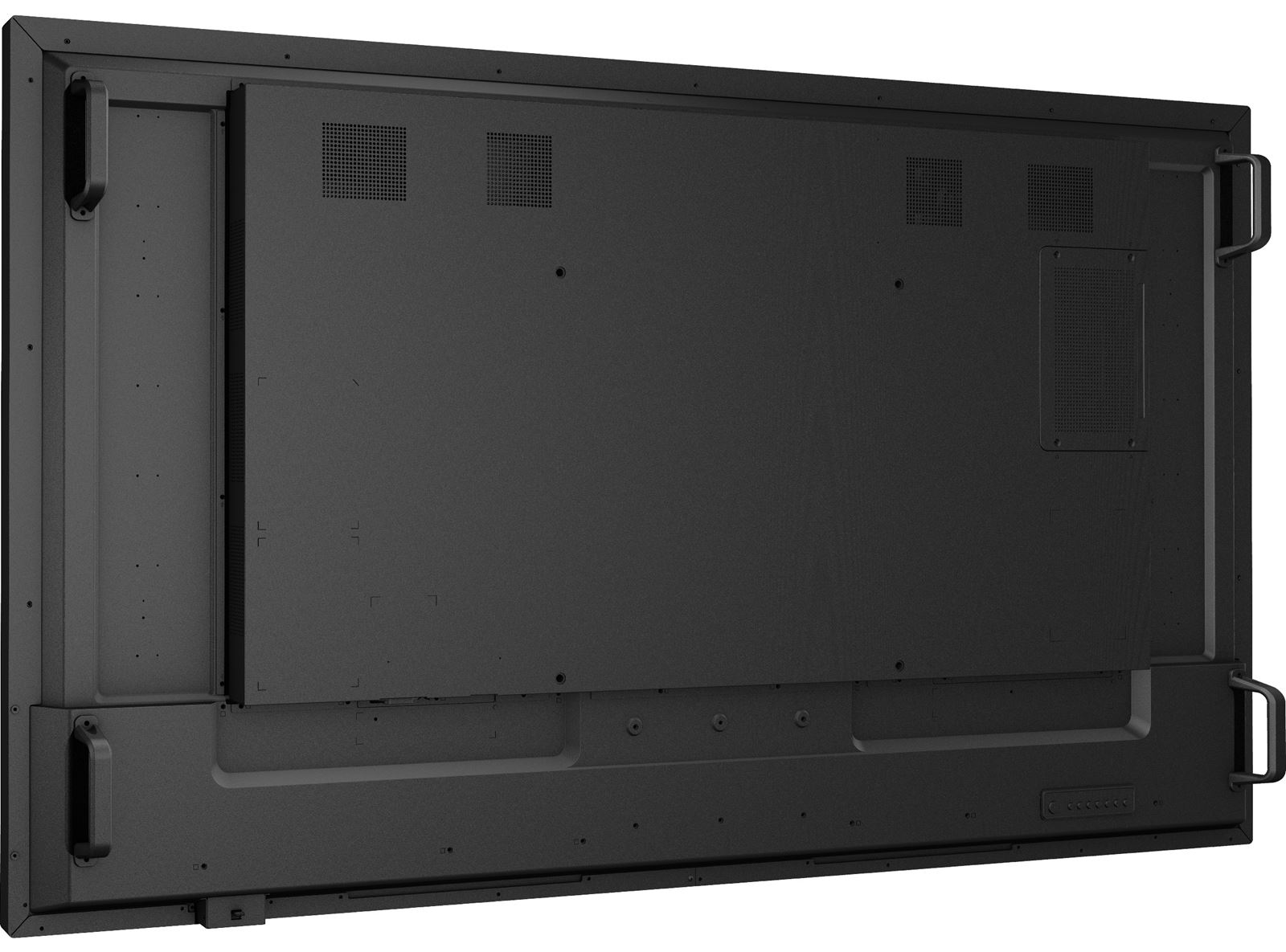

VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Operation temperature range (-°/+°) -20°C - 60°C
MTBF 50000 hours (excluding backlight)

ACCESSORIES INCLUDED

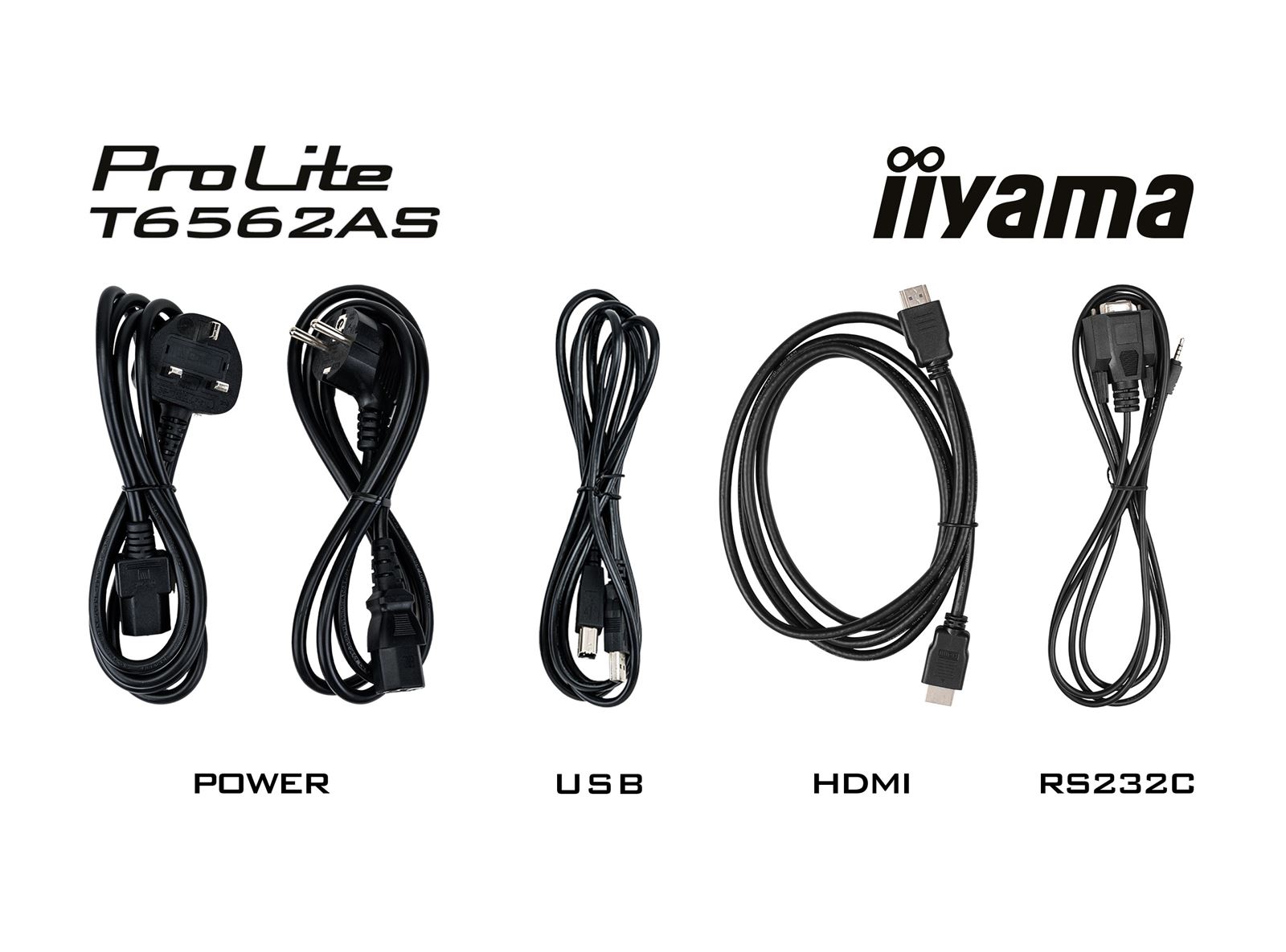

Cables power, USB, HDMI, RS-232c
Guides quick start guide, safety guide
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 165W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1485 x 860 x 71.8mm
Box dimensions W x H x D 1649 x 1021 x 223mm
Pallet dimensions W x H x D 1660 x 130 x 1140mm
Weight (without box) 38.4kg
Weight (with box) 46kg
EAN code 4948570120482
Features

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

4K

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

24/7

24/7 displays are designed for a continuous operation.



24/7

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Android OS
