iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function

Name: iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function
Brand: iiyama
SKU: TF1934MC-B7X
Price: 455.40 GBP
Availability: InStock

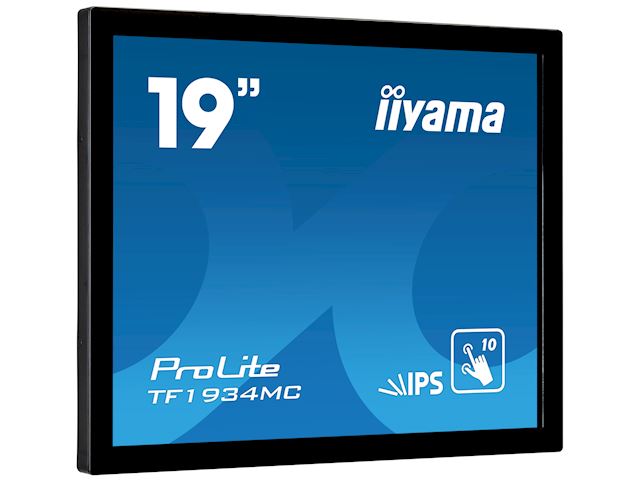

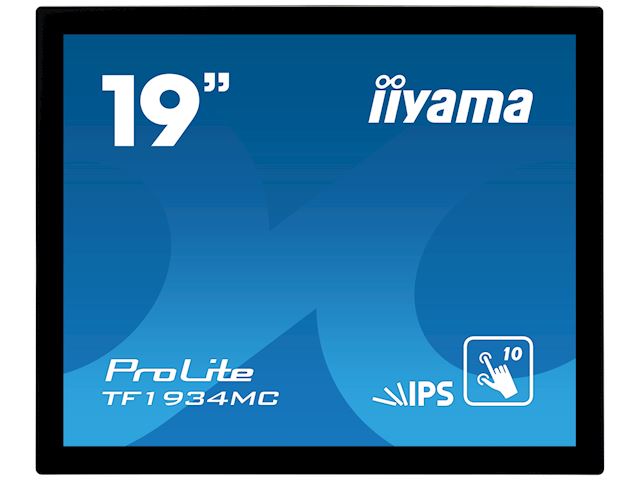

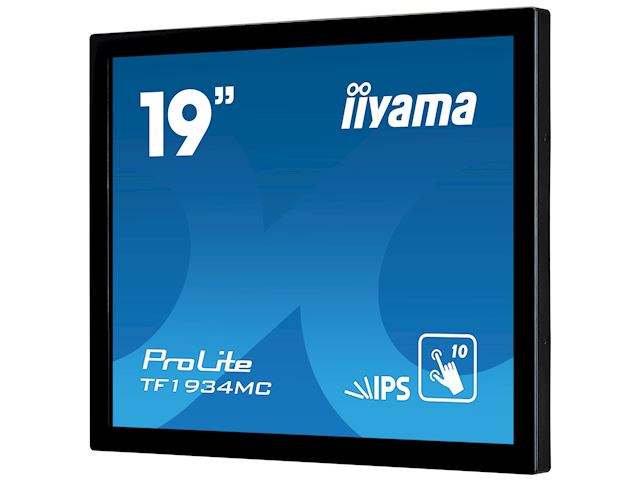

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 0

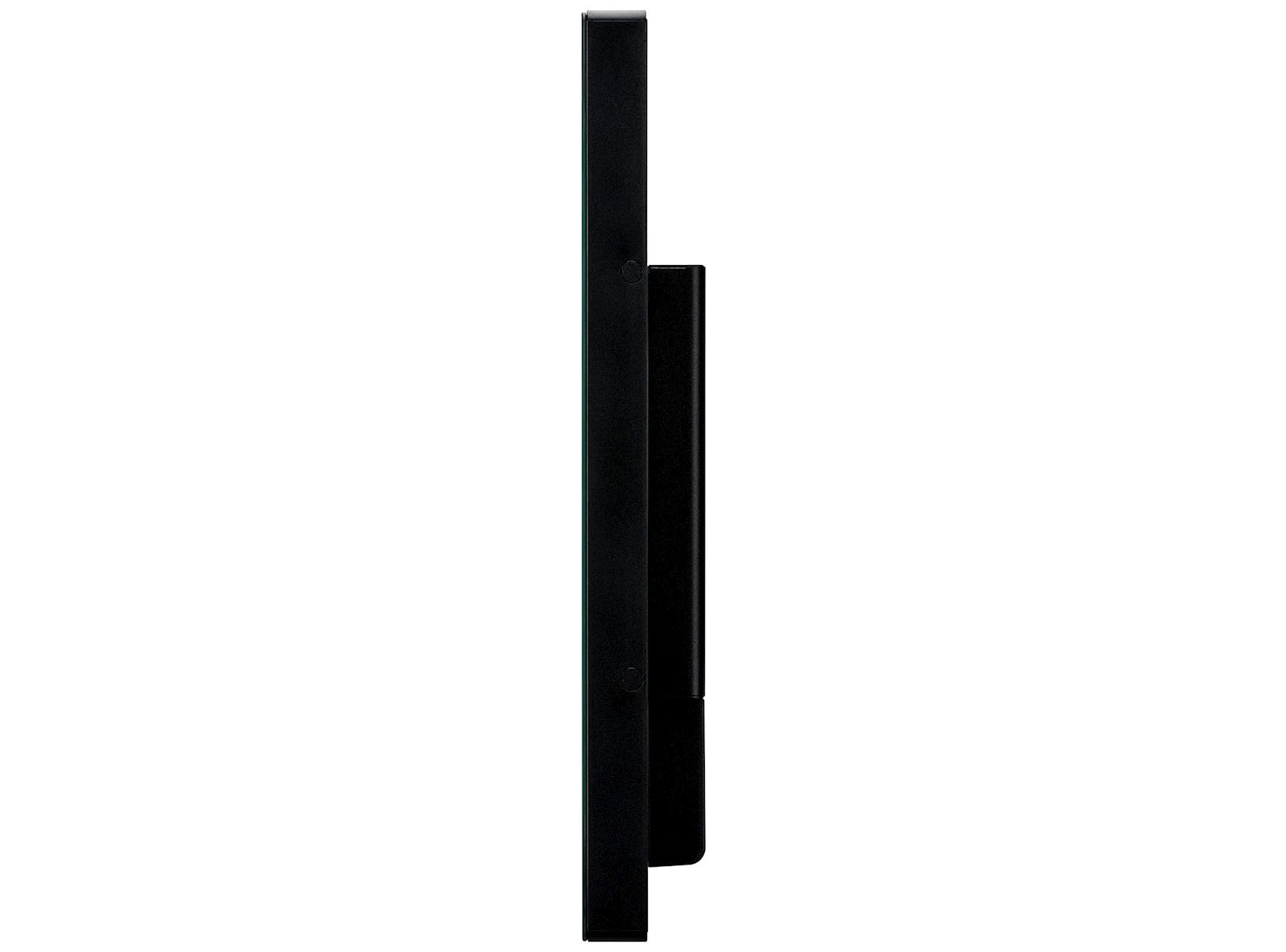

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 1

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 2

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 3

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 4

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 5

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function image 6

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 0

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 1

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 2

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 3

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 4

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 5

iiyama ProLite TF1934MC-B7X 19" Black, IPS, 5:4, 10pt touch, Projective Capacitive, touch through glass function thumbnail 6

£379.50 exc. VAT

£455.40 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TF1934MC-B7X

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

10pt touch Open Frame monitor with IPS panel and touch through glass function

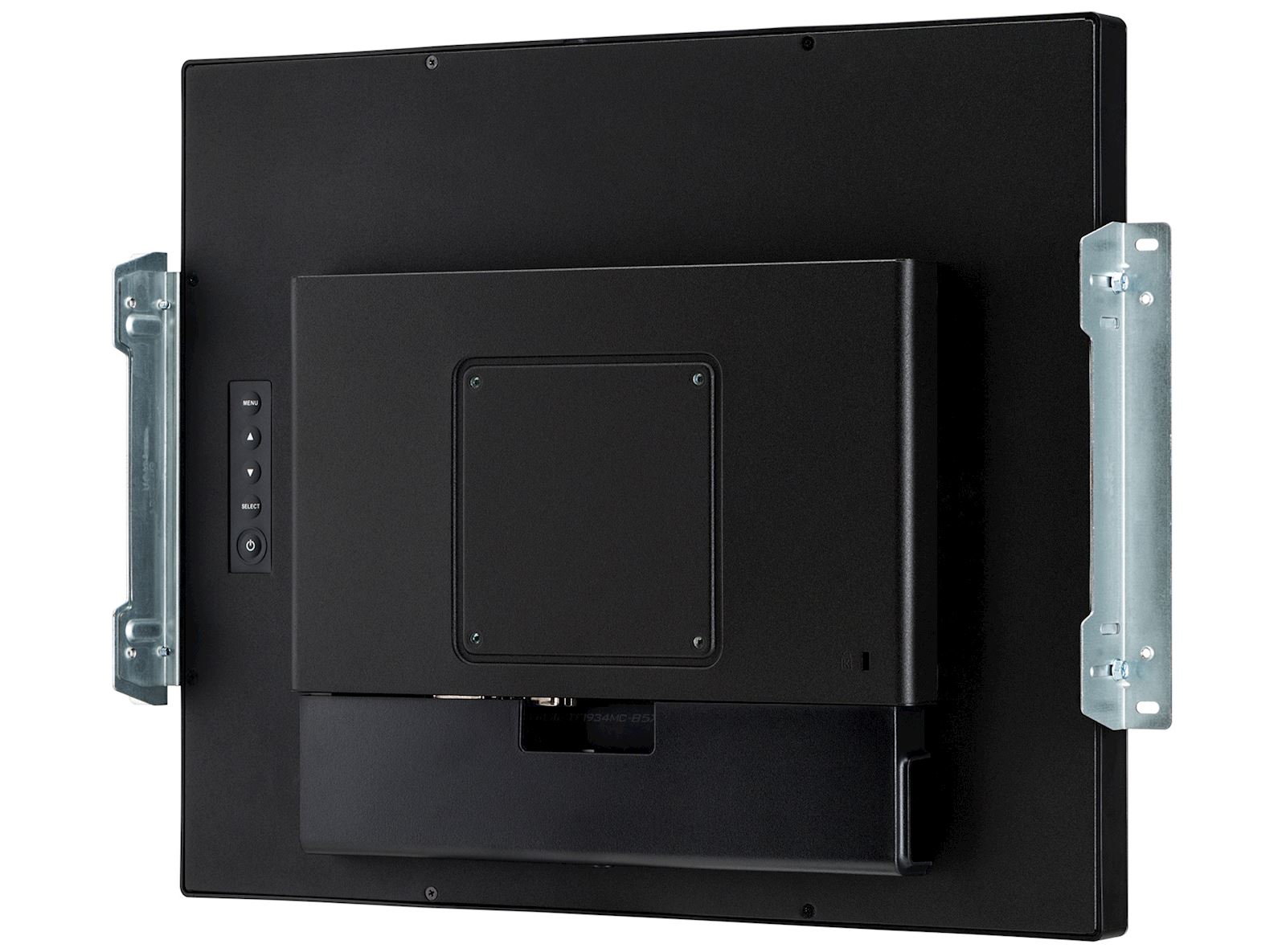

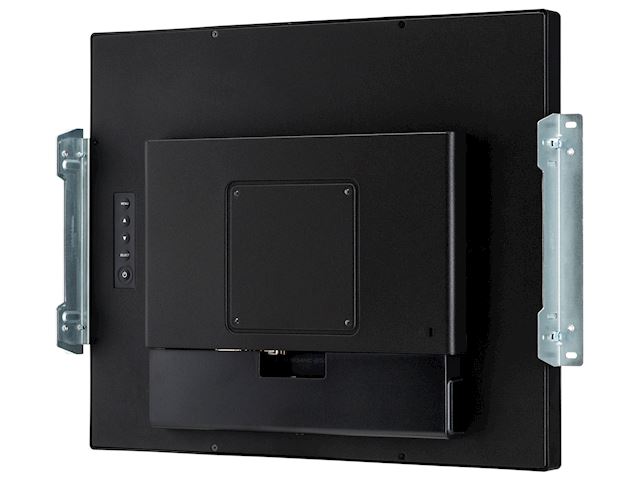

ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.

Technical Information

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	19", 48cm
Panel	IPS LED
Native resolution	1280 x 1024 (1.3 megapixel)
Aspect ratio	5:4
Brightness	350 cd/m² typical
Brightness	315 cd/m² with touch
Static contrast	1000:1 with touch
Light transmittance	90%
Response time	14ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync	31.4 - 80KHz
Vertical Sync	50 - 75Hz
Viewable area W x H	376.5 x 301.1mm, 14.8 x 11.9"
Pixel pitch	0.294mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

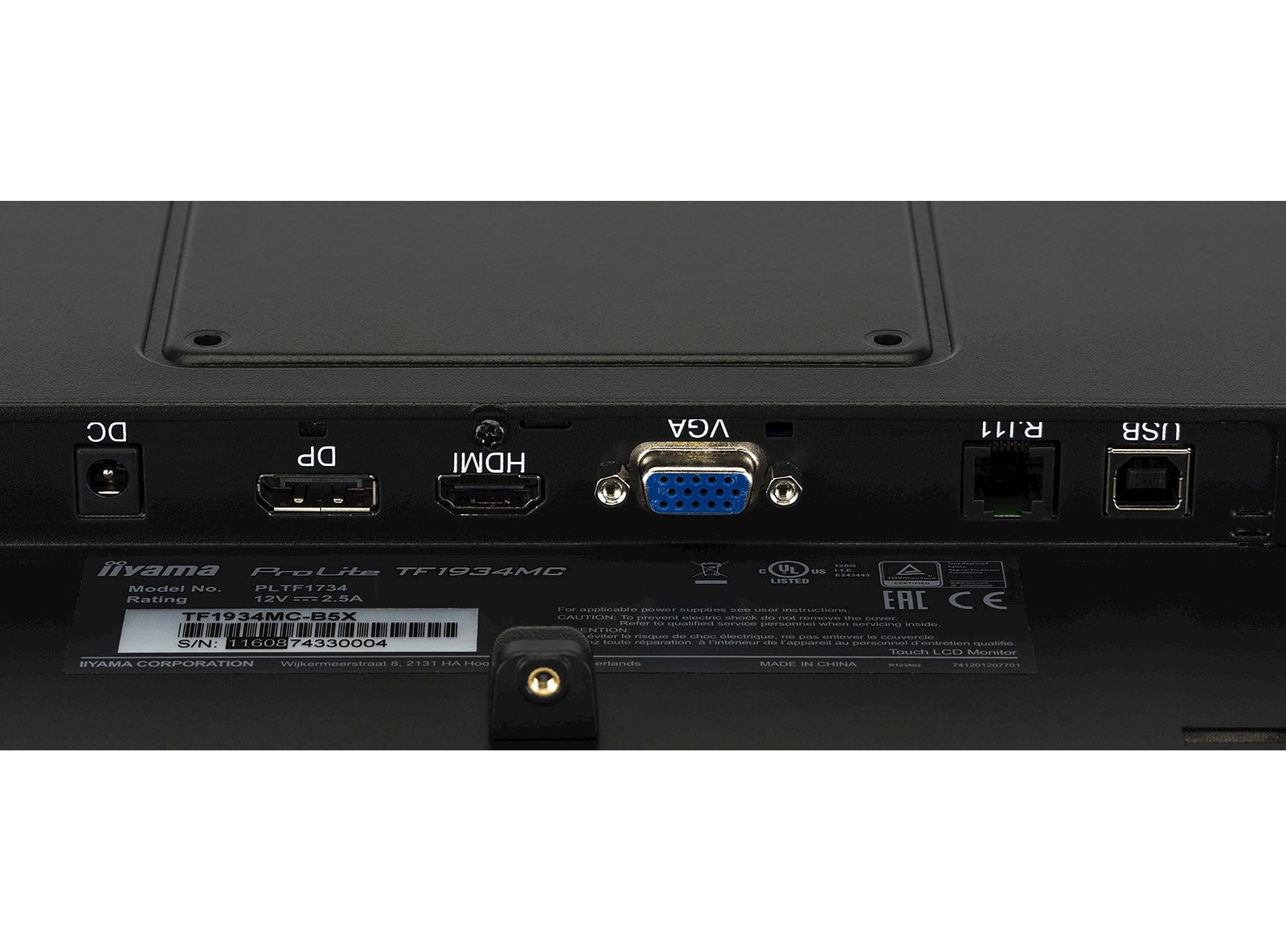

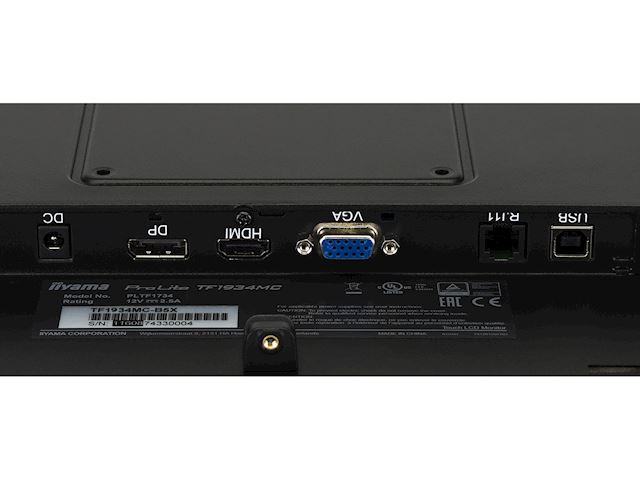

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, auto adjust, H.position, V.position, H.size, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up
VESA mounting	100 x 100mm

ACCESSORIES INCLUDED

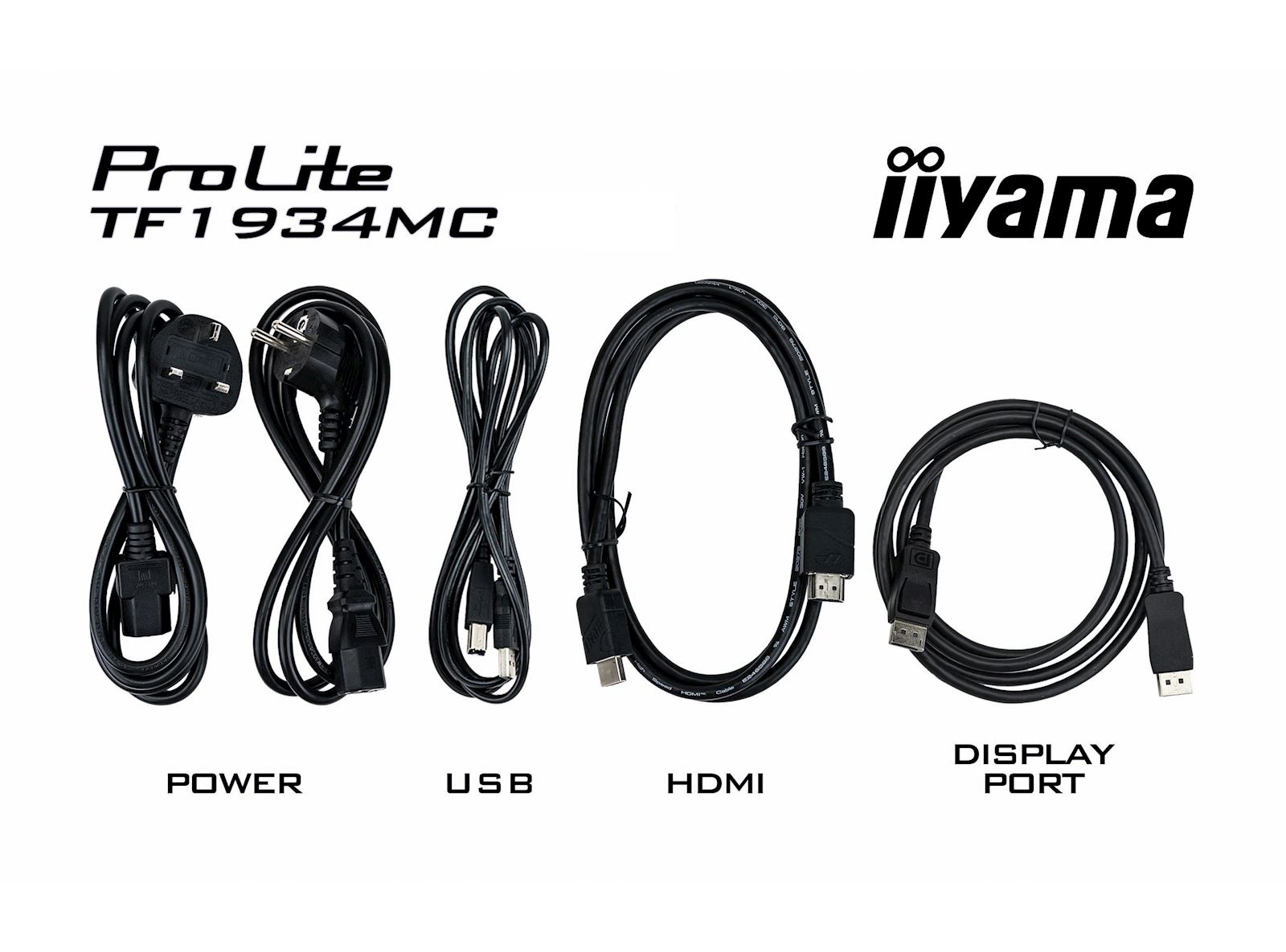

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, Touch Panel Driver Disk (CD-ROM)
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	21W typical, 2W stand by

SUSTAINABILITY

Regulations	CB, CE, TÜV-Bauart, CU, cULus
Other	REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	416 x 344 x 46.5mm
Weight (without box)	4.4kg
EAN code	4948570116843

Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

PROTECTIVE GLASS

The toughened safety glass fitted behind the bezel at 8H hardness rating is capable of resisting above normal impacts to the display making this LCD the ideal choice for Education, Retail and Industrial applications.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
