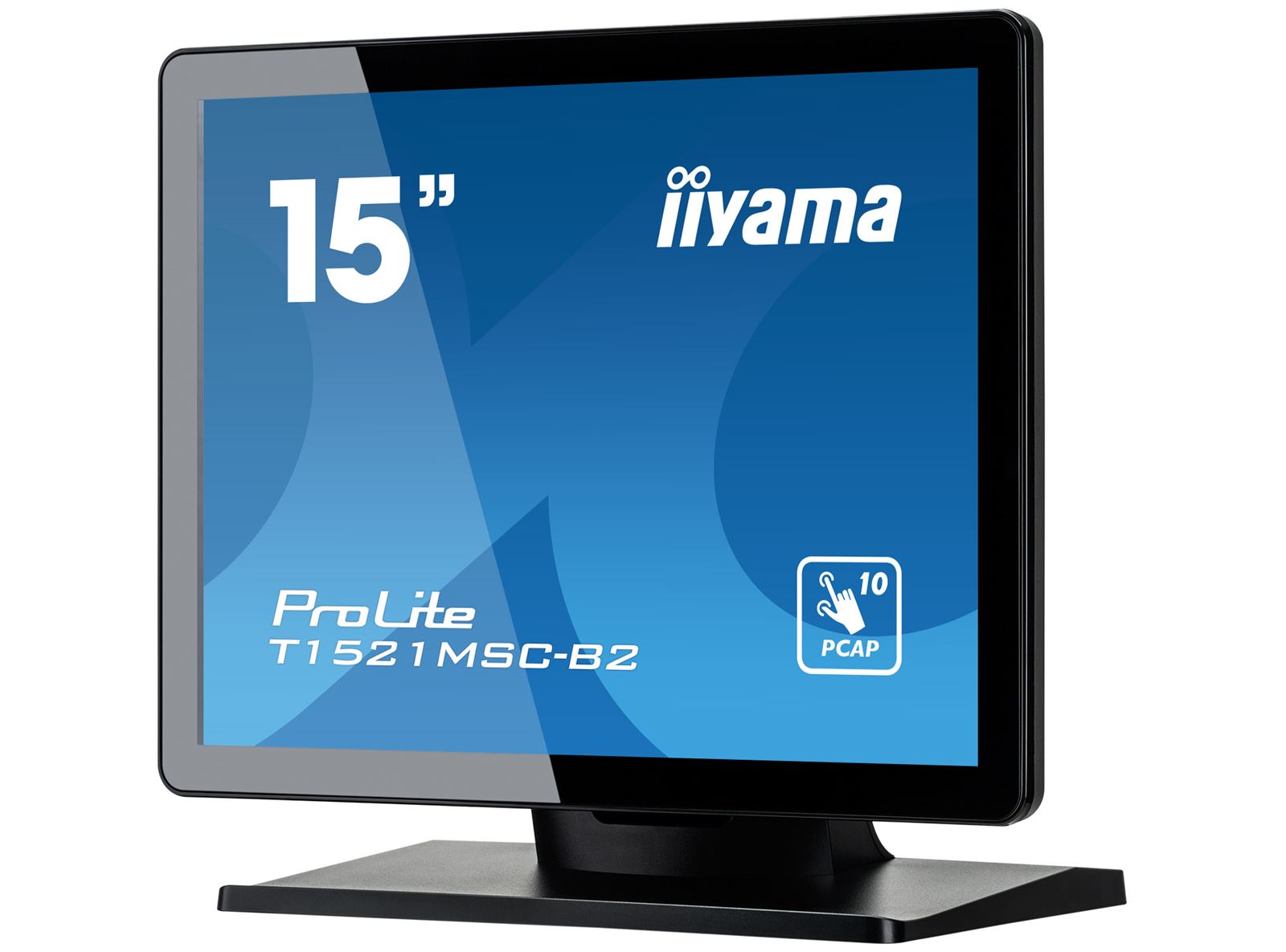

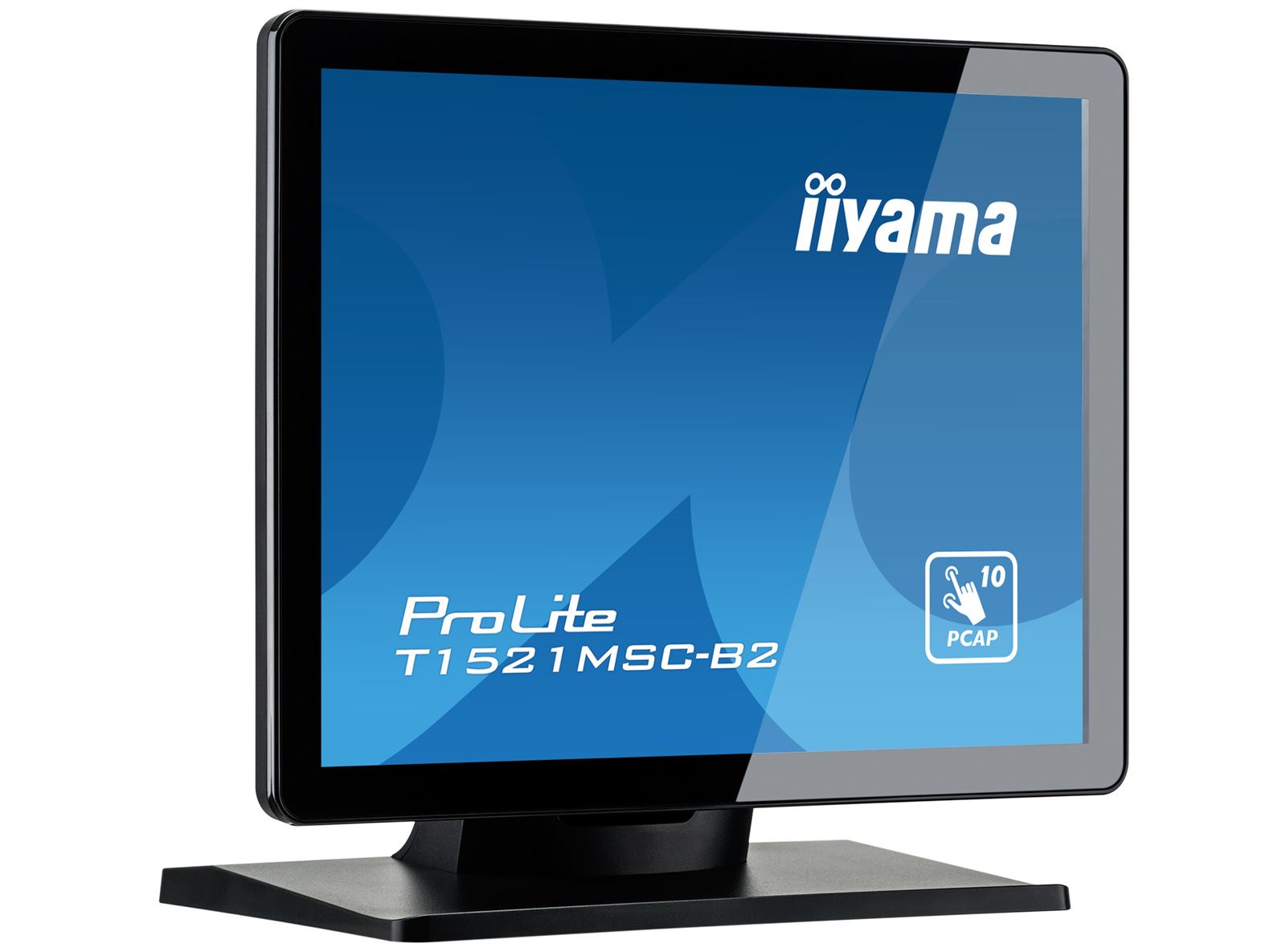

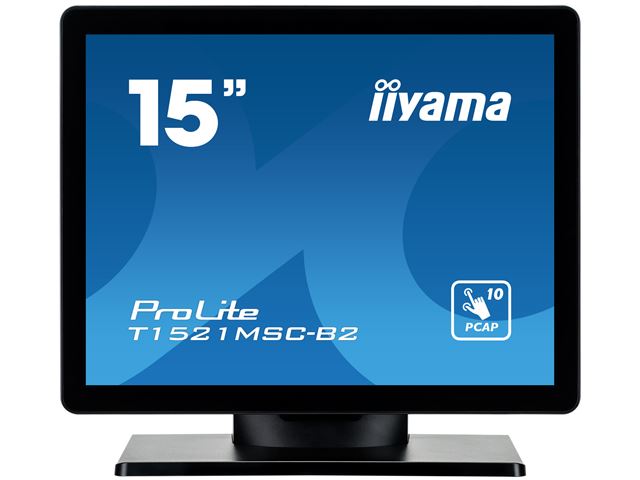

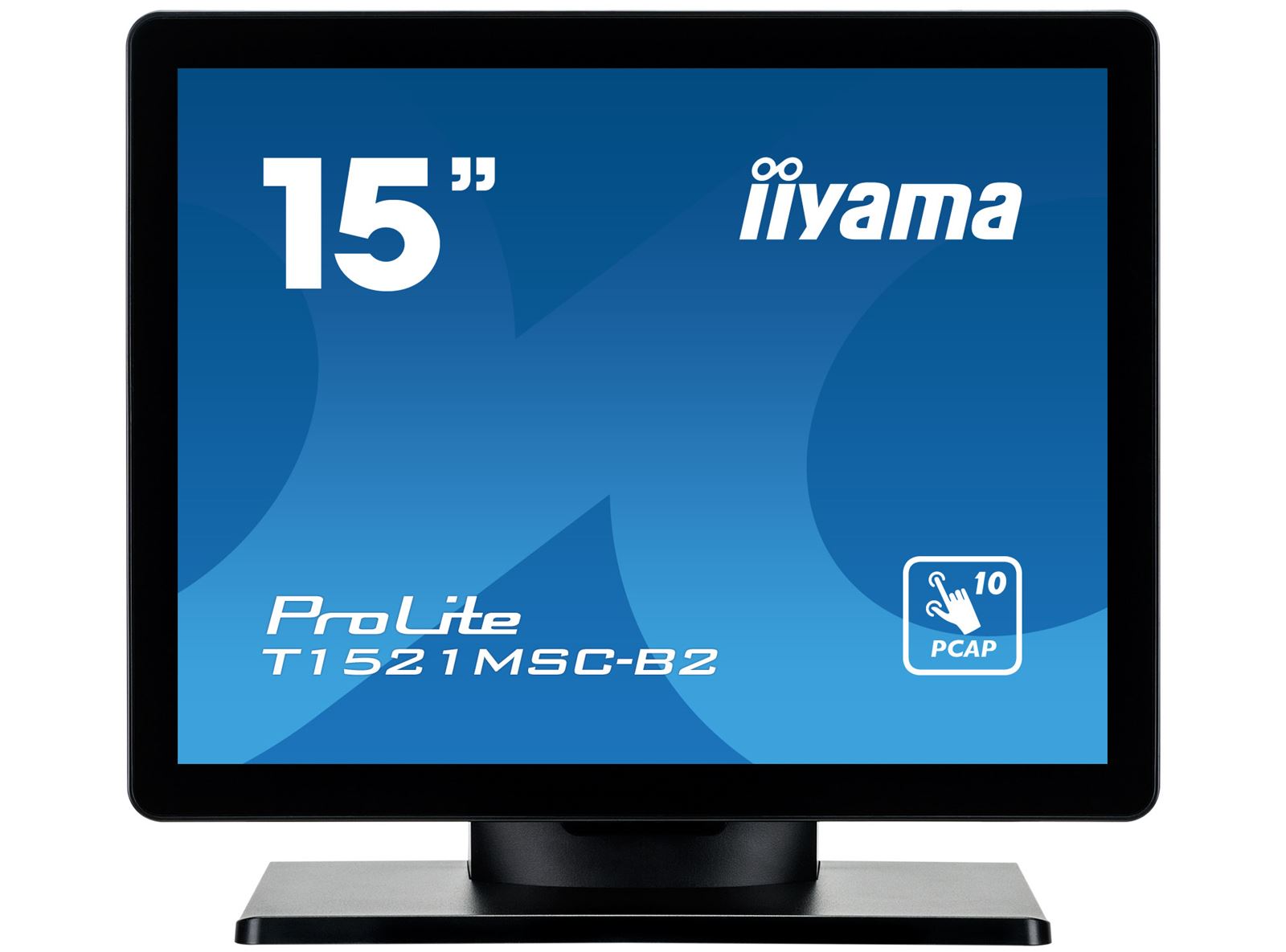

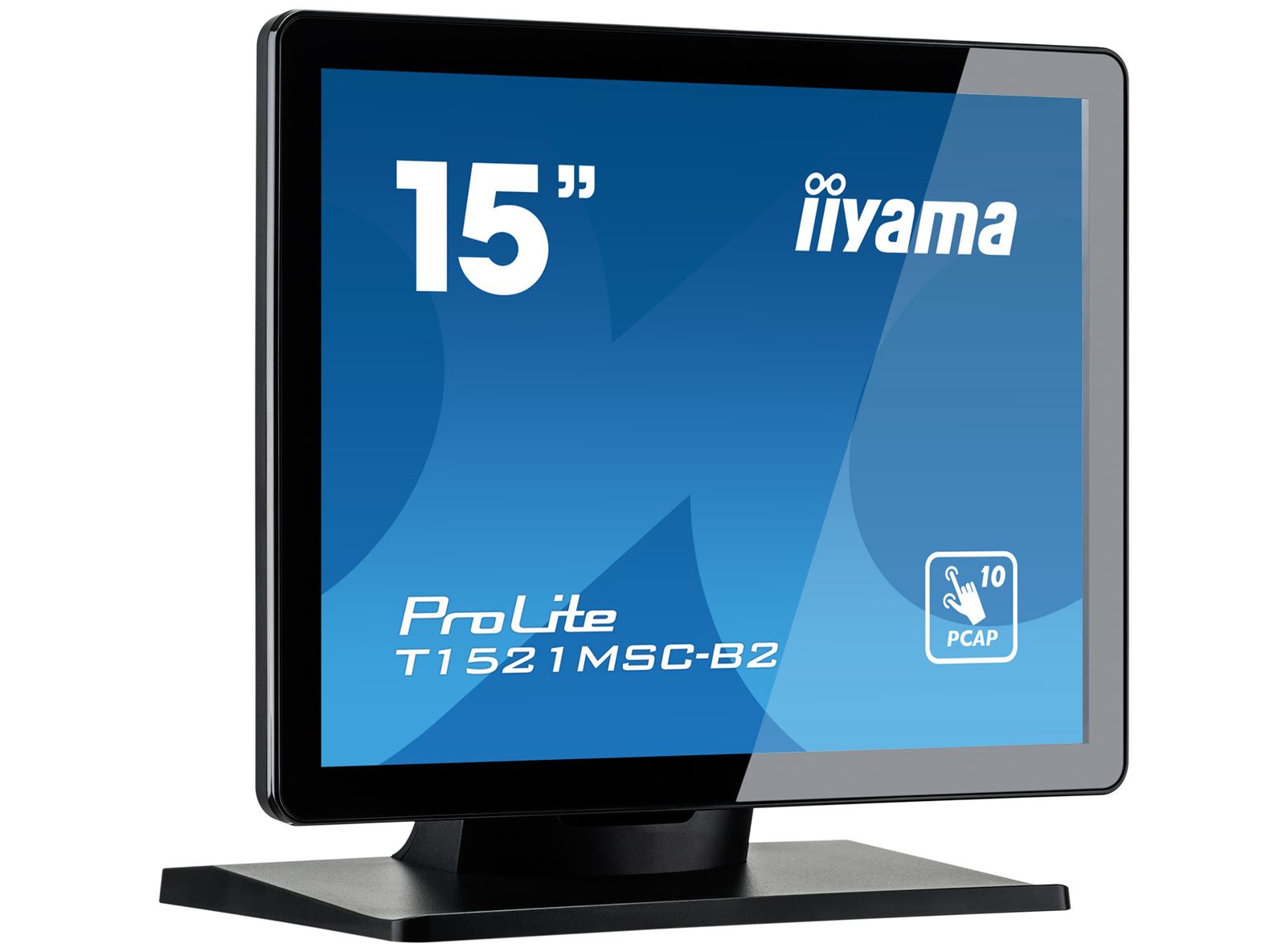

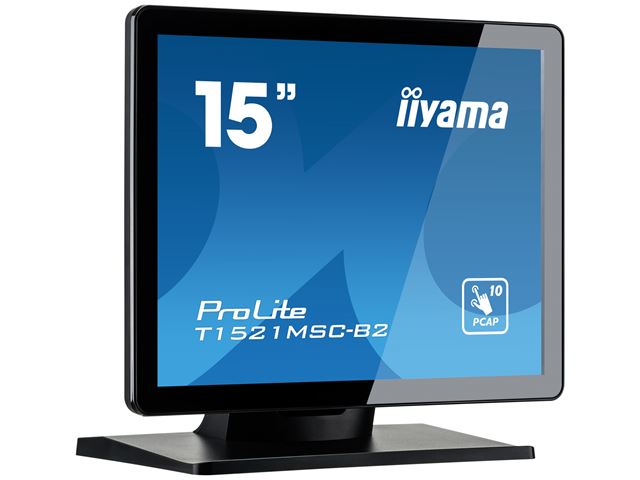

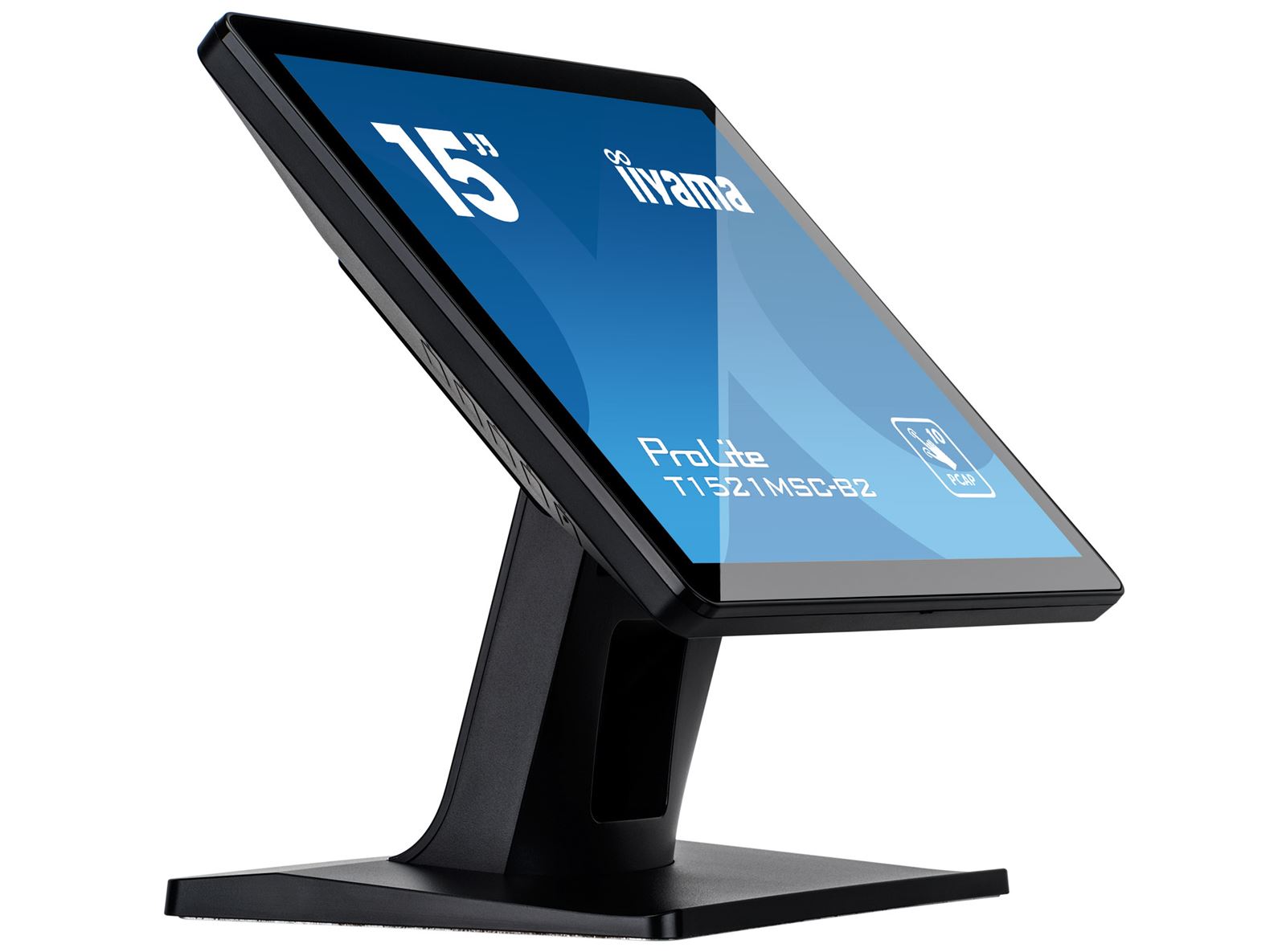

iiyama ProLite monitor T1521MSC-B2 15" Black, Projective Capacitive 10pt touch, glass overlay, scratch resistant, IP65

£244.16 exc. VAT
£292.99 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Send Back In Stock Notification

Brand: iiyama

Manufacturer Code: T1521MSC-B2

Product Description

15" Projective Capacitive 10pt touchscreen

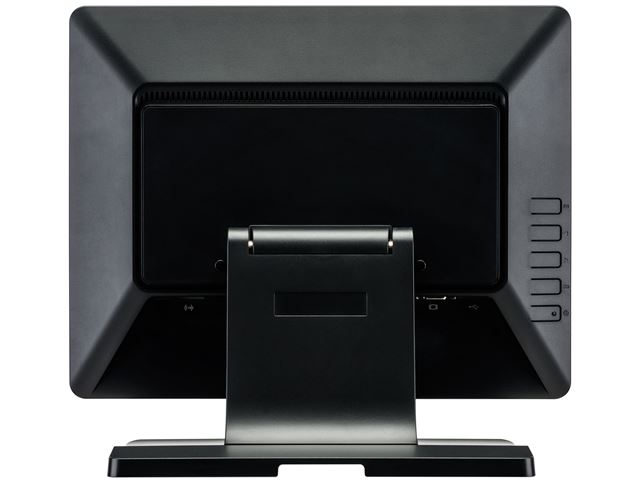

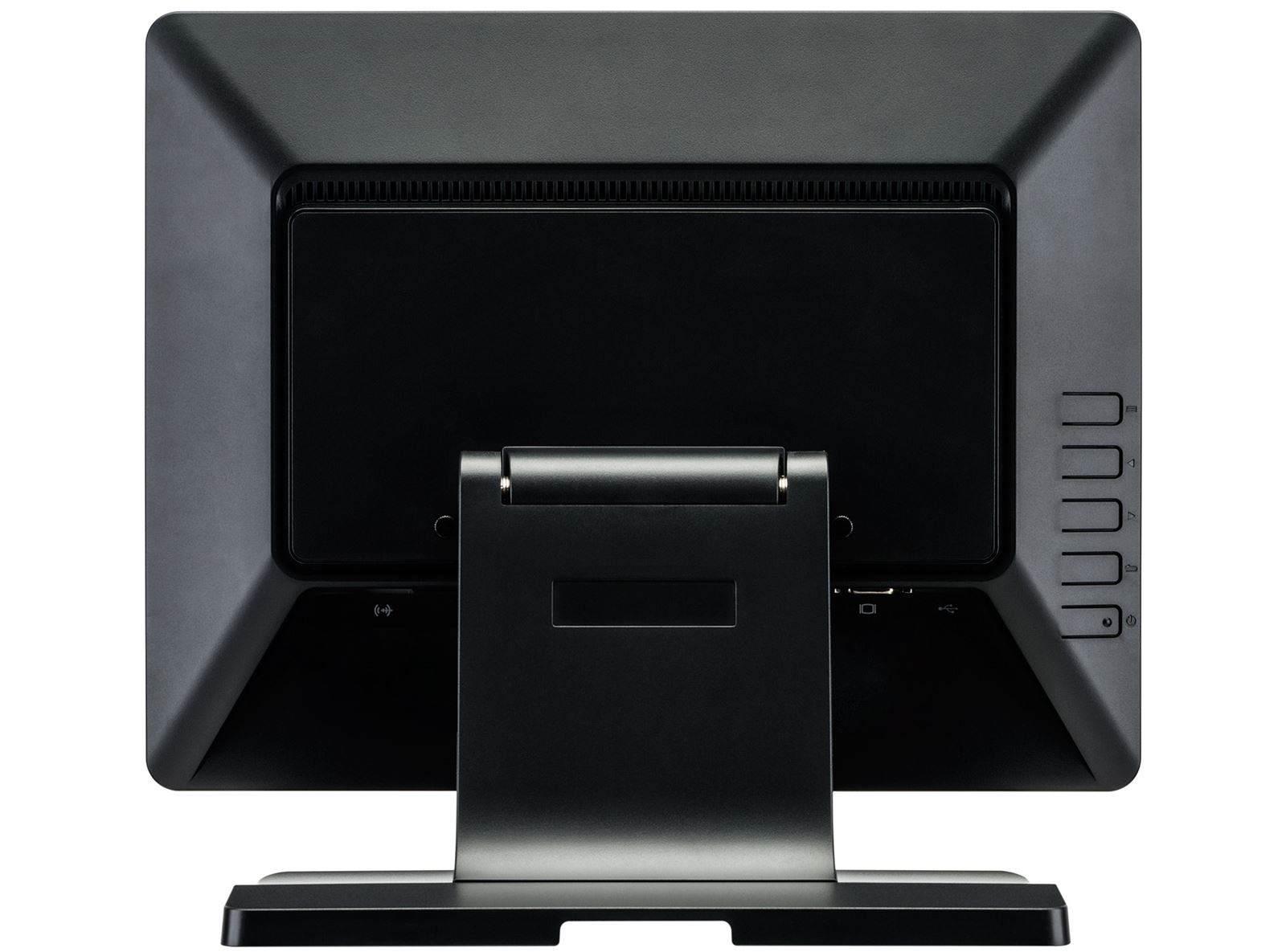

The ProLite T1521MSC-B2 15” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 70 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass
Diagonal 15", 38cm
Panel TN
Native resolution 1024 x 768 (0.8 megapixel)
Aspect ratio 4:3
Panel brightness 370 cd/m²
Brightness 325 cd/m² with touch
Light transmittance 88%
Static contrast 800:1
Response time (BTB) 8ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln
Horizontal Sync 31.4 - 60kHz
Viewable area W x H 304 x 228mm
Pixel pitch 0.297mm
Bezel colour and finish black, matte

 TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

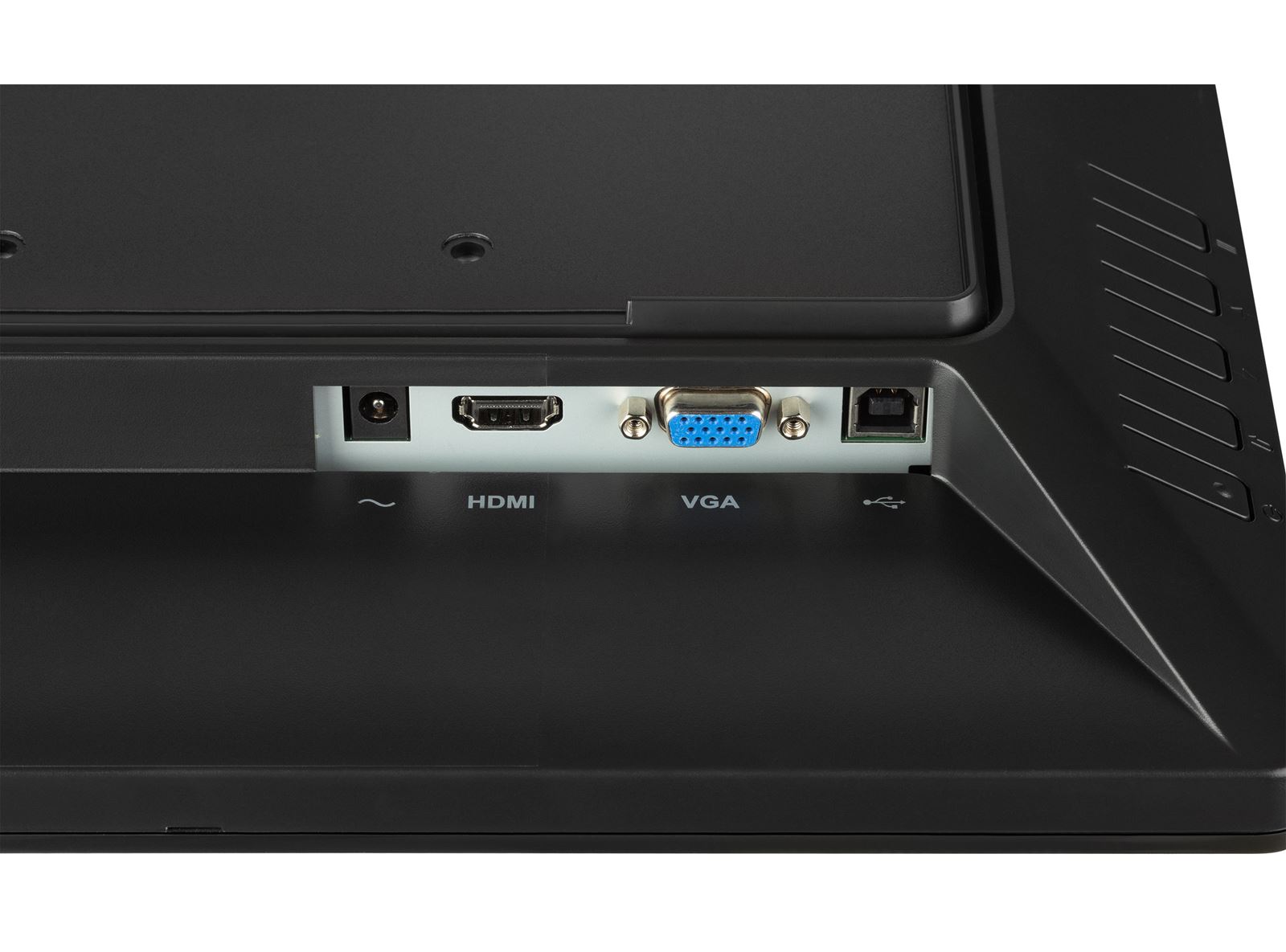

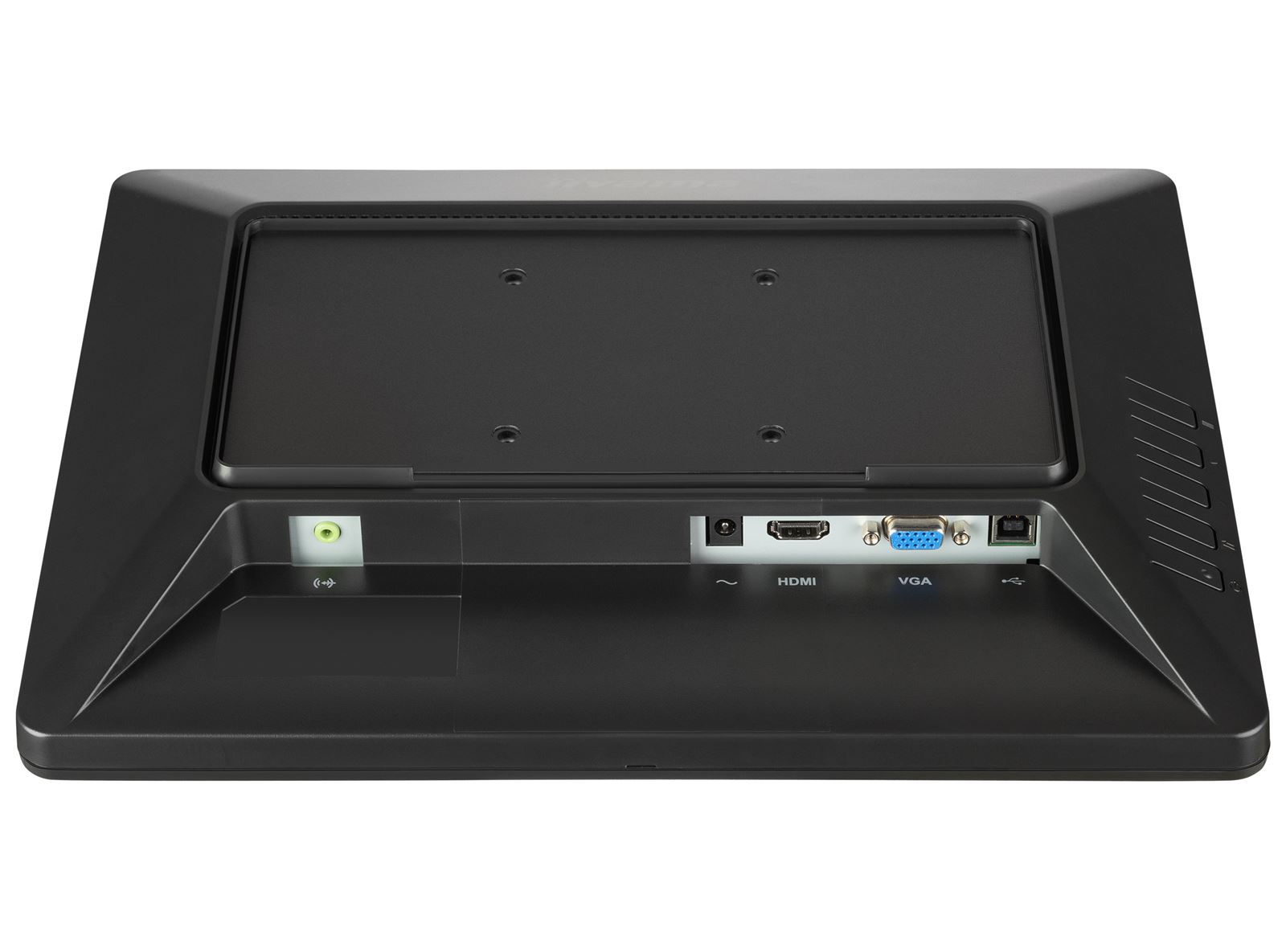

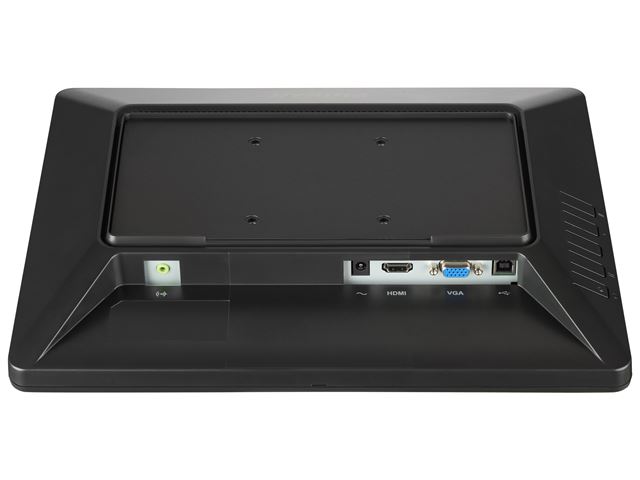

 INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1

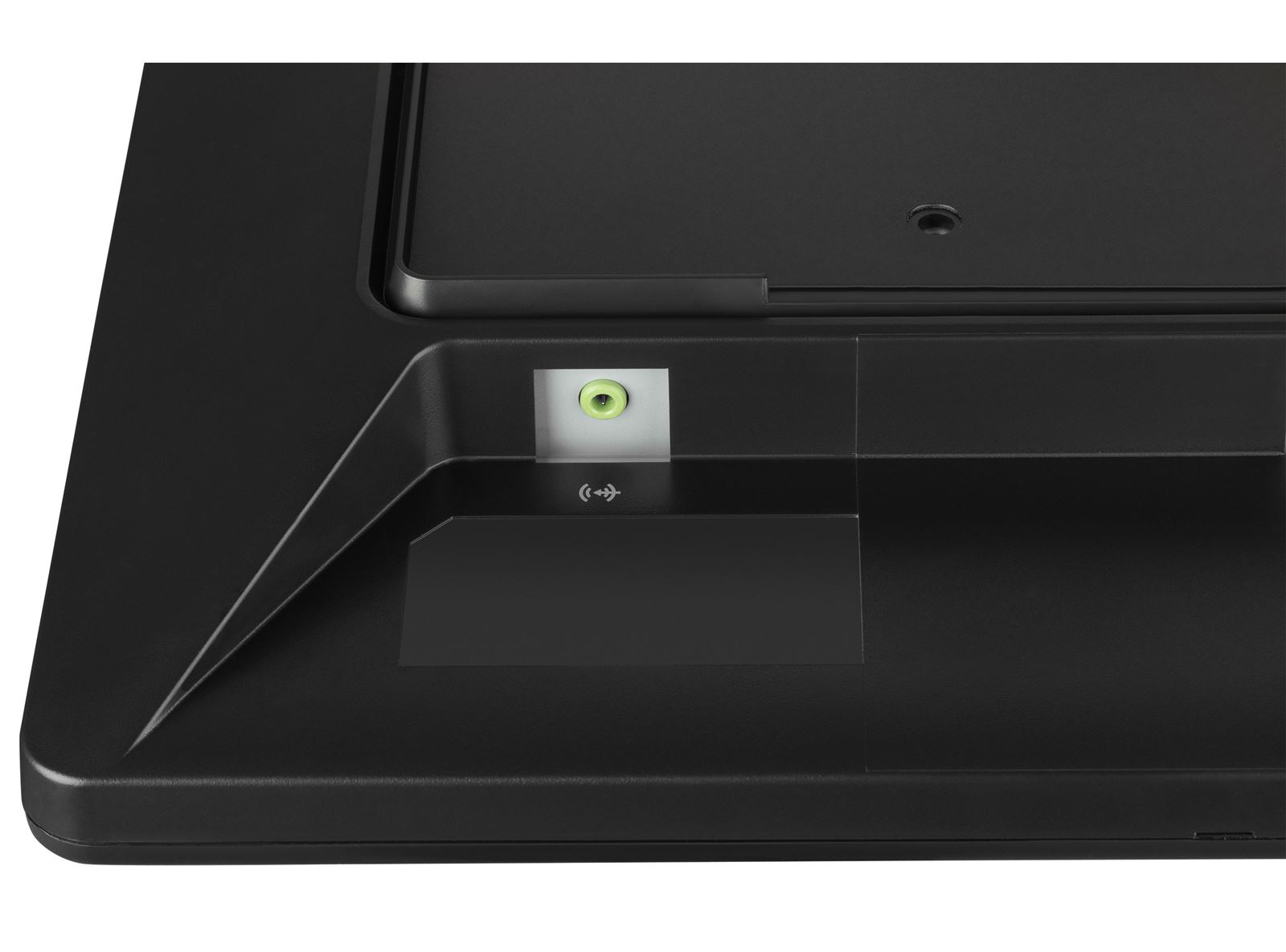

Audio output Speakers 2 x 2W

 FEATURES

Glass thickness 1.2mm
Glass hardness 7H
Water and dust protection IP65 (front)
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, RU, JP, NL
Control buttons Menu, Up/Left auto adjustment button, Down/Right button, Return/Exit button, Power
User controls picture (backlight, brightness, contrast, sharpness), display (auto adjustment, H position, V position, pixel clock, phase), color (color temp, picture mode), input, audio (volume, mute), other (reset, OSD time, OSD H position, OSD V position, language), information
Plug&Play DDC2B

 MECHANICAL

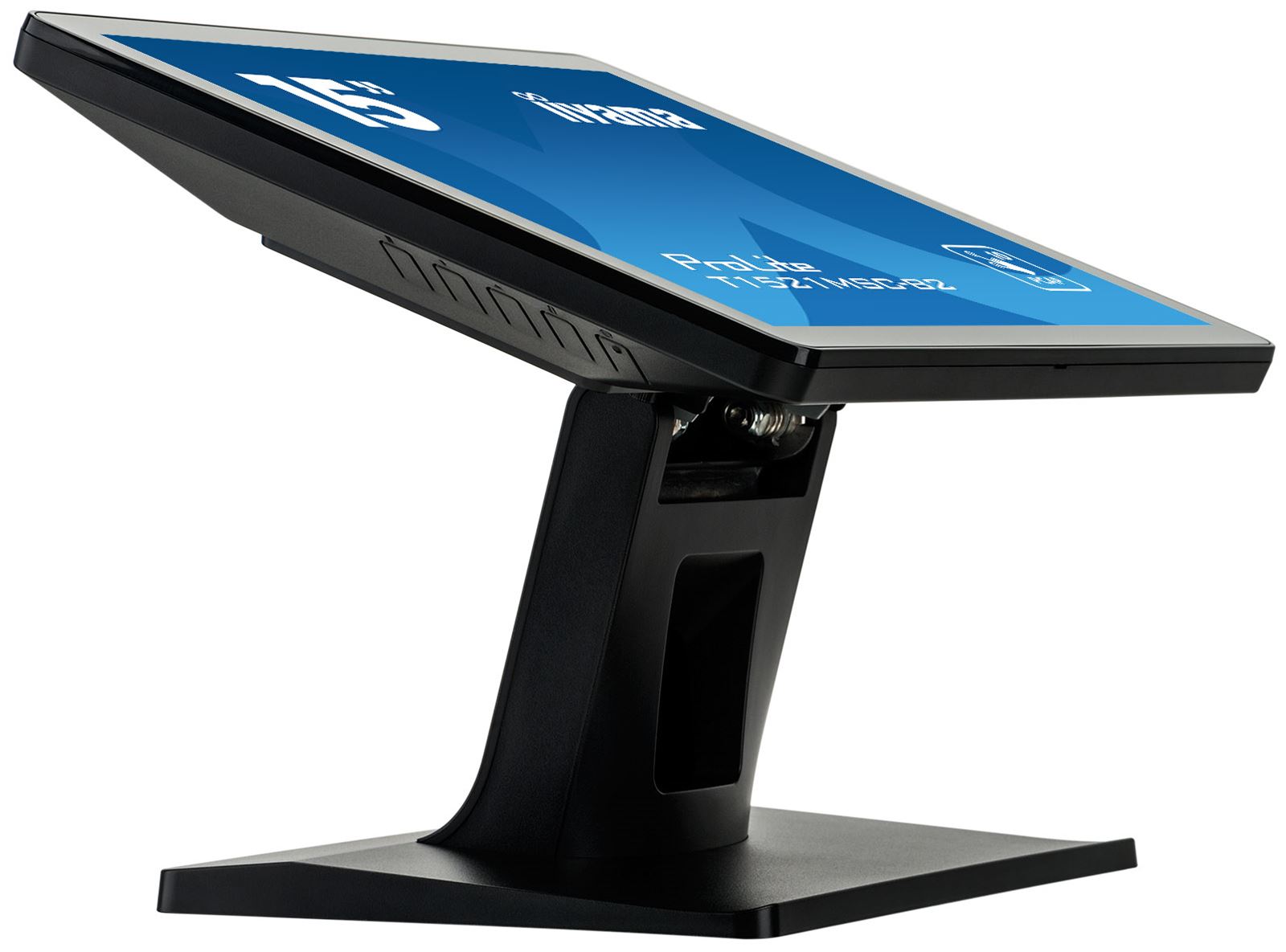

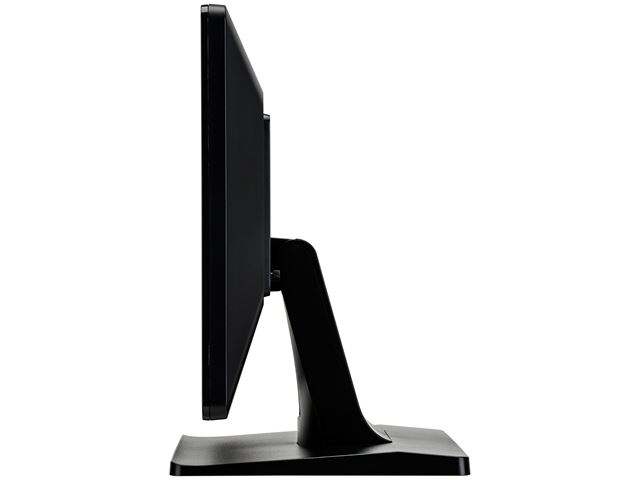

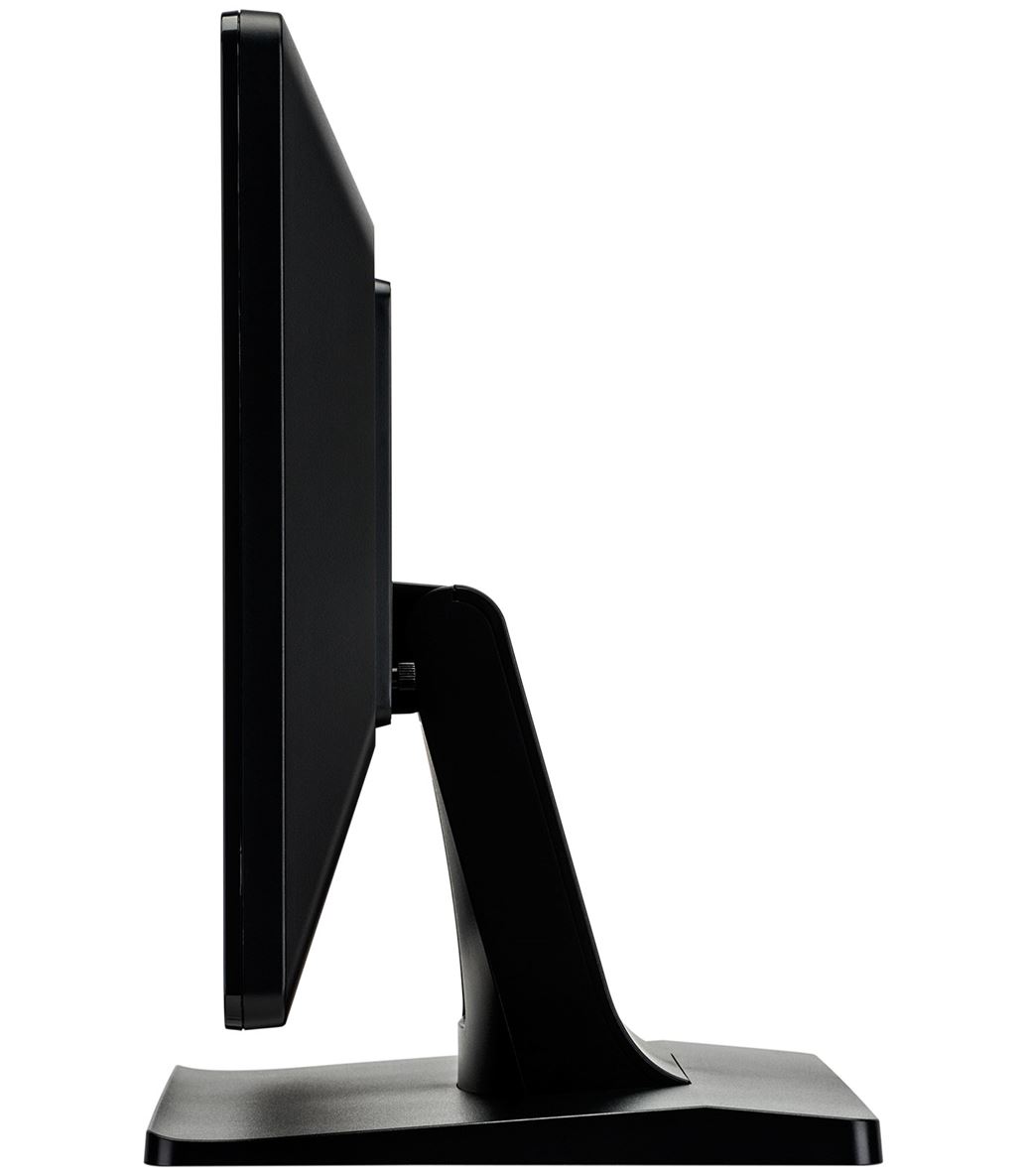

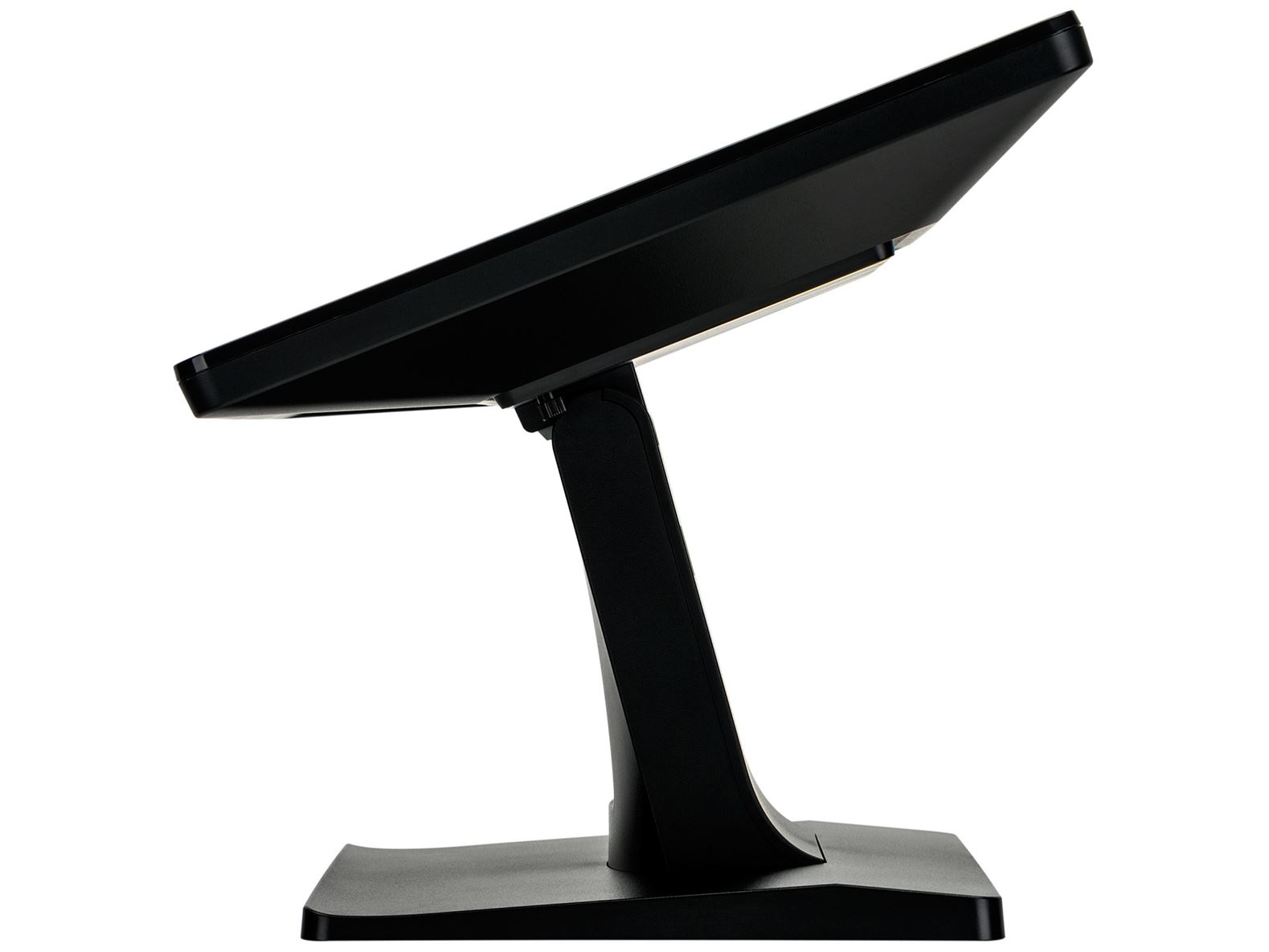

Tilt angle 70° up; 10° down

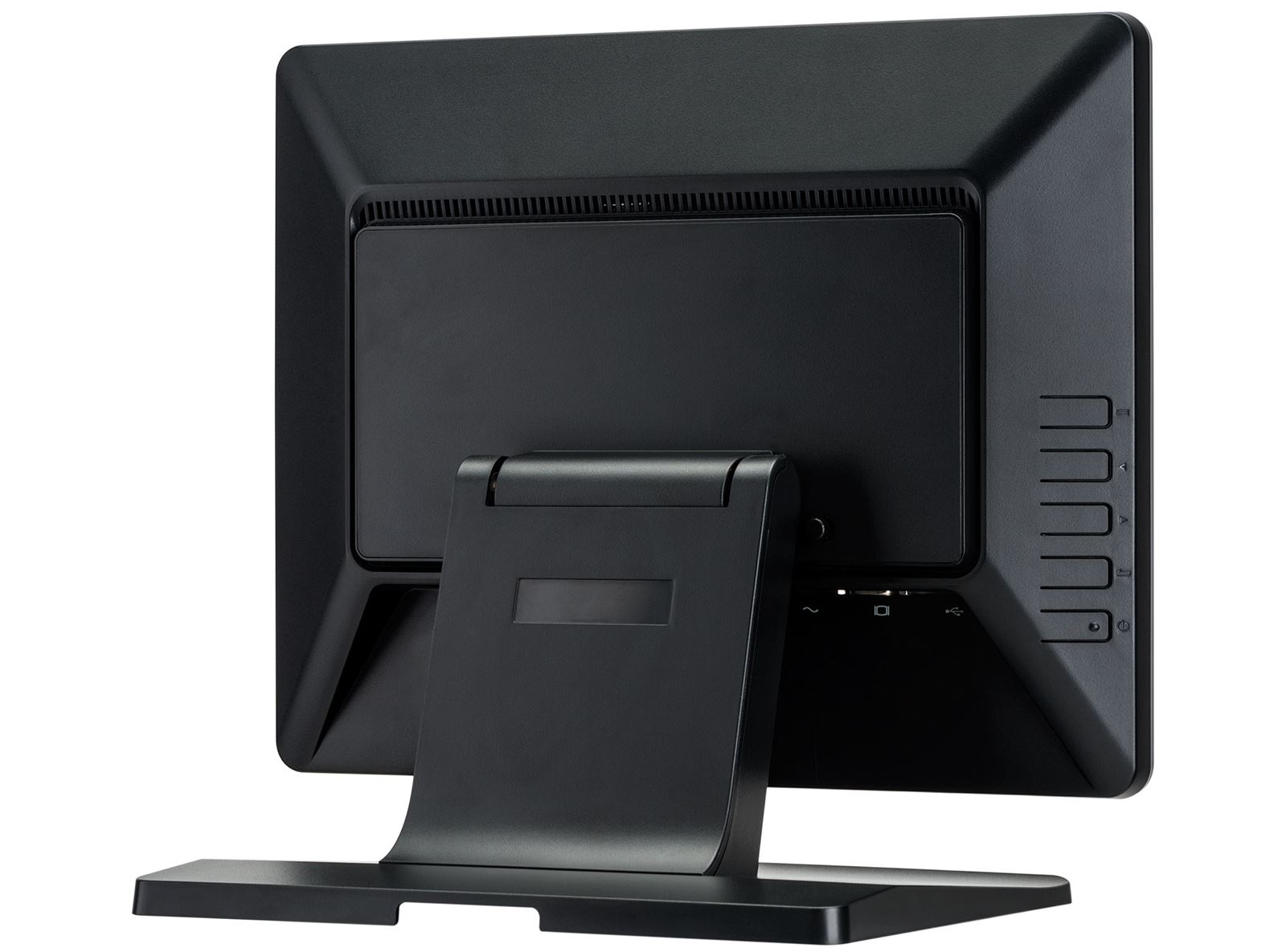

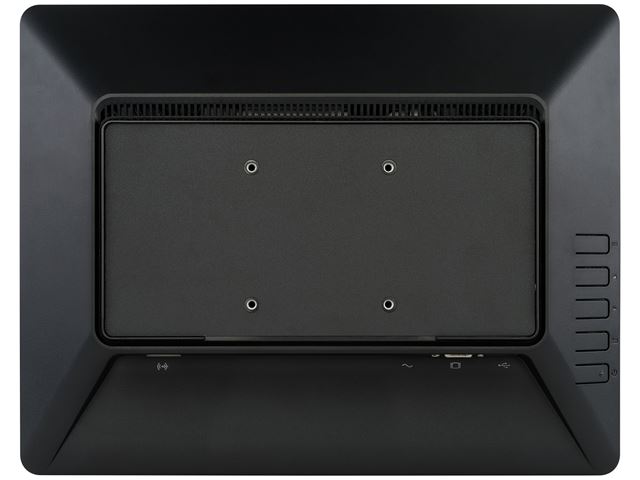

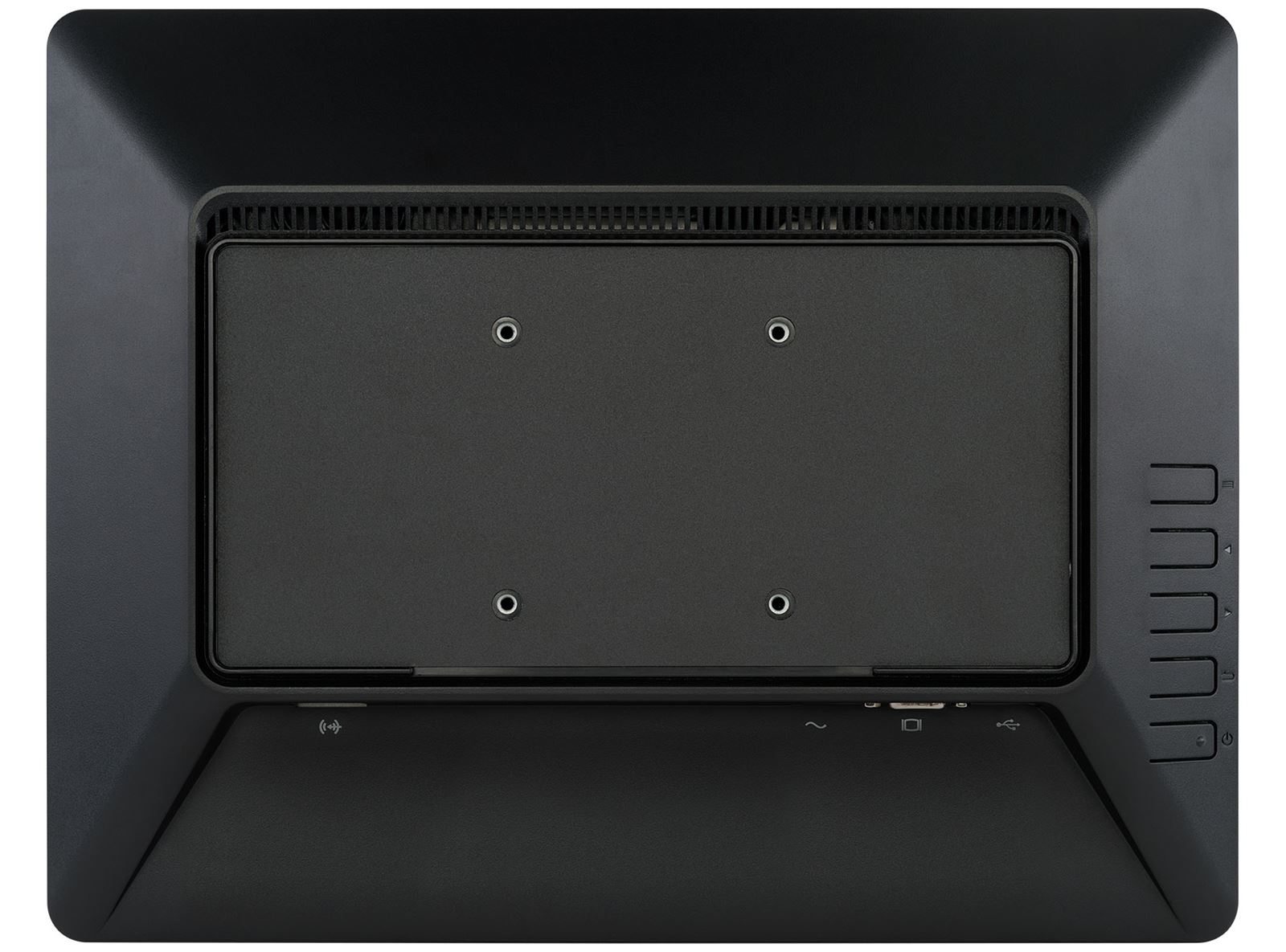

VESA mounting 75 x 75mm
Cable management system yes

 ACCESSORIES INCLUDED

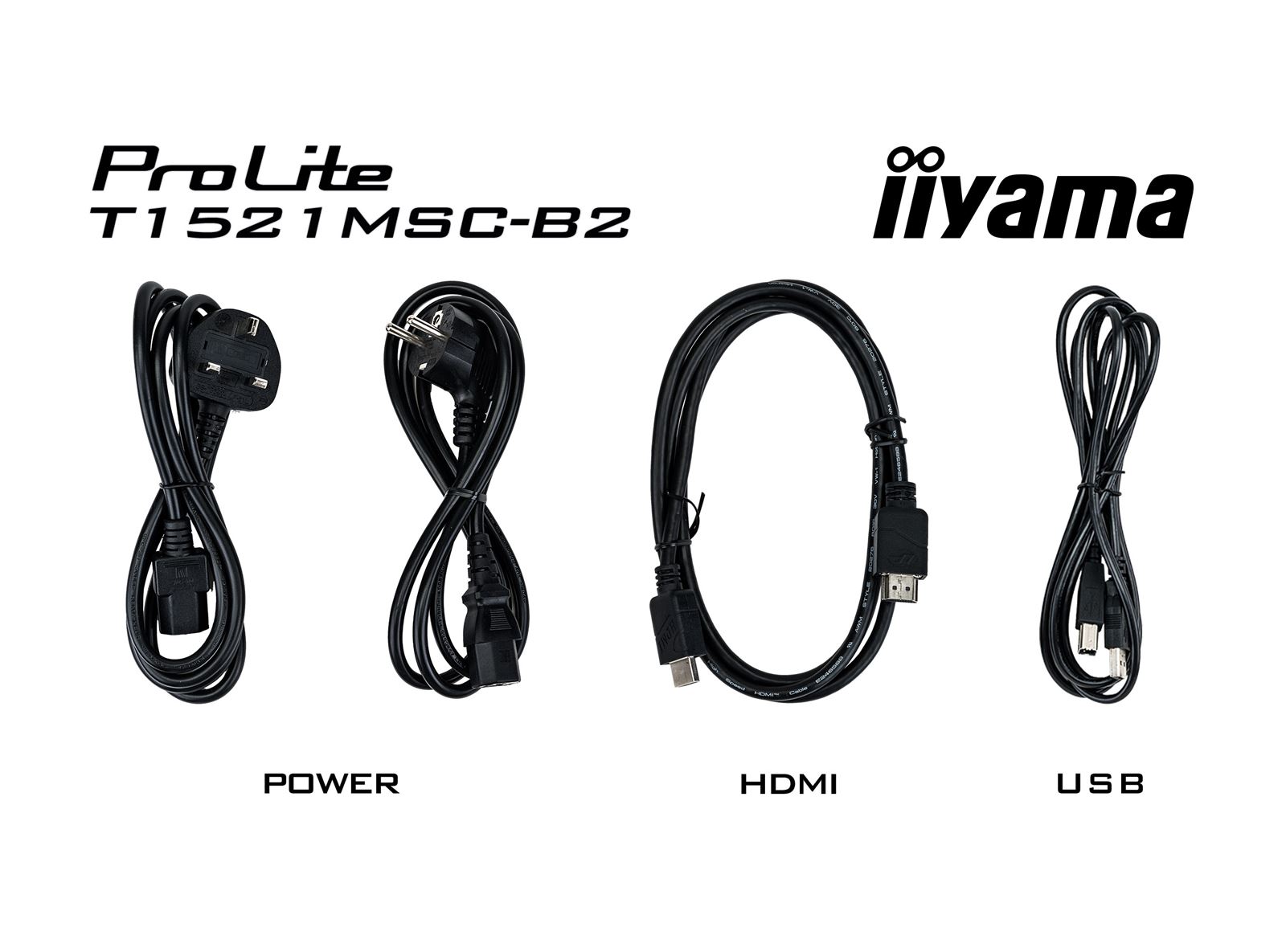

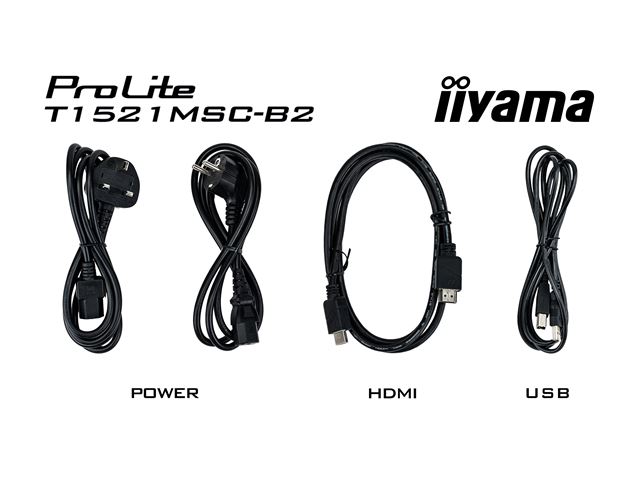

Cables power, USB, HDMI
Guides quick start guide, safety guide

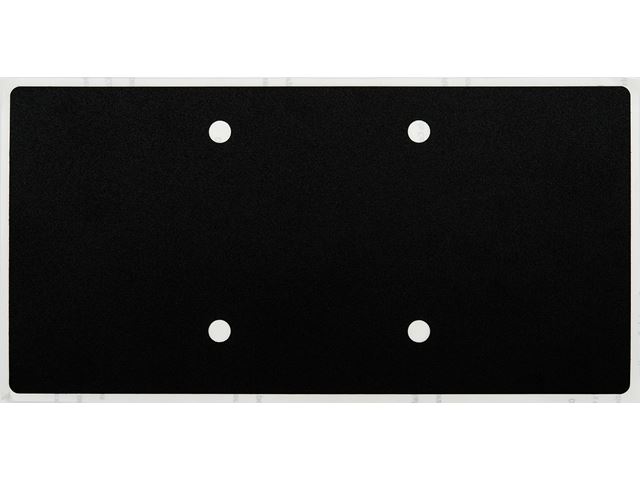

Other AC adapter, mylar sheet (for VESA mount)

 POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 16W typical, 1.5W stand by, 0.5W off mode

 SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 340.5 x 308 x 198mm
Weight (without box) 3.5kg
EAN code 4948570120642
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.


IP

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE
